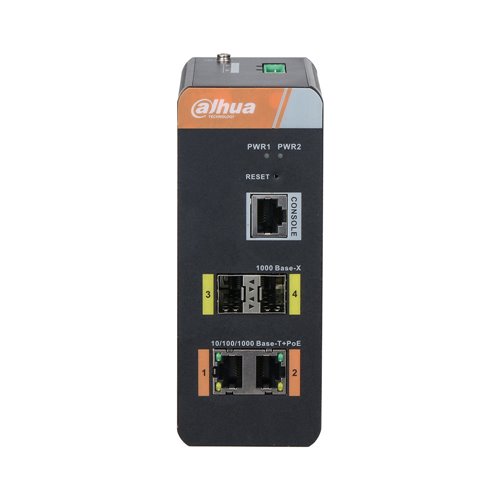

PFS4204-2GT-DP - Industrial Managed PoE Switch (L2)…

features

    Managed PoE Switch L2
    2 Gigabit Ethernet ports + 2 Gigabit SFP ports
    Supports VLAN and port aggregation
    Supports STP, RSTP, MSTP and ERPS
    WEB, CLI and SNMP management support


specs

    2 10/100/1000 Base-T RJ45 PoE ports
    2 SFP ports (100/1000 Base-X)
    Supports ring network redundancy using standard STP / RSTP / MSTP / ERPS protocol
    1 console port for debugging (115200bps)
    PoE consumption: ≤60W per port, ≤120W in total
    PoE protocols: IEEE802.3af (PoE), IEEE802.3at (PoE +), Hi-PoE
    Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ad
    14Gbps switching capacity
    5.95Mpps packet transfer rate
    Packet buffer memory: 1.75MB
    MAC addresses: 4K
    Static MAC addresses: 256
    Up to 4000 VLAN
    VLAN: 802.1Q
    Flow control: Full-Duplex based on IEEE802.3X
    Port Aggregation: Manual and LACP
    Supports one-to-one and many-to-one port mirroring
    Multicast: Supports IGMP Snooping
    Supports DHCP Server, DHCP Client, and DHCP Snooping
    Security: IEEE802.1x, supports ACL and loop protection
    Each port supports 8 rows of QoS output
    Power supply: 9V ~ 57V DC
    PoE: 48V ~ 57V
    Maximum consumption: ≤120W
    Extended operating temperature: -40 ° C ~ + 75 ° C
    10% ~ 90% humidity
    Lightning-proof 6KV (common), 4KV (differential)
    Dimensions: 103.2 x 135 x 53.5 mm
    Weight: 600g
    DIN rail mounting
