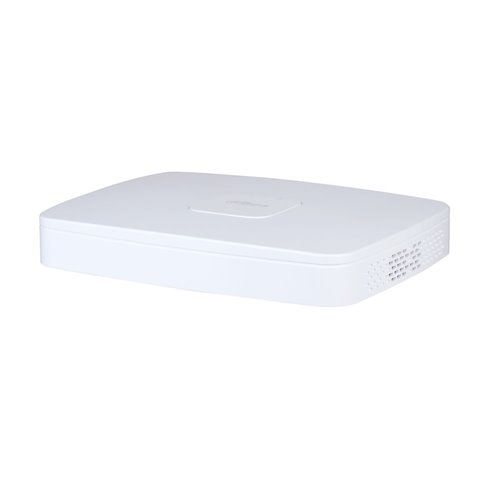

DHI-NVR2108-8P-I - Dahua 8 channel 4K / 8MP IP NVR. Sm…

Specifications

8 Channel IP NVR
Industrial grade embedded processor
Embedded LINUX operating system
Smart H.265 + / Smart H.264 + / H.265 / H.264 / MJPEG video encoding
Perimeter protection: 2 channels, line crossing and intrusion with classification of people / vehicles
Facial recognition: 1 channel, 8 facial images per second, up to 8 simultaneous targets, up to 10 databases with a maximum of 5,000 facial images
SMD Plus: 4 channels, person / vehicle classification
8 IP camera inputs
Video output VGA (1920x1080) and HDMI (3840x2160)
Two-way audio: 1 RCA input / 1 RCA output
Real-time display of up to 1 channel 8MP / 4K (3840x2160) or 4 channels 1080P (1920x1080)
Output division: 1, 4, 8, 9
Display resolution: 4K / 8MP (3840x2160), 1080P (1920x1080), SXGA (1280x1024), 720P (1280x720)
Recording resolution: 12MP, 4K / 8MP, 5MP, 4MP, 3MP, 1080P, 720P, D1
Bandwidths: 200Mbps for access, 200Mbps for storage and 100Mbps for forwarding
Playback of up to 8 channels (maximum 1 channel at 8MP / 4K)
Storage: 1 SATA port (up to 6TB per disk, not included)
RJ45 network interface (10/100 / 1000Mbps)
8 PoE ports (10 / 100Mbps)
Network protocols: HTTP, HTTPS, TCP / IP, IPv4, IPv6, RTSP, UDP, NTP, DHCP, DNS
ONVIF T / S / G, CGI, SDK compliant
Compatible with Chrome, IE9 and Firefox browsers
Connections: 2 USB 2.0
Server Access local network and Internet
Independent configurable video sensor per camera
Software and hardware watchdog
Watermark to preserve the integrity of the videos
Possibility of limiting user access to cameras in local and / or remote mode
Area masking, video loss and camera concealment alarm
Multilanguage display menu
Remote viewing, configuration and control via TCP / IP with client program and Internet Explorer browser (also compatible with Firefox and Chrome browsers)
Sending emails with attached photograph in alarm
Send to FTP scheduled or in alarm
Possibility of sending an alarm, and being connected to video surveillance receiver software
Display on Simbian, Blackberry, Windows Mobile, iPhone and Android mobile phones
Possibility of fixed or dynamic IP through Dyndns service, NoIP, DDNS Evolution, etc.
Power supply: 53V DC, 1.8A
NVR consumption: <10W (without hard drives)
PoE consumption: 25.5W per port with a limit of 72W in total
Operating temperature: -10 ° C ~ + 50 ° C
Relative humidity: 10% ~ 93%
Dimensions: 270 (W) x 47.5 (H) x 206.3mm (desktop)
Weight: 700g (without HDD)
