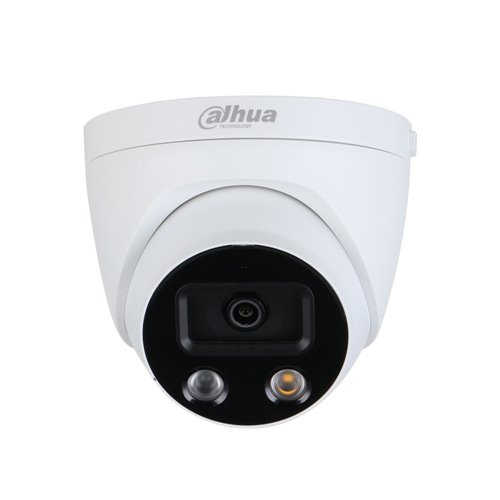

IPC-HDW5541H-AS-PV - StarLight IP dome Ai sereis with IR…

SKU: IPC-HDW5541H-AS-PV

incl. VAT€314,08

Price incl. VAT: €314,08

Ex. VAT: €251,27

Total discount:

VAT: €62,82

StarLight IP dome Ai sereis with IR up to 50 m for outdoors. 1/2.7" CMOS 5MP. Triple stream. H.265 + / H.265 / H.264 + / H.264. 5MP at 20fps. ICR filter. 0,005 lux F1.6. 2,8 mm lens (102 °). OSD, AWB, AGC, BLC, HLC, WDR 120dB, 3D-DNR, 4x ROI, defog, mirror, motion detection and privacy mask. Perimeter protection and people counter. IVS. MicroSD slot. Onvif, API. IP67. 3AXIS. 12V DC. PoE

+20 left on stock

Back to: Dahua New

Product description: IPC-HDW5541H-AS-PV

Description

WizMind

AI-series

Features

IPC-HDW5541H-AS-PV
1/2.7" CMOS sensor, 5 MP
H.265 / H.264 with triple stream
1080P at 50 fps, 5MP at 25 fps
WDR 120dB, day/night electronic filter, 3D-DNR, AWB, AGC, BLC
IP multiple monitoring: web display, CMS (DSS / PSS) and DMSS
2,8 mm lens.
IR range: 50 meters
2 way audio (microphone and speaker)
Alarm: 1 in / 1 out
MicroSD slot, IP67, PoE

Specs

IPC-HDW5541H-AS-PV
1/2,7” CMOS sensor, 5 MP
H.265+ / H.265 / H.264+ / H.264 / MJPEG
Digital resolution: 5MP (2592x1944), 4MP (2688x1520; 2560x1440), 3MP (2304x1296), 1080P (1920x1080), 1,3MP (1280x960), 720P (1280x720), D1 (704x576), VGA (640x480), CIF (352x288)
Stream 1: 5MP (1~20 fps), 4MP (1~25 fps), 1080P (1~50 fps)
Stream 2: D1 (1~20 fps), D1 (1~50 fps)
Stream 3: 1080P (1~17 fps)
Day/night mode with removable mechanical filter (ICR)
1 led, 50 meters
0,005 lux F1.6
2,8 mm lens
Viewing angle: 102°(H); 71°(V)
White balance: Auto, Natural, Light, Outdoor, Manual
Gain control: Auto, Manual
Backlight compensation (BLC, HLC)
WDR true 120dB
3D-DNR
4x ROI
Motion detection of 4 rectangular zones
Privacy mask: 4 rectangular zones
Mirror mode, Defog
AI:
- IPC-HDW5541H-AS-PV
- Perimeter Protection: Tripwire, Intrusion(Human & Vehicle classification)
- People Counting: Line crossing people counting, Region people counting
- 4 independent detection access supported and 4 intependent area detection supported
IVS: abandoned/lost object detection, scene change detection
Audio: 1 in / 1 out (microphone and speaker incorporated)
Alarm: 1 in / 1 out
Network interface: RJ45 (10/100 Base-T)
Network protocols: HTTP, TCP, ARP, RTSP, RTP, UDP, RTCP, SMTP, FTP, DHCP, DNS, DDNS, PPPoE, IPv4/v6, SNMP, QoS, UPnP, NTP, ICMP, HTTPS, IGMP, 802.1x
Compatible with ONVIF (Profile S/G), CGI, Milestone, P2P
Unicast / Multicast streaming method
Up to 20 users
Remote display via IE, Chrome, Firefox and Safari
Software management Smart PSS, DSS, DMSS
Compatible with IOS and Android
MicroSD card slot up to 256GB (card is not included)
Power supply: 12V DC
Consumption: <7,2W
PoE supported (802.3 af, Class 0)
IP67
Working temperature -30°C ~ +60°C
RH: 10% ~ 95%
Plastic and metal case
Dimensiones: Ø122 x 113,5 mm
Weight: 490 g
3AXIS: 0°~360°(PAN), 0°~78°(TILT), 0°~360°(Rotation)
Power supply is not included
