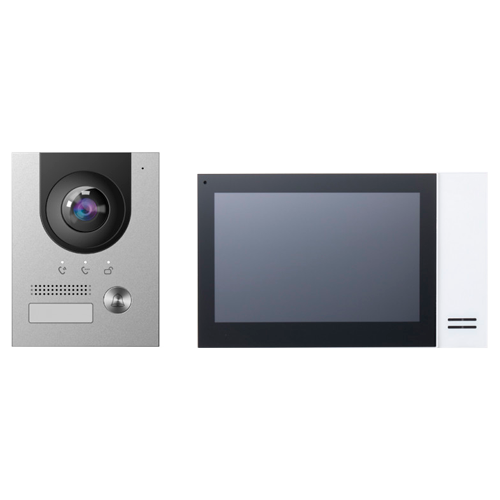

Video-intercom kit - XS-VTK2202-IP

SKU: XS-VTK2202-IP
0 Rating
incl. VAT€350,52
Price incl. VAT: €350,52
Ex. VAT: €280,42
Total discount:
VAT: €70,10
  • SKU: XS-VTK2202-IP
  • Video-intercom kit
  • IP and PoE Technology
  • Includes panel and monitor
  • PoE switch and bracket inc.
  • Mobile App with P2P
  • Surface mounting
Gls 1
Ups 1
1-4 Days delivery
+50 on stock
  • XS-VTK2202-IP
  • X-Security
  • Intercom Kit
  • IP Interface
  • Can be powered by PoE
  • Kit consisting of:
  • XS-V2202E-IP exterior video intercom panel with 2Mpx camera
  • XS-V2421M-IP-POE 7" LCD TFT interior monitor
  • Surface bracket for the panel
  • Switch from 4 PoE ports and 1 Uplink
  • 2 x PSU 12VDC
  • Monitoring using SmartPSS software or mobile App
SKU XS-VTK2202-IP

Panel

BrandX-Security
ModelXS-V2202E-IP
Operating systemLINUX OS
Image sensor2 MP CMOS HD low light
Lens2 mm
Viewing angleD: 120º H:160º
AudioBidirectional audio with microphone and speaker
KeypadMechanical button with LED backlit name-tag
Outputs1 for lock control, 1 alarm, 1 tamper, 1 12V/100mA output
Inputs1 alarm, 1 door status, 1 Eoc, 1 push button
Remote accessWeb browser, Mobile App or SmartPSS software
Network interfaceEthernet 10/100 BaseT
PowerDC 12 V / 1A max. / (802.3af) PoE
Degree of protectionIP55, IK07
MaterialAluminum Alloy
Temp. operation-30º C ~ +60º C
Dimensions130 (H) x 96 (W) x 28.5 (D) mm
Weight350 g

Monitor

BrandX-Security
ModelXS-V2421M-IP-POE
Operating systemLINUX OS
LCD7" 1024x600, Capacitive
Operation modeTactile Buttons
Inputs6 Configurable alarm entries
AudioTwo-way audio with microphone and speaker with noise cancellation
Remote accessMobile App or SmartPSS software
MemoryInternal 8GB / Allows MicroSD up to 32 GB
Network interfaceEthernet 10/100 BaseT
PowerDC 12 V / 500 mA max. / (802.3af) PoE
Temp. operation-10º C ~ +55º C
Dimensions119.6 (H) x 211.5 (W) x 21.5 (D) mm
Weight350 g
