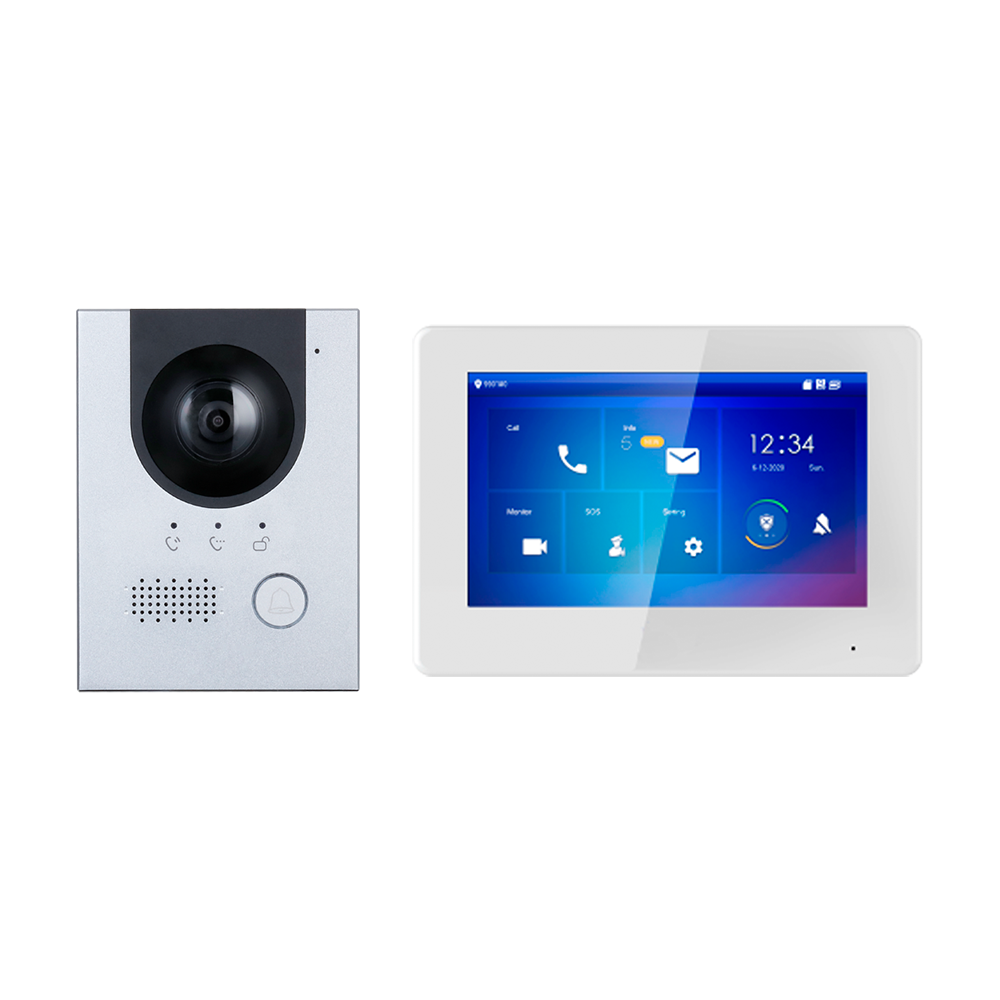

Video-intercom kit - XS-VTK2202-2

SKU: XS-VTK2202-2
0 Rating
incl. VAT€490,73
Price incl. VAT: €490,73
Ex. VAT: €392,58
Total discount:
VAT: €98,15
  • SKU: XS-VTK2202-2
  • Video-intercom kit
  • Technology 2 wires and PoE
  • Includes panel and monitor
  • Hub 2 wires and brackets inc.
  • Mobile App with P2P
  • Surface mounting
Gls 1
Ups 1
1-4 Days delivery
+50 on stock
  • XS-VTK2202-2
  • X-Security
  • Video intercom kit
  • 2 wire connectivity
  • Kit consisting of:XS-V2202E-IP exterior video intercom panel with 2Mpx camera
  • XS-V5422M-2POE 7" LCD TFT interior monitor
  • XS-V2003B-2IP converter from 2-wire to IP
  • VTM115 surface bracket
  • 48VDC Power supply
  • Monitoring via DSS Express Software or DMSS mobile app
SKU XS-VTK2202-2

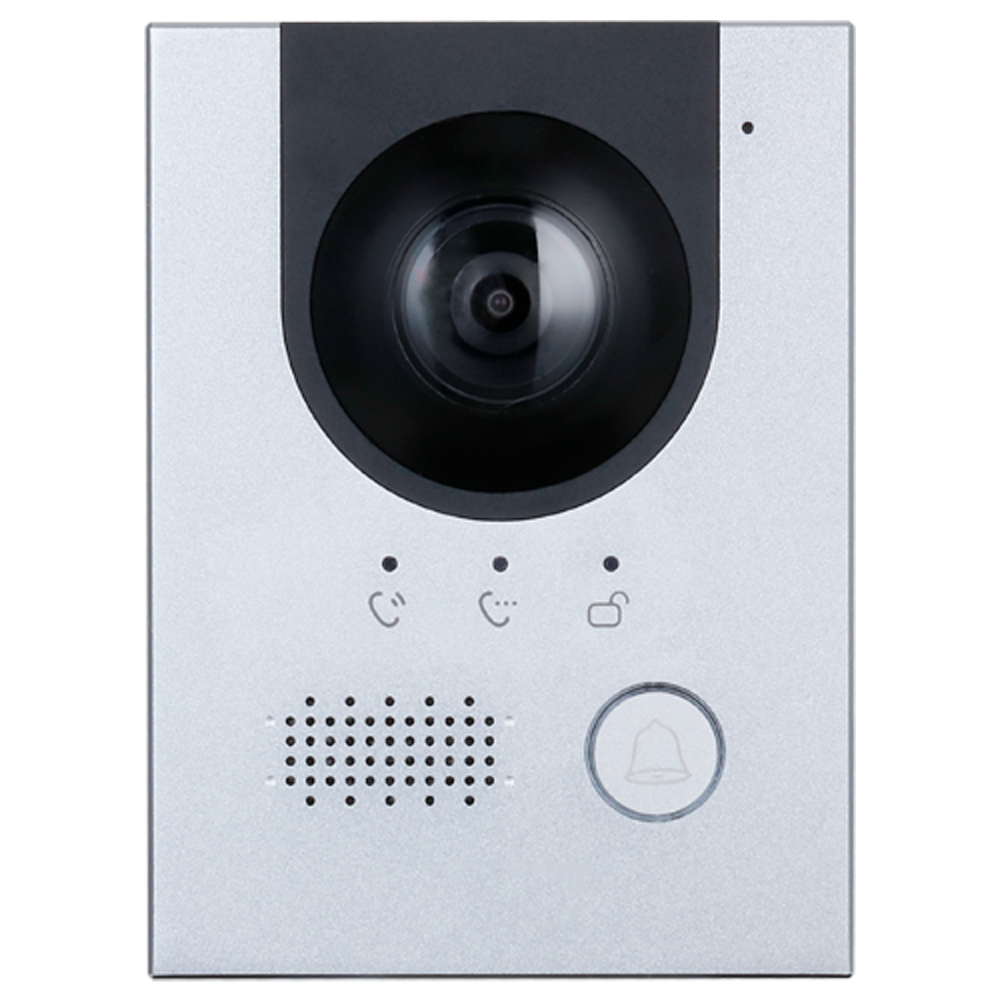

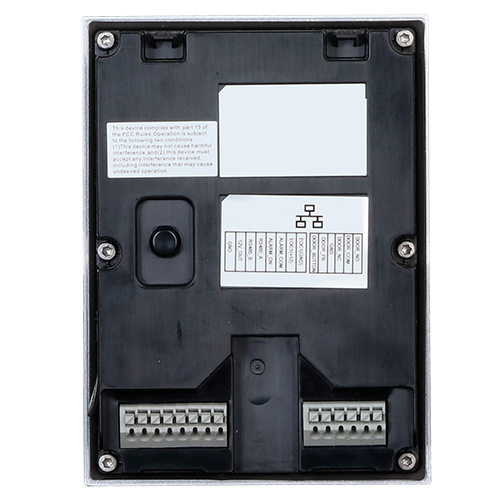

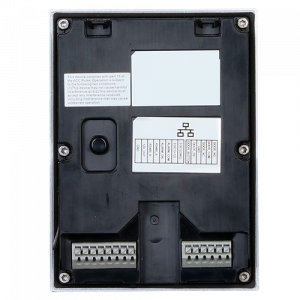

Panel

BrandX-Security
ModelXS-V2202E-IP
Operating systemLINUX OS
Image sensor2 MP CMOS HD low light
Lens2 mm
Viewing angleD: 120º H:160º
AudioBidirectional audio with microphone and speaker
KeypadMechanical button with LED backlit name-tag
Outputs1 for lock control, 1 alarm, 1 tamper, 1 12V/100mA output
Inputs1 alarm, 1 door status, 1 Eoc, 1 push button
Remote accessWeb browser, Mobile App or SmartPSS software
Network interfaceEthernet 10/100 BaseT
PowerDC 12 V / 1A max. / (802.3af) PoE or 2 wires via hub
Degree of protectionIP55, IK07
MaterialAluminum Alloy
Temp. operation-30º C ~ +60º C
Dimensions130 (H) x 96 (W) x 28.5 (D) mm
Weight350 g

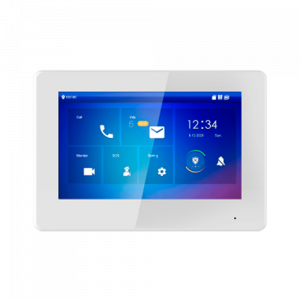

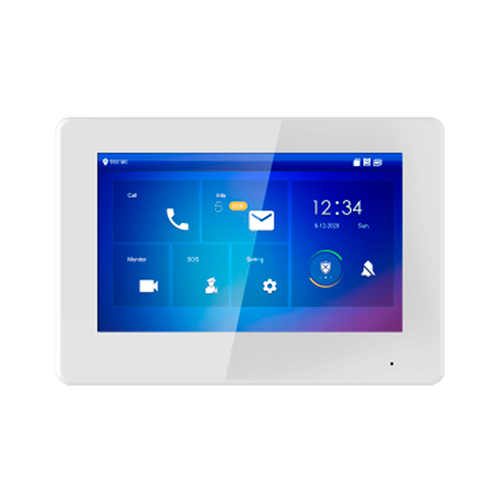

Monitor

BrandX-Security
ModelXS-V5422M-2POE
Operating systemLINUX OS
LCD7" TFT 1024x600, Capacitive
Operation modeTactile Buttons
Inputs6 Configurable alarm inputs / bell output
AudioTwo-way audio with microphone and speaker with noise cancellation
Remote accessDMSS mobile phone application or DSS Express software
MemorySupports MicroSD up to 64 GB
Network interfaceEthernet 10/100 BaseT and 2 wires
PowerDC 12 V / 500 mA max. / PoE (802.3af)
Temp. operation-10º C ~ +55º C
Dimensions130 (H) x 189 (W) x 26.9 (D) mm
Weight388 g

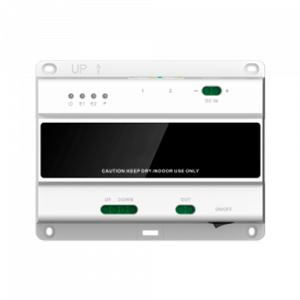

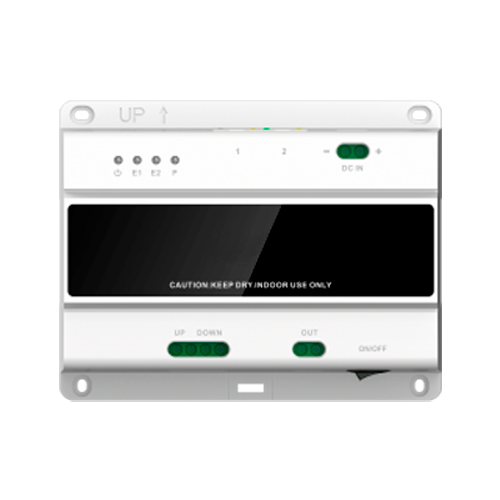

2 wires hub

BrandX-Security
Operation modePower, Video & Audio all via the 2 wire technology
Outputs3 groups of 2 wires
CommunicationTechnology 2-hilos (Up to 20 monitors and 2 boards) | Up to 10 cascading levels
Connection2 x RJ45
PowerDC 48 V / 1-3 A max.
Temp. operation-10º C ~ +55º C
Dimensions131 (H) x 103 (W) x 40 (D) mm
Weight400 g

Bracket

BrandX-Security
MaterialAluminium alloy
Dimensions129mm (H) x 95mm (W) x 28,5mm (Fo)/td>
Weight400 g
MountingWall surface
