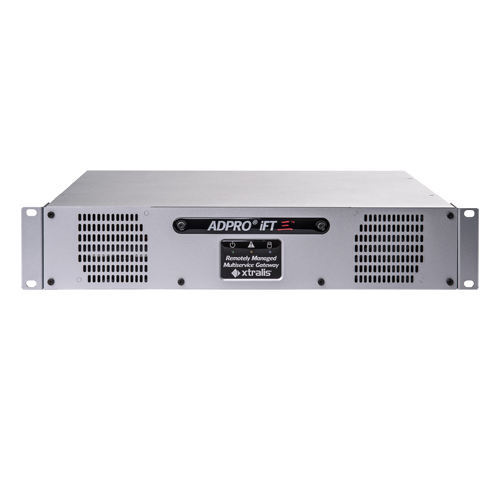

XTRALIS ADPRO iFT-E 16IP - 6TB HDD - 20I/8O - XTL-63041620

SKU: XTL-63041620
incl. VAT€289,06
Price incl. VAT: €289,06
Ex. VAT: €231,25
Total discount:
VAT: €57,81
  • SKU: XTL-63041620
  • XTRALIS ADPRO iFT-E 16IP - 6TB HDD - 20I/8O
  • Alarms 20I/8O - Includes 16 IP video channels
  • Scalable: up to 32 IP cameras and up to 32 analysis channels (vision 32:32)
  • 6TB hard disk
  • LoiterTrace and IntrusionTrace licenses NOT included
  • Certificación i-LIDS
Sold out / Not on stock
Product description: XTL-63041620
  • XTL-63041620
  • XTRALIS ADPRO iFT-E 16IP - 6TB HDD - 20I/8O
  • Includes 16 IP video channels
  • 6TB hard disk
  • 20 entradas y 8 salidas en el equipo
  • Scalable: Up to 32 IP cameras and up to 32 analysis channels (version 32:32)
  • LoiterTrace and IntrusionTrace licenses NOT included
  • Support for all major camera brands and ONVIF S/T profile
  • Video recording, video analysis and streaming (ready for complete remote monitoring)
  • Expandable: up to 128 inputs and 128 outputs with Ethernet PoE modules
  • Reliable data storage: support up to 4 x 10TB HDD
  • Xchange Program 2 for installation and license management
  • Mobile applications for monitoring, verification and remote control
  • Certificación i-LIDS
  • DGUV-UVV Kassen Certification
  • Compliance with BS 8418:2015
SKU XTL-63041620
Operating system ADPRO® XO™ Security operating system, based on Linux
Video input 1–32 IP cameras
Video output XGA – Multiple matrix views
Video compression H.264/H.265 (H.265 supported with ONVIF profile S/T, Hikvision and generic drivers)
Video Resolution Up to HD/MP resolution (Depending on the camera)
Images/second Full HD @25/30 ips – Megapixels: ips is depending on the camera
Bandwidth Capacity 32 x 5 Mbps
Bandwidth Management Configurable bitrate constant or variable / Configurable bandwidth limiter
Audio input Supports built-in audio input (Depending on the camera)
Audio output Standard: 1 line output. Optional: up to 1 per camera via audio switcher. Audio output on IP cameras (depending on the camera) with ONVIF Profile S/T controller
Command inputs 20 inputs in the box (monitored) + 20 inputs (monitored) with USB XO I/O interface module + 128 with Net I/O module with PoE
Relay outputs 8 outputs on the box (SPDT) + 8 outputs (SPDT) with USB XO I/O interface module + 128 outputs (SPDT) with Net I/O module with PoE
Web server XO client - integrated web client application (ActiveX)
Ethernet 2 x 100/1000BASE-T, autodetection, full duplex, RJ45
Recording Type Schedule / Detection / Event
IP Camera Integration Brand-specific, generic or with driver ONVIF S/T profile (Depends on the camera)
Management Web client interface (XO client), ADPRO VideoCentral Platinum, third-party software (SDK available) and iTrace App for iOS/Android
Power supply 100–240 VCA, 50/60 Hz
Operating temperature 5–40 °C
Humidity from 20-93 % RH non-condensing
Disk Capacity Max. 4 x SATA 10 TB HDD. Compatibility with RAID 1. 2 Identical HDD)
Warranty 2 years
Dimensions (W x H x L) 441 x 88 x 305 mm
Video Analysis Basic motion detection (VMD), camera sabotage detection.
Up to 32 analysis channels IntrusionTrace™ and LoiterTrace™ (datasheets available separately)
Mobile Apps iTrace, iPIR
