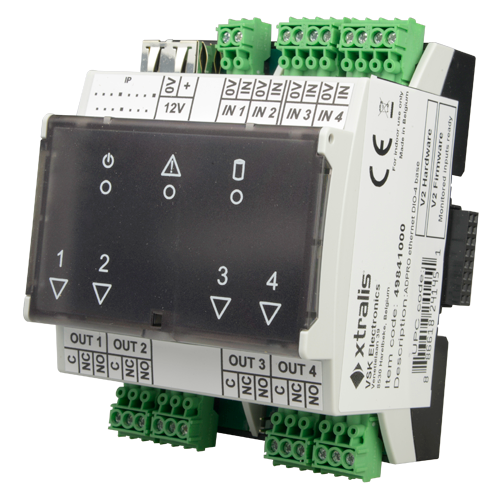

XTRALIS-Ethernet extension module Poe I/O slave - XTL-49841010

SKU: XTL-49841010
incl. VAT€326,06
Price incl. VAT: €326,06
Ex. VAT: €260,85
Total discount:
VAT: €65,21
  • SKU: XTL-49841010
  • XTRALIS-Ethernet extension module Poe I/O slave
  • 4 voltage-free contact inputs
  • 4 relay outputs
  • 3 LED indicators
  • DIN rail mounting
  • Extension for master module XTL-49841000
+50 on stock
Product description: XTL-49841010
  • XTL-49841010
  • Module with LED indicators, contact inputs and relay outputs, FastTrace compatible 2 Series, iFT Series, iFT Gateway.
  • The analytical system controls the I/O units via the Ethernet network (10 Mbps).
  • The module has 4 voltage-free contact inputs (default = NO).
  • 4 relay outputs (voltage free switchover contacts) each with status LED.
  • 3 LED indicators for system status (red = recording; yellow = fault; green = power supply).
  • Mounted on DIN rail
  • Extendible with up to three extension units. Extension units are powered from the base unit. Each extension unit offers 4 additional monitors or contact inputs and 4 relay outputs.
  • Powered by a local adapter (12 VDC; min 350 mA) or by a PoE switch or injector
SKU XTL-49841010

Power:

- Voltage

- Consumption

12 VDC / 350 mA (min), adapter or POE injector

12 VDC ± 10%

190 mA max. (all relays and LEDs activated), 140 mA (with all relays off)

Inputs 4 voltage free contact inputs, NO or NC (NO by default)
Outputs 4 relay outputs: NC/NA, 30vdc @1A
Dimensions 72mm x 89.7 mm x 62.2 mm
Operating temperature 0-40 °C
Relative humidity 20-93% (non condensing)
