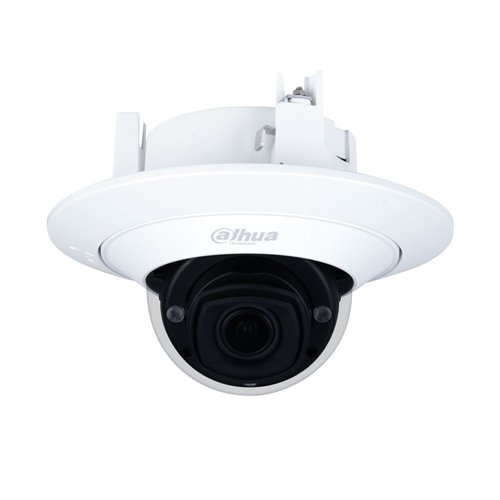

IPC-HDPW5541G-Z - IP dome AI Series with Smart IR of…

SKU: IPC-HDPW5541G-Z

incl. VAT€476,42

Price incl. VAT: €476,42

Ex. VAT: €381,13

Total discount:

VAT: €95,28

IP dome AI Series with Smart IR of 40 m for indoors. 1/2,7"" CMOS, 5MP. Triple Stream. H.265+/ H.265/ H.264+/ H.264/ MJPEG. 5MP at 20fps. ICR filter. 0,015 lux F1.5. 2,7 ~ 13,5 mm motor lens (100°~28°). OSD, AWB, AGC, BLC, HLC, WDR 120dB, 3D-DNR, 4 zonas ROI, mirror, motion detection and privacy mask. Face capture, face attributes, perimeter protection and people counter. IVS. 2 way audio. Alarm: 1 in / 1 out. MicroSD slot. Onvif, CGI, P2P. 3AXIS. 12V DC. PoE.

+20 left on stock

Back to: Dahua New

Product description: IPC-HDPW5541G-Z

Description

AI series

Features

IPC-HDPW5541G-Z
1/2,7” CMOS sensor, 5MP
H.265 and H.264 with triple stream
5MP (2592x1944) at 20 fps, 1080P (1920x1080) at 50 fps
WDR 120dB, day/night with ICR filter, 3D-DNR, AWB, AGC, BLC
Multiple remote monitoring via web browser, CMS (DSS/PSS) and DMSS
2,7 ~ 13,5 mm motorized lens
IR illumination up to 40 meters
Alarm: 1 in / 1 out
Audio: 1 in / 1 out
MicroSD slot
PoE supported

Specs

IPC-HDPW5541G-Z
1/2,7” CMOS sensor, 5 MP
H.265+ / H.265 / H.264+ / H.264 / MJPEG
Digital resolution: 5MP (2592x1944), 4MP (2560x1440), 3MP (2304x1296), 1080P (1920x1080), 1,3MP (1280x960), 720P (1280x720), D1 (704x576), VGA (640x480), CIF (352x288)
Stream 1: 5MP (1~20 fps), 4MP (1~25 fps), 1080P (1~50 fps)
Stream 2: D1 (1~20/30 fps), D1 (1~50 fps)
Stream 3: 1080P (1~17 fps)
Day/night mode with removable mechanical filter
Smart IR: 3 leds, 40 meters
0,015 lux F1.5
2,7 ~ 13,5 mm motor lens
Viewing angle: 100°~28°(H), 72°~21°(V)
White balance: Auto, Natural, Light, Outdoor, Manual
Gain control: auto and manual
Backlight compensation: BLC, HLC
WDR 120dB
3D-DNR
4 zonas ROI
Motion detection of 4 rectangular zones
Privacy mask: 4 rectangular zones
EIS
Defog
Mirror mode
AI:
- IPC-HDPW5541G-Z
- Face capture: Support face image capture
- Face Attributes: Support 6 kinds of face attributes extraction: Age, Gender, Expression (Jolly, Surprise, Normal, Rage, Sad, Disgusted, Confused, Frightened), Glasses, Mouth Mask, Moustache & Beard
- Perimeter Protection: Tripwire, Intrusion (Human & Vehicle classification)
- People Counting: Support Line crossing/Region/Queueing people counting
- Support 4 accesses independent detection, 4 areas independent detection
IVS: Object Abandoned/Missing, scene change
Audio: 1 in / 1 out
Alarm: 1 in / 1 out
MicroSD card slot up to 256GB (not included)
Network interface: RJ45 (10/100 Base-T)
Network protocols: HTTP, TCP, ARP, RTSP, RTP, UDP, RTCP, SMTP, FTP, DHCP, DNS, DDNS, PPPoE, IPv4/v6, SNMP, QoS, UPnP, NTP, ICMP, HTTPS, IGMP, 802.1x
Compatible with ONVIF (Profile S/G), CGI, Milestone, P2P
Unicast / Multicast streaming method
Up to 20 users
Remote display via IE, Chrome, Firefox and Safari
Software management Smart PSS, DSS, P2P
Compatible with IOS and Android
Power supply: 12V DC
Consumption: <11W
PoE supported (802.3 af, Class 0)
Storage temperature -30°C ~ +60°C
Working temperature -30°C ~ +60°C
RH: 10% ~ 95%
Plastic case
Dimensions: Ø180,5 x 131,4 (H) mm
Weight: 510 g
3AXIS: 0°~355°(PAN), 0°~75°(TILT), 0°~355°(Rotation)
Power supply is not included
