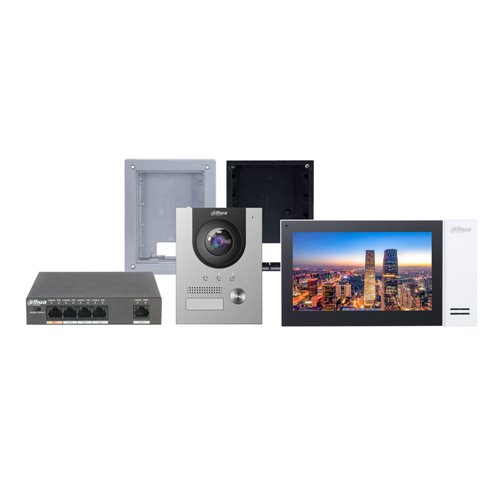

DHI-KTP01-F - IP video intercom kit consisting of…

Kit composed by:

• DHI-KTP01-F
• x1 VDP station IP SIP DAHUA-2029 (VTO2202F-P)
• x1 Recessed box DAHUA-2097 (VTM114) for VDP
• x1 IP monitor SIP DAHUA-2031 (VTH2421FW-P)
• x1 Switch PoE DAHUA-1789 (PFS3005-4ET-60)

VDP station

• DHI-KTP01-F
• H.264 video compression
• 2 MP CMOS image sensor
• 1.95 mm fisheye optics
• 160 ° viewing angle (H)
• WDR support
• G.711 U audio compression
• Omnidirectional microphone
• Incorporates speaker
• Mechanical button
• TF memory card slot up to 64GB (card not included)
• 1 RS485 port
• 1 input / 1 alarm output
• 1 lock control port
• 1 door status detection port
• 1 Eoc port
• 1 port for exit button
• 1 tamper switch
• Network interface
• 12V DC power output, 100 mA
• IP55
• IK07
• Built in aluminum
• Recessed or surface installation
• Power: 12V CCV, 1A
• Consumption: ≤12W
• Operating temperature of -30C ~ + 60 ° C
• Relative humidity of 10% ~ 90%
• Dimensions: 96 (W) x 130 (H) x 39.9 mm
• Weight: 350g

Recessed box

• DHI-KTP01-F
• Recessed box for DAHUA-2029 video intercom (VTO2202F-P)
• Built in ADC12 aluminum alloy
• It consists of a flush-mounted box and a trim plate
• Box dimensions: 123 (W) x 157 (H) x 35 mm
• Trim dimensions: 128.9 (W) x 162.9 (H) x 34.5 mm

SIP Monitor

• DHI-KTP01-F
• Embedded Linux operating system
• 7 ”color LCD screen (1024x600)
• Capacitive touch screen
• H.264 video compression
• G.711A / G.711U / PCM audio compression
• It incorporates omnidirectional microphone
• 1.5W speaker included
• Supports echo cancellation and noise reduction
• IP video surveillance
• Alarm Integration
• Up to 9 sub-stations
• Supports SOS alarm
• RJ45 interface
• 6 inputs / 1 alarm output
• PoE power
• Consumption: ≤4W (standby), ≤6W (running)
• Working temperature: -10 ° C ~ + 55 ° C
• Relative humidity: 10% ~ 95%
• Not suitable for outdoor
• Dimensions: 221.5 (W) x 119.6 (H) x 21.5 mm
• Weight: 350g
• Wall mount

Switch PoE

• DHI-KTP01-F
• Switch PoE switch unmanageable L2 comercial range
• 4x 10/100 Base-T (PoE/PoE+)
• 1x 10/100 Base-T
• PoE consumption: ≤60W (port 1), ≤30W (port 2 a 4), ≤60W total
• PoE protocol: IEEE802.3af, IEEE802.3at, Hi-PoE
• Switching capacity: 1 Gbps
• Packet Forwarding Rate: 744 Kbps
• Packet buffer memory: 488 Kb
• MAC table zise: 1K
• Flow control enabled
• Power supply: 48V ~ 57V DC (power supply included)
• Working temperature: -10°C ~ +55°C
• RH 5% ~ 95%
• Lightning-proof: 2KV (common mode), 1KV (differential mode)
• Dimensions: 130 x 85 x 26 mm
• Weight: 290 g
