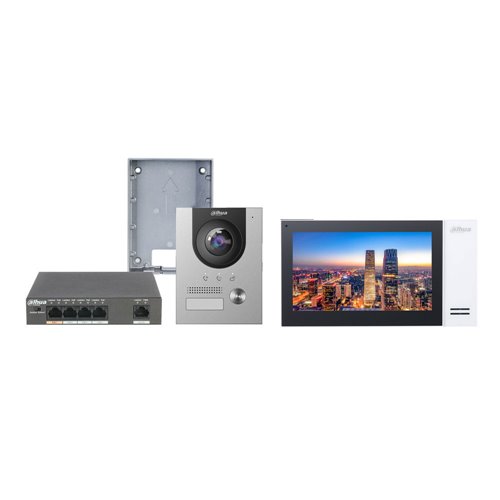

DHI-KTP01-S - IP VDP kit consisting of: x1 2-in-1…

Kit composed by

• DHI-KTP01-S
• x1 IP Video Door Station SIP DAHUA-2029 (VTO2202F-P)
• x1 DAHUA-2096 (VTM115) surface box for video intercom station
• x1 DAHUA-2031 SIP IP Monitor (VTH2421FW-P)
• x1 DAHUA-1789 PoE Switch (PFS3005-4ET-60)


VDP station

• DHI-KTP01-S
• H.264 video compression
• 2 megapixel CMOS image sensor
• Fisheye optics of 1.95 mm (160 °)
• WDR support
• G.711 U audio compression
• It incorporates omnidirectional microphone and speaker
• Mechanical button
• TF memory card slot up to 64GB (card not included)
• 1 RS485 port
• 1 input / 1 alarm output
• 1 lock control port
• 1 door status detection port
• 1 Eoc port
• 1 port for exit button
• 1 tamper switch
• Network interface
• 12V DC power output, 100 mA
• IP55 protection degree
• Vandal protection IK07
• Built in aluminum
• Recessed installation with accessory included in the kit
• Power supply: 12V CCV, 1A
• Consumption: ≤12W
• Operating temperature of -30C ~ + 60 ° C
• Relative humidity of 10% ~ 90%
• Dimensions: 96 (W) x 130 (H) x 39.9 mm
• Weight: 350g

Surface box

• DHI-KTP01-S
• Specific surface box for DAHUA-2029 video intercom station (VTO2202F-P)
  Built in 2mm AL5052 aluminum alloy
  Dimensions: 95 (W) x 129 (H) x 28.5 mm

SIP monitor

• DHI-KTP01-S
• 7”color LCD display (1024x600)
• Capacitive touch screen
• H.264 video compression
• G.711A / G.711U / PCM audio compression
• It incorporates omnidirectional microphone and 1.5W speaker
• Supports echo cancellation and noise reduction
• Alarm Integration
• Up to 9 sub-stations
• Supports SOS alarm
• RJ45 interface
• Alarm: 6 in / 1 out
• PoE power
• Consumption: ≤4W (standby), ≤6W (working)
• Working temperature: -10 ° C ~ + 55 ° C
• Relative humidity: 10% ~ 95%
• Not suitable for outdoor
• Dimensions: 221.5 (W) x 119.6 (H) x 21.5 mm
• Weight: 350g
• Wall mount

Switch PoE

• DHI-KTP01-S
• Non-manageable Po2 switch commercial range L2
• 4 10/100 Base-T ports (PoE / PoE +)
• 1 10/100 Base-T port
• PoE consumption: ≤60W (port 1), ≤30W (ports 2 to 4), ≤60W in total
• PoE Protocol: IEEE802.3af, IEEE802.3at, Hi-PoE
• Switching capacity: 1 Gbps
• Packet Forwarding Rate: 744 Kbps
• Buffer: 488 Kb
• Flow control enabled
• Automatic MAC and age study
• Capacity of the 1K MAC address list
• Supports IEEE802.3, IEEE802.3u and IEEE802.3X
• Supports PoE transmission up to 250 meters
• Anti-theft lock hole
• Supports wall installation
• PoE power management
• Power: 48V ~ 57V DC (Feeder included)
• Operating temperature: -10 ° C ~ + 55 ° C
• 5% ~ 95% humidity
• Lightning-proof: 2KV (common mode), 1KV (differential mode)
• Dimensions: 130 x 85 x 26 mm
• Weight: 290 g
