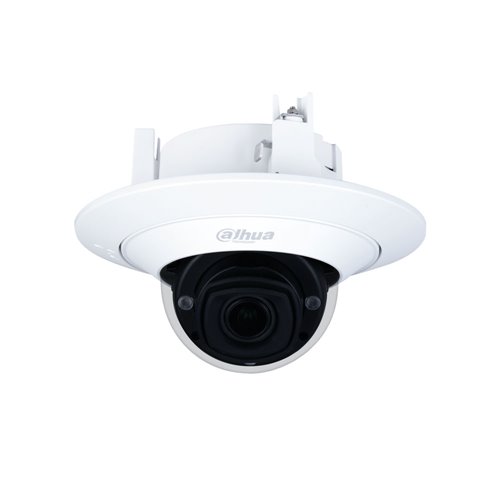

IPC-HDPW5241G-ZE - Dahua AI Series IP fixed dome with…

Features

    1 / 2.8 ”Sony® STARVIS ™ CMOS sensor, 2 megapixels
    H.264 and H.265 encoding with triple stream
    Resolution 1080P (1920x1080) at 25 ips
    WDR 120dB, day / night with ICR filter, 3D-DNR, AWB, AGC, BLC
    Multiple remote monitoring via web browser, CMS (DSS / PSS) and DMSS
    2.7 ~ 13.5mm motorized lens
    Smart IR up to 40 meters
    1 alarm input / 1 output
    1 audio input / 1 output
    MicroSD slot
    Supports PoE / ePoE

Specs

    1 / 2.8 ”Sony® STARVIS ™ CMOS sensor, 2 megapixels
    Compression formats: H.265 / H.264 / MJPEG
    Digital Resolution: 1080P (1920x1080), 1.3MP (1280x960), 720P (1280x720), D1 (704x576), VGA (640x480), CIF (352x288)
    Stream 1: 1080P (1 ~ 25/30 ips)
    Stream 2: D1 (1 ~ 25/30 ips)
    Stream 3: 1080P (1 ~ 6 ips)
    Day / night mode with removable mechanical filter
    Smart IR: 3 LEDs, 40 meters
    0.002 lux F1.5
    2.7 ~ 13.5mm motorized lens
    Viewing angle: 109 ° ~ 30 ° (H), 57 ° ~ 17 ° (V)
    White Balance: Auto, Natural, Street Light, Outdoor, Manual
    Automatic and manual gain control
    Backlight compensation: BLC, HLC
    WDR 120dB
    3D-DNR digital noise reduction
    4 ROI zones
    4-zone rectangular video sensor
    4 Rectangular Zone Privacy Mask
    EIS Image Stabilizer
    Defog
    Mirror mode
    Artificial intelligence:
        Face detection: Improvement; snapshot; high-quality image reporting; facial exposure; facial attribute extract
        Face Attributes: Supports 6 kinds of facial attribute extraction and 8 expressions, such as age, gender, expressions (anger, calm, joy, sadness, disgust, surprise, confusion, fear), mouth mask,
        beard, mustache, etc.
        Perimeter protection: Line crossing, intrusion, rapid movement (all three functions support person / vehicle classification), loitering detection, people gathering, parking detection
        People Counting: Supports counting of entry number, license number and pass number and displays / generates annual / monthly / daily reports. Support counting numbers in the area and setting 4 rules. Count the number of people or stay time and link the alarm. Supports queue management and 4-rule configuration
    Intelligent Detection (IVS): Abandoned / Lost Objects, Heat Map
    1 audio input / 1 output
    2 inputs / 1 alarm output
    MicroSD card slot up to 256GB (not included)
    Network interface: RJ45 (10/100 Base-T)
    Network protocols: IPv4, IPv6, HTTP, HTTPS, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS , PPPoE, 802.1x, SNMP
    Compatible with ONVIF (Profile S / G / T), CGI, Milestone, P2P, SDK, API
    Up to 20 users
    Remote viewing through IE8 +, Chrome, Firefox and Safari + browsers 12
    Smart PSS, DSS, DMSS management software
    Compatible with IOS and Android mobile devices
    Power supply: 12V DC (± 30%)
    Consumption: <10.6W
    Supports PoE (802.3 af, Class 0)
    Supports ePoE: full duplex transmission of more than 800 meters at 10 Mbps or 300 meters at 100 Mbps over Cat5 or coaxial cable
    Not suitable for outdoors
    Storage temperature -40 ° C ~ + 60 ° C
    -30 ° C ~ + 60 ° C operating temperature
    Relative humidity: <95%
    Plastic shell
    Dimensions: Ø180.5 x 131.4 mm
    Weight: 510g
    3AXIS: 0 ° ~ 355 ° (PAN), 0 ° ~ 75 ° (TILT), 0 ° ~ 355 ° (Rotation)
    Does not include power supply
