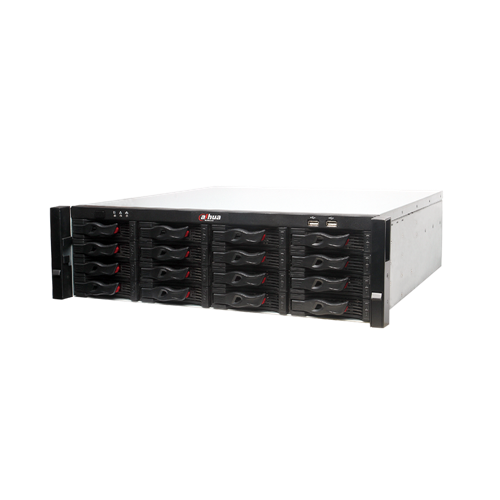

Intel processor - NVR616R-128-4KS2

Features

• NVR616R-128-4KS2
• Intel processor
• Linux OS
• H.265/H.264/MJPEG
• Up to 128 IP camera inputs
• Input bandwidth: 384Mbps
• Display and playback up to 12MP
• Soporta RAID 0/1/5/10
• Fisheye camera dewarping
• Heatmap
• Point Of Sale (POS)
• iSCSI and Mini SAS for storage space expanse
• Smart monitoring and smart video
• Redundant power supply

Specs

• NVR616R-128-4KS2
• 128 ch IP NVR up to 12 MP, H.265/H.264/MJPEG
• 2 HDMI output up to 4K (different sources) and 1 VGA output up to 1080P
• 2 way audio: 1 RCA in / 1 RCA out
• Output division display 1:1, 4, 8, 9, 16, 25, 36
• Output division display 2: 1, 4, 8, 9, 16
• Display resolution: 4K (3840x2160), 1080P (1920x1080), SXGA (1280x1024), 720P (1280x720), XGA (1024x768)
• Recording resolution: 12MP, 4K/8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 720P, etc.
• Recording speed: 384 Mbps
• Bitrate per channel: 16Kbps ~ 20Mbps
• Motion detection: 22x18 selectable grid, adjustable sensibility at various levels, detection by video loss and masking.
• Alarm channels: 16 in / 8 out (NA/NC)
• Playback up to 128Mbps on RAID5 mode or 64Mbps on HDD simple mode
• Internal storage: 16x SATA III ports,up to8TB per port (HDD is not included)
• HDD modes: Simple, Raid 0/1/5/10
• Hot swap HDD
• Mirror copy (or redundant) with more than 1 HDD
• 1 eSATA port
• 1 MiniSAS port per storage expand
• Fiber optic interface of 2 Gbps
• 4 RJ45 ports (10/100/1000M), working combined or independent
• Network protocols: HTTP, HTTPs, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP filter, PPPoE, DDNS, FTP, alarm server, IP search (IP Dahua, DVR, NVS, etc.)
• CompatiblewithONVIFVersion2.4, CGI
• Remote access up to 128 users
• Compatible with iPhone, iPad and Android
• 4 USB ports (2 USB 3.0 +2 USB 2.0)
• 1x RS232 for PC and keyboard communication
• 1x RS485forPTZ control
• Local network and internet server access
• Independent motion detection configuration by camera
• Software and hardware watchdog
• Watermark
• Limit access to users to cameras on local/remote mode
• Masking areas, alarm by video loss or camera blank
• Multilanguage menu display
• Email sended with attached picture on alarm
• Programmed FTP or alarm sending
• Possibility of sending alarm, and being connected to video surveillance receiver software
• Fixed/dynamic IP via Dyndns service, NoIP, DDNS Evolution, etc.
• Power supply:100V ~ 240V AC, 50/60Hz,redundant
• Consumption: <51W (without HDD)
• Storage temperature:-20°C ~ +70°C
• Working temperature:-10°C ~ +55°C
• RH:10~90%
• Dimensions:485 x512,9 x 133,2 mm (rack 3U)
• Weight: 19,10 kg (without HDD)
