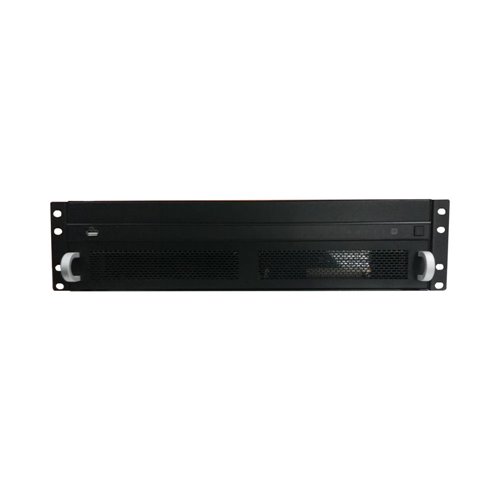

Main processor- Intel X86 Braswell microprocessor - DSCON3000-M

Features
- 19” standard 2.5U ATCA industry box · High speed passive rear panel design, reliable and stable
- Easy and flexible configuration with pluggable card module design
- 4 service card slots, every slot supports various service card
- Supports max 32 screens splicing
- Provides low latency solution below 50ms and excellent performance of synchronization
- Redundant power optional and smart temperature controlled fan
- Intel X86 main control chip inside, ultrahigh data processing capacity and good extensibility
- PCI-E bus, high system bandwidth
- Supports analog/digital video signals input and matrix output
- Supports collection of 4K local signal via HDMI interface to achieve the high-definition display
- Supports virtual LED that the background color, transparence, font type and color etc. can be adjustable
- 2 RJ-45 gigabit network ports for matrix control, preview
- Remote reboot/upgrade/default setting and etc operations

Specifications
- Main processor: Intel X86 Braswell microprocessor
- OS: Linuxembedded
- Bus: PCI-E
- Slots: 5 slots (1 main control slot, 4 video functions slots)
- Video input cards: 4 max
- Video output cards: 4 max
- Splice: Supports videowall splice (maximum 32 screens)
- Videowall: Supports zoom of splice, union, travel and overlay
- Input source: HDMI, DVI-I, CVBS, 3G-SDI
- Output ports: HDMI, 3G-SDI
- Control mode: PC client, local GUI, iPad
- Network interface: 2x RJ45 (10/100/1000M)
- Port series: 3x RS232 (RJ45) for console and control, 1x RS485
- USB ports: 1x USB 2.0, 1x USB 3.0
- Power supply: 115V ~ 230V AC, 47Hz ~ 63Hz (power supply optional redundant)
- Consumption: 90W (minimum system), 360W (complete configuration)
- Working temperature: -10°C ~ +55°C
- RH: 10% ~ 90%
- Pressure: 86kpa ~ 106kpa
- Dimensions: 482,6 x 436,8 x 111,9 mm (2,5U)
- Weight: =15 Kg
