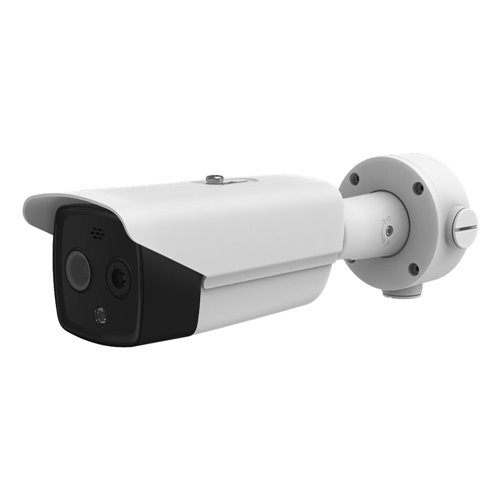

DS-2TD2617B-6/PA - HYUNDAI NEXTGEN thermal imaging + v…

Description

Bullet thermographic camera to measure body temperature. Able to measure target temperature with high precision in real time. It is capable of discovering and tracking people with a higher body temperature in the public area. It can be widely used in places like customs, airports, schools and hospitals for inspection and quarantine.

Features

• DS-2TD2617B-6/PA

• 160x120 resolution in thermal channel, high sensitivity sensor



• Temperature range: + 30 °C ~ + 45 °C, temperature accuracy of ± 0.5 °C



• Temperature exception alarm function



• 4 megapixel resolution on optical channel



• 3D-DNR, detail enhancement



• Audio alarm



• Thermal view and overlapping details of the optical channel



• Combines PIP optical and thermal image details, thermal image superimposed on optical image

 Thermal camera

• DS-2TD2617B-6/PA

• FPA sensor not cooled with vanadium oxide



• 160x120 thermal resolution (output resolution is 320x240)



• Pixel range: 17μm



• Thermal sensitivity (NETD): ≤40 mk (@ 25 °C, f / 1.0)



• Spectrum range: 8 μm ~ 14 μm



• Focal length (thermal): 6.2 mm



• IFOV: 2.74 mrad



• Viewing angle (thermal): 25 ° x 18.7 °



• Minimum focus distance of 0.6 meters



• -30 °C ~ + 45 °C temperature range



• Temperature accuracy of ± 0.5 °C



• Supports 3 kinds of temperature measurement rulers, 21 rulers (10 points, 10 regions and 1 line)

 Visible camera

• DS-2TD2617B-6/PA

• Image sensor (visible camera) CMOS 1 / 2.7 Progressive Scan 4 megapixel



• Effective Pixels: 2688 x 1520



• 40 meter infrared illumination



• Minimum illumination: 0.0089 lux F1.6 (color) / 0.0018 lux F1.6 (B / W)



• Focal length (visible optics): 8 mm



• Viewing angle (visible optics): 39.42 ° x 22.14 °



• Removable mechanical filter



• WDR 120dB

IP communication and integration

• DS-2TD2617B-6/PA

• Compression formats: H.265 / H.264 / MJPEG



• Stream 1 thermal camera: 720P, D1, VGA, CIF, QVGA (25 ips)



• Stream 2 thermal camera: D1, VGA, CIF, QVGA (25 ips)



• Stream 1 visible camera: 4MP, 1080P, 720P (25 ips)



• Stream 2 visible camera: D1, CIF, QCIF (25 ips)



• Audio compression: G.711u / G.711a / G.722.1 / MP2L2 / G.726 / PCM



• 1 RJ45 10 / 100M self-adaptive port



• Protocols: IPv4 / IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE



• Up to 20 simultaneous views



• Up to 32 users, 3 levels: administrator, operator, user



• API, ISAPI, and third-party management gateway compatibility



• Compatible with IE9 +, Chrome31-44, Firefox30-51, Safari 5.02+ (mac) browsers



• 2 inputs / 2 alarm outputs



• 1 audio input / 1 output



• Reset button



• MicroSD / SDHC / SDXC card slot (up to 128GB), with support for manual or alarm recording



• BNC 1.0V [pp] / 75Ω (PAL / NTSC) output



• RS485 port

Electrical and environmental

• DS-2TD2617B-6/PA

• Power: 12V DC (± 20%), PoE (802.3af, class 3)



• Consumption: max. 8W



• -10 °C ~ + 35 °C operating temperature (for indoor and windless use)



• Relative humidity: ≤95% (without condensation)



• Protection degree IP66



• 6KV Lightning-proof

Physical characteristics

• DS-2TD2617B-6/PA

• Metal housing



• Dimensions: 113.5 (W) x 115.2 (H) x 358.3mm



• Weight: 1.76 kg



• Includes wall bracket and tube base
