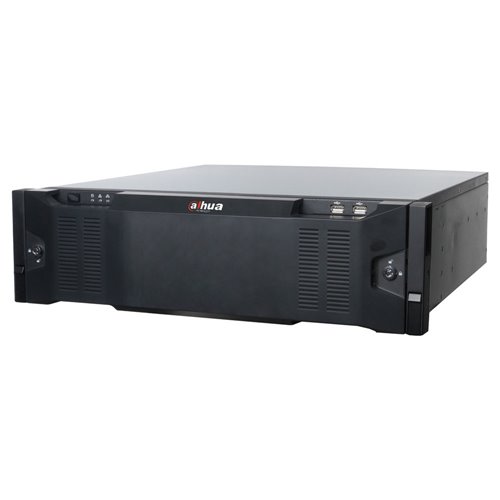

NVR616-128-4KS2 - 128 channel IP NVR, 12MP. H.265/H.2…

SKU: NVR616-128-4KS2

incl. VAT€5111,91

Price incl. VAT: €5111,91

Ex. VAT: €4089,53

Total discount:

VAT: €1022,38

128 channel IP NVR, 12MP. H.265/H.264/MJPEG. 2 way audio. 16 channel @ 1080P playback. 12MP, 4K/8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 720P, etc. Recording up to 384 Mbps. 2 HDMI (4K) and 1 VGA (1080P) output. Alarm: 16 in / 8 out. 16 HDD SATA III capacity. 1 eSATA.1 miniSAS 4 RJ45 Gigabit. 2 USB 2.0 + 2 USB 3.0, 1 RS485, 1 RS232. 220V AC. 3U.

Sold out / Not on stock

Back to: Dahua New

Product description: NVR616-128-4KS2

Description

- 128 channel IP NVR up to 12MP en formato H.265/H.264/MJPEG
- Intel processor
- LINUX O/S
- H.265/H.264/MJPEG
- 128 IP camera inputs
- VGA (1920x1080) and 2 HDMI (up to 4K) video output
- 2 way audio: 1 RCA in / 1 RCA out
- Output division display 1: 1, 4, 8, 9, 16, 25, 36
- Output division display 2: 1, 4, 8, 9, 16
- Display resolution: 4K (3840x2160), 1080P (1920x1080), SXGA (1280x1024), 720P (1280x720), XGA (1024x768)
- Recording resolution: 12MP (4000x3000), 4K/8MP (3840x2160), 6MP (3072x2048), 5MP (2560x1920), 4MP (2560x1440), 3MP (2048x1536), 1080P (1920x1080), 720P (1280x720), etc.
- Recording speed: 384 Mbps
- Bitrate per channel: 1 ~ 20 Mbps
- Motion detection: 22x18 selectable grid, adjustable sensitivity, masking/video loss detection
- Alarm channels: 16 in / 8 out
- Up to 16 channel @ 1080P playback (4 channel max. 12MP @ 20 fps)
- Internal storage: 16 SATA III ports, up to 6TB per port (HDD not included)
- HDD modes: Simple, Raid 0, Raid 1, Raid 5, Raid 6, Raid 10, Raid 50, Raid 60
- Mirror copy (or redundant) with more than 1 HDD
- External storage: 1 eSATA port
- 2 fiber optic ports
- Network interface: 4 RJ45 (10/100/1000M) ports
- Network protocols: HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search, P2P
- ONVIF Versión 2.4
- Remote access up to 128 users
- Connections: 4 USB (2 USB 3.0 + 2 USB 2.0), 1 RS485, 1 RS232, 1mini SAS
- Local network and Internet server access
- Independent motion detection configuration
- Compatible with 3D positioner function (compatible PTZ domes)
- Software and hardware watchdog
- Watermark
- Limit user acces to cameras on local/remote mode
- Masking areas, alarm by video loss/blank
- Multilanguage screen display
- Display, configuration and remote control by TCP/IP with client program and web browser (Firefox, Chrome, IE)
- Email sended with attached picture
- Programmed FTP or alarmed sending
- Display on iPhone, iPad and Android
- Fixed / dynamic IP via Dyndns service, NoIP, DDNS Evolution, etc.
- Power supply: 110V ~ 240V AC, 50/60 Hz
- Consumption: <60W (without HDD)
- Working temperature: -10°C ~ +55°C
- RH: 10~90%
- Dimensions: 485 x 516,6 x 133,2 mm (2U rack)
- Weight: 17,45 kg (without HDD)
