- SKU: CV608ZKIB-F4N1
- 1080p PRO Bullet camera
- 4 in 1 (HDTVI / HDCVI / AHD / CVBS)
- 1/2.7" Aptina© 2.1 Mpx AR0237
- 2.8~8 mm Varifocal lens
- 12 IR LEDs range 20 m
- OSD Menu
Varifocal bullet camera with infrared, valid for outdoor use. Technology 4 in 1 (HDTVI / HDCVI / AHD / CVBS) Range 1080p PRO.
Consisting of a sensor 1/2.7" Aptina© 2.1 Megapixel (model AR0237) and DSP (model V30), that offers a resolution of 1080p to 25 FPS. Motorised Vari-focal lens 2.8 ~ 8mm with Autofocus. 12 IR LED's with light sensor, for sharp images at 0Lux (total darkness) at a maximum distance of 20 metres. It has automatic IR Cut filter that permits clear, real colour, daytime images.

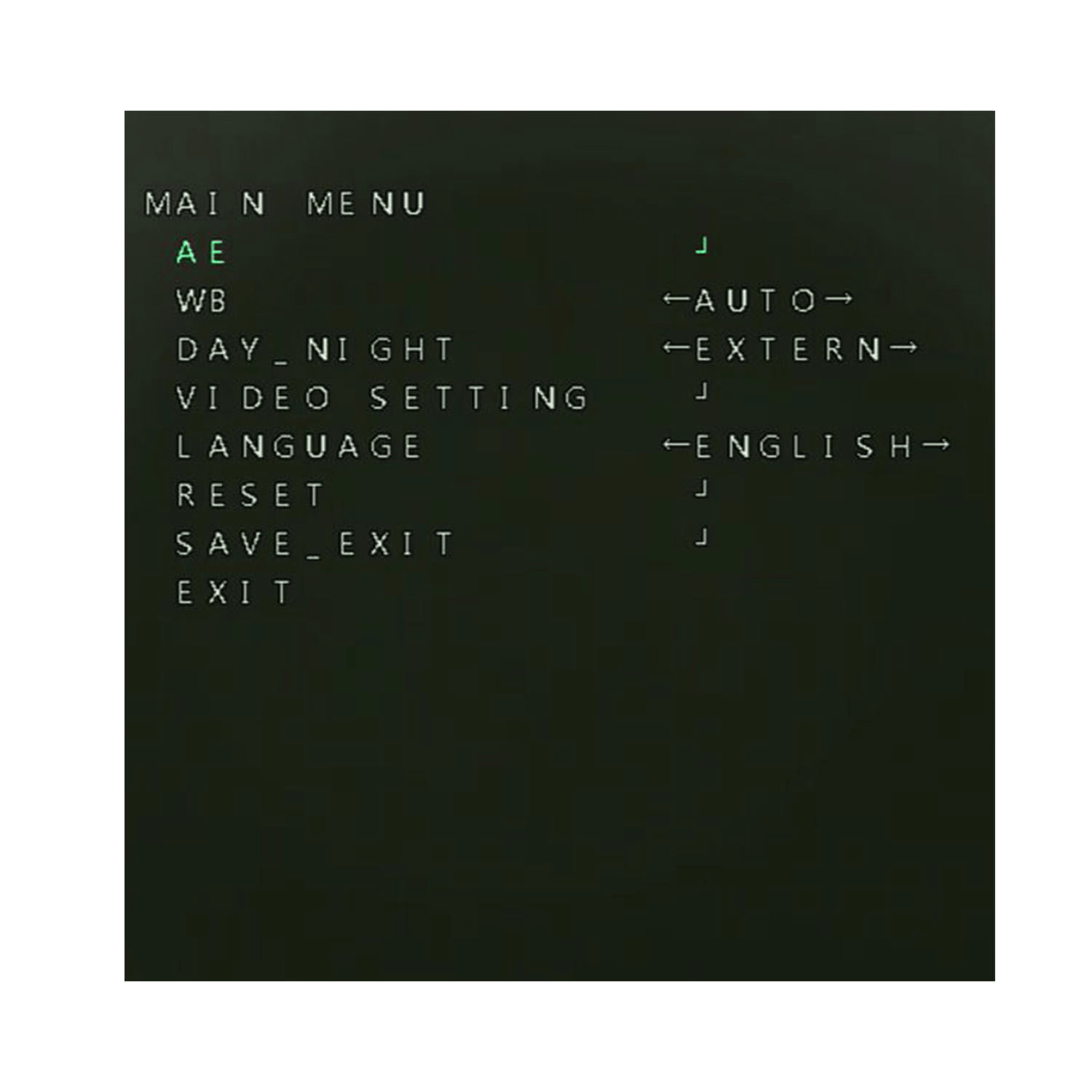

Thanks to its DSP it has OSD menu in HD formats, accessible remotely from the recorder via the coaxial cable, which allows you to configure the camera and adjust the most important parameters:
- CV608ZKIB-F4N1
- AE Shutter, automatic exposure control to optimize the input of received light
- 2D-NR, digital noise reduction system without loss of focus
- AWB, automatic white balance for true colours

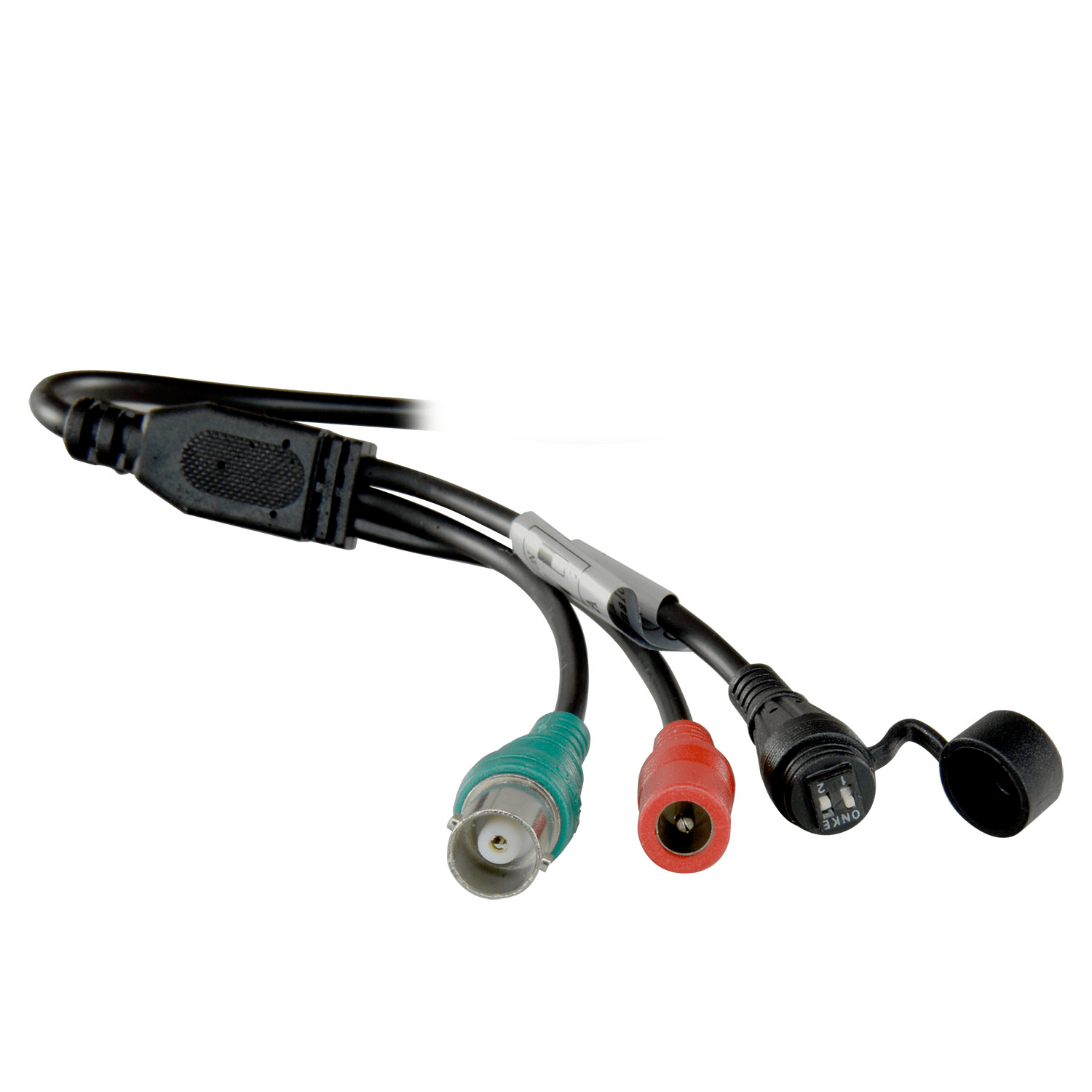

BNC video connection in high definition formats HDTVI / HDCVI / AHD / CVBS, switchable with button.

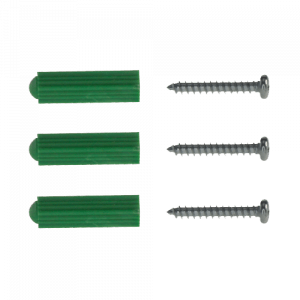

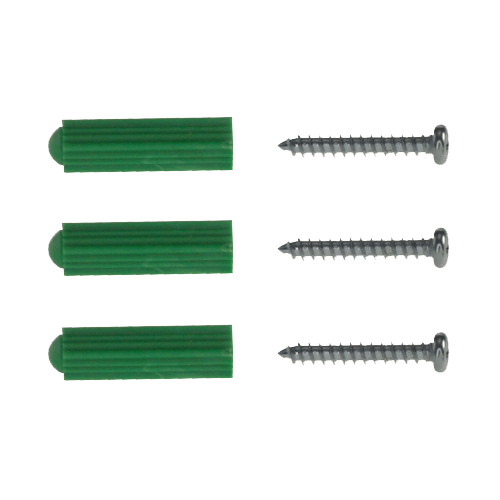

Aluminium and PVC casing, water resistant to IP66, for interior and exterior use. Easy installation in wall or ceiling due to its 360º bracket.
| SKU | CV608ZKIB-F4N1 |
| Range | 1080p PRO |
| Image sensor | 1/2.7" Aptina© 2.1 Megapixel (model AR0237) |
| DSP | V30 |
| Resolution | HD 1080p (1920x1080) at 25 FPS |
| Video output | 1 x BNC switchable HDTVI 2.0 / 4N1 / AHD / CVBS |
| Minimum illumination | 0 Lux / 12 LEDs IR (20 m) |
| Basic functions | OSD menu, Day/Night with IR-CUT (ICR) |
| Configurable OSD functions | DWDR, 2D-NR, AE, AWB, AGC |
| Lens | Motorised varifocal with Autofocus 2.8 ~ 8mm (94º ~ 55º) |
| Power | DC 12 V / 600 mA max. |
| Degree of protection | Weatherproof IP66 |
| Temp. operation | -10º C ~ +50º C |
| Dimensions | 200 (H) x 65 (Ø) mm |
| Weight | 300 g |
