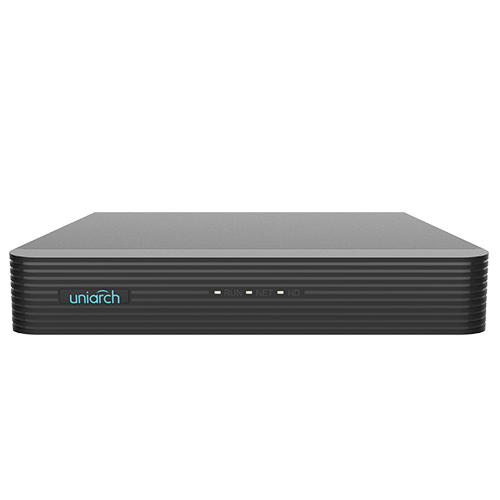

Video recorder 5n1 - UV-XVR-116G2

SKU: UV-XVR-116G2
incl. VAT€194,25
Price incl. VAT: €194,25
Ex. VAT: €155,40
Total discount:
VAT: €38,85
  • SKU: UV-XVR-116G2
  • Video recorder 5n1
  • Uniarch
  • 16 CH HDTVI / HDCVI / AHD / CVBS + 8 extra IP
  • Audio
  • Supports 1 hard disk
+50 on stock
Product description: UV-XVR-116G2
  • UV-XVR-116G2
  • Uniarch
  • DVR 5n1
  • 16 BNC video CH (IP-replaceable)
  • AHD, TVI, CVI, CVBS, CVBS
  • 40 Mbps bandwidth supported
  • Maximum IP resolution 8 Mpx
  • Maximum analog resolution 5 Mpx
  • Audio
  • HDMI and VGA output
  • RS485
  • 2 x USB 2.0
  • Mouse
  • Space for 1 HDD up to 6 TB
  • WEB, CMS, Smartphone and NVR interface
  • ONVIF Compatible
SKU UV-XVR-116G2
BrandUniarch
Video formatHDTVI / HDCVI / AHD / CVBS / IP
Video inputs16CH BNC
Hybrid configurationUp to 16 IP Channels (8Mpx) replacing all the BNC channels
Video outputs1 HDMI Full HD, 1 VGA
Audio inputs1 Channel RCA
Audio outputs1 Channel RCA
Bidirectional audioReusing the audio input/output
Display resolution1920x1080, 1600x1200, 1280x1024, 1280x720, 1024x768
Maximum IP recording resolution8 Mpx
Analog cameras supportedTVI / AHD: 5MP@12FPS; 4MP@15FPS; 1080P@30FPS

CVI: 1080P@30FPS; 720@30FPS

*For the correct live display, the combination of resolution and FPS
of the connected analog cameras must be equal to or lower than the specifications indicated, but in no case higher than the specifications indicated.
Main Stream recording encodingTVI/CVI/AHD 5MPLite@6FPS; 4MPLite@8fps; 1080PLite@15FPS; 720P@15FPS
Extra Stream recording encodingD1@6FPS; D1@8FPS; D1@10FPS
Recording methodManual, programmed, motion detection
Internal memory1 HDD SATA 3.5" of up to 6TB (not included)
External interface2 x USB (Mouse and backup) / RJ45 10M/100M/1000M (Ethernet) / RS485
Remote accessWeb Browser, CMS Software (EZStation), Smartphone (EZView/EZLive)
PowerDC 12V / 10W
Dimensions / Weight39 (H) x 260 (W) x 243 (Fo) mm / 1.1 kg
