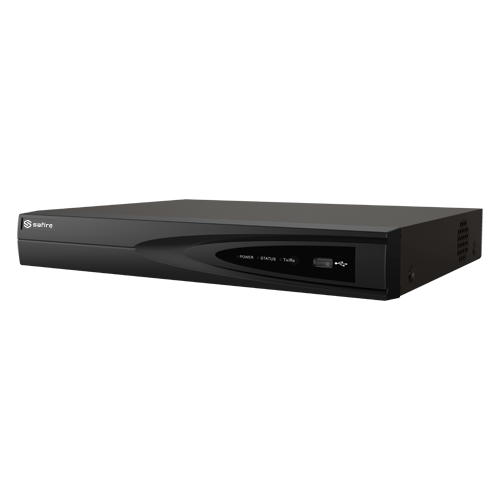

Safire 5n1 DVR - SF-XVR8104AS-4KL-1FACE

SKU: SF-XVR8104AS-4KL-1FACE

incl. VAT€132,14

Price incl. VAT: €132,14

Ex. VAT: €105,71

Total discount:

VAT: €26,43

SKU: SF-XVR8104AS-4KL-1FACE
Safire 5n1 DVR
Audio over coaxial cable
4CH HDTVI/HDCVI/AHD/CVBS/ 4+2 IP
8 Mpx (8FPS) / 5 Mpx (12FPS)
Outputs 2K HDMI & VGA
Rec. Facial and Truesense

+50 on stock

Back to: DVRs

Product description: SF-XVR8104AS-4KL-1FACE

Description
Specification

SF-XVR8104AS-4KL-1FACE
Safire
DVR 5n1
4 CH HDTVI/HDCVI/AHD/CVBS video /4+2 IP / 4 CH audio
H.265Pro+/H.265Pro/H.264+/H.264
8Mpx (8FPS) or 5Mpx (12FPS) resolution
PTZ Control (RS485/Coaxial)
Audio over coaxial
HDMI 2K, VGA & CVBS Outputs
1CH Facial Recognition
TrueSense, false alarm filter for vehicles and people (Available for 4 CH for coaxial video)
Alarms
Mouse
Space for 1 HDD

SKU	SF-XVR8104AS-4KL-1FACE
Brand	SAFIRE
Video format	HDTVI / HDCVI / AHD / CVBS / IP
Video inputs	4 Channels BNC, (HDTVI / HDCVI / AHD / CVBS)
Hybrid configuration	Default: 4 Channels from BNC and 4 (replacement) + 2 (extra) IP Channels (up to 8Mpx) Enhanced IP Mode: 4 Channels from BNC and 4 (replacement) + 4 (extra) IP Channels (up to 8Mpx) Enhanced IP mode limits bandwidth to 4Mbps per IP channel
Input bandwidth	32 Kbps to 10 Mbps
Video outputs	1 HDMI 2K, 1 VGA, 1 BNC (CVBS) Independent * HDMI and VGA are simultaneous
Audio	4ch on Coaxial cable (HDTVI), 1 input / 1 output RCA
Bidirectional audio	Using Audio Inputs and RCA Output
Video / audio compression	H.265Pro+ / H.265Pro / H.264+ / H.264 / G.711u
Display resolution	HDMI: 2K (2560x1440), 1920x1080, 1280x1024, 1280x720, 1024x768 VGA: 1920x1080, 1280x1024, 1280x720, 1024x768
BNC input resolution	8Mpx / 5Mpx / 4Mpx / 3Mpx / 1080p / 720p
Main Stream coding	8 Mpx (8 FPS), 5Mpx (12 FPS), 4Mpx (15 FPS), 3Mpx (18FPS), 1080p / 720p / VGA / WD1 / 4CIF / CIF (25 FPS) * 8 Mpx (8FPS) only available on the channel 1
Extra Stream coding	WD1 / 4CIF (12FPS) / CIF (25 FPS)
Simultaneous multifunction	Pentaplex: Live, Recording, Playback, Backup and Remote Access
Alarms IN / OUT	4 / 1
Advanced features	Facial recognition: Up to 1 analog channel for face comparison Truesense: Up to 4 channels (False alarm filter capable of classifying objects between humans and vehicles) Note: TrueSense and Facial Recognition cannot be enabled at the same time.
Recording method	Manual, programmed, motion detection, alarm
Backup	USB / Network / Cloud (Microsoft One Drive, Dropbox)
Internal memory	1 HDD SATA 3.5" of up to 10TB (not included)
Communication	RS485 (PTZ) / 2 x USB 2.0 (Mouse and Backup) / RJ45 (Ethernet)
Remote access	Web browser, Smartphone App and Safire Control Center CMS Software
Power	DC 12 V / 1.5 A (HDD Consumption < 10 W)
Dimensions / Weight	45 (H) x 315 (W) x 242 (D) mm / 1.16 Kg
