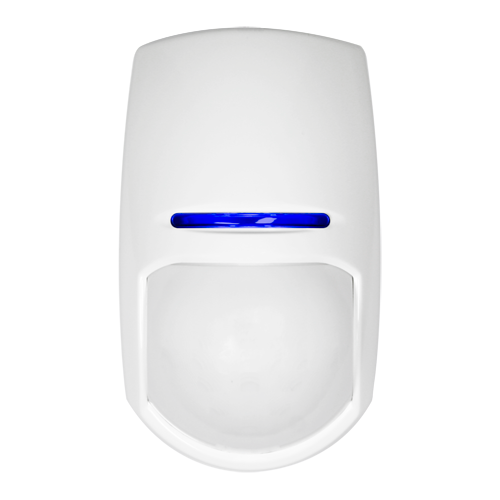

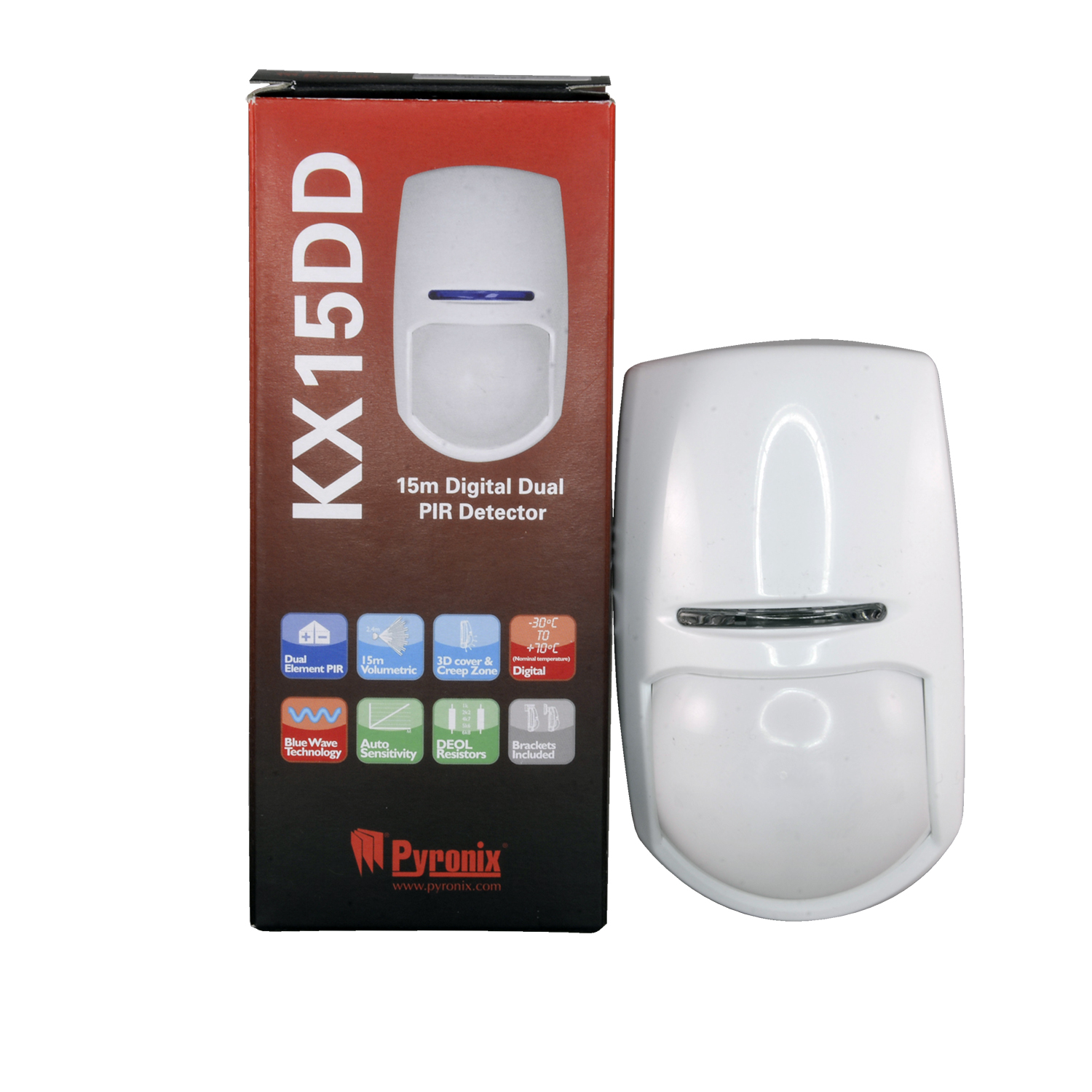

PIR detector - KX15DD

0 Rating
incl. VAT€14,01
Price incl. VAT: €14,01
Ex. VAT: €11,21
Total discount:
VAT: €2,80
In Stock
  • SKU: KX15DD
  • PIR detector
  • For interior use
  • 1 Dual Infrared Sensor
  • Wired
  • Detection Range 15 m
  • Certificate Grade 2
Gls 1
Ups 1
1-4 Days delivery
 Back to: Alarms
Cards 1

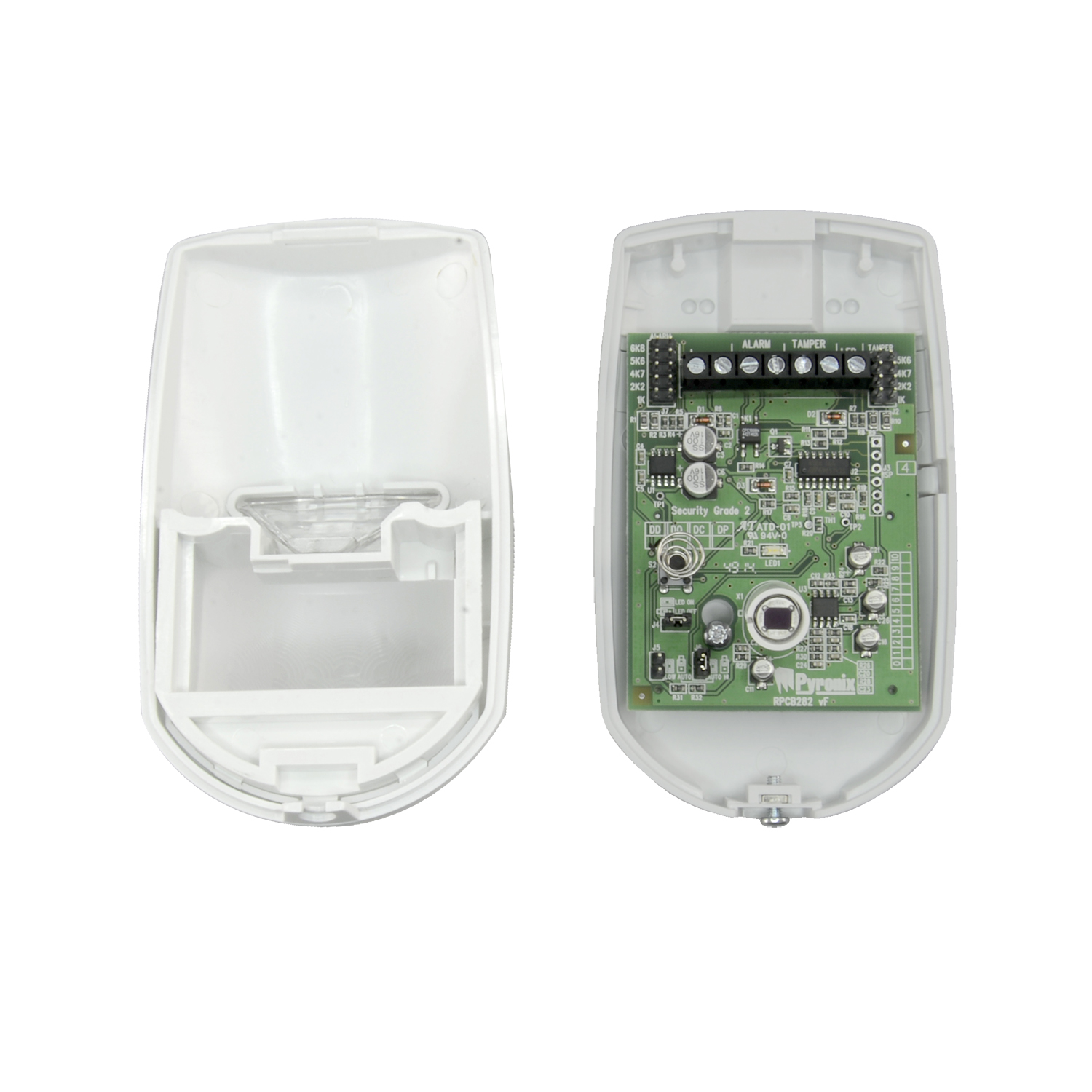

Pyronix high-security volumetric PIR detector. Cabled, for interior use.

Highly reliable wired motion detector, specifically designed for covering indoor areas. Effective detection thanks to its dual passive infrared sensor and Blue Wave technology which reduces IR signal noise and improves its immunity to false alarms.

It is a high protection device with certificate 2, that incorporates multiple improvements that increase the system security:

  • KX15DD
  • Long Range PIR detection with 60 zones and 7 planes

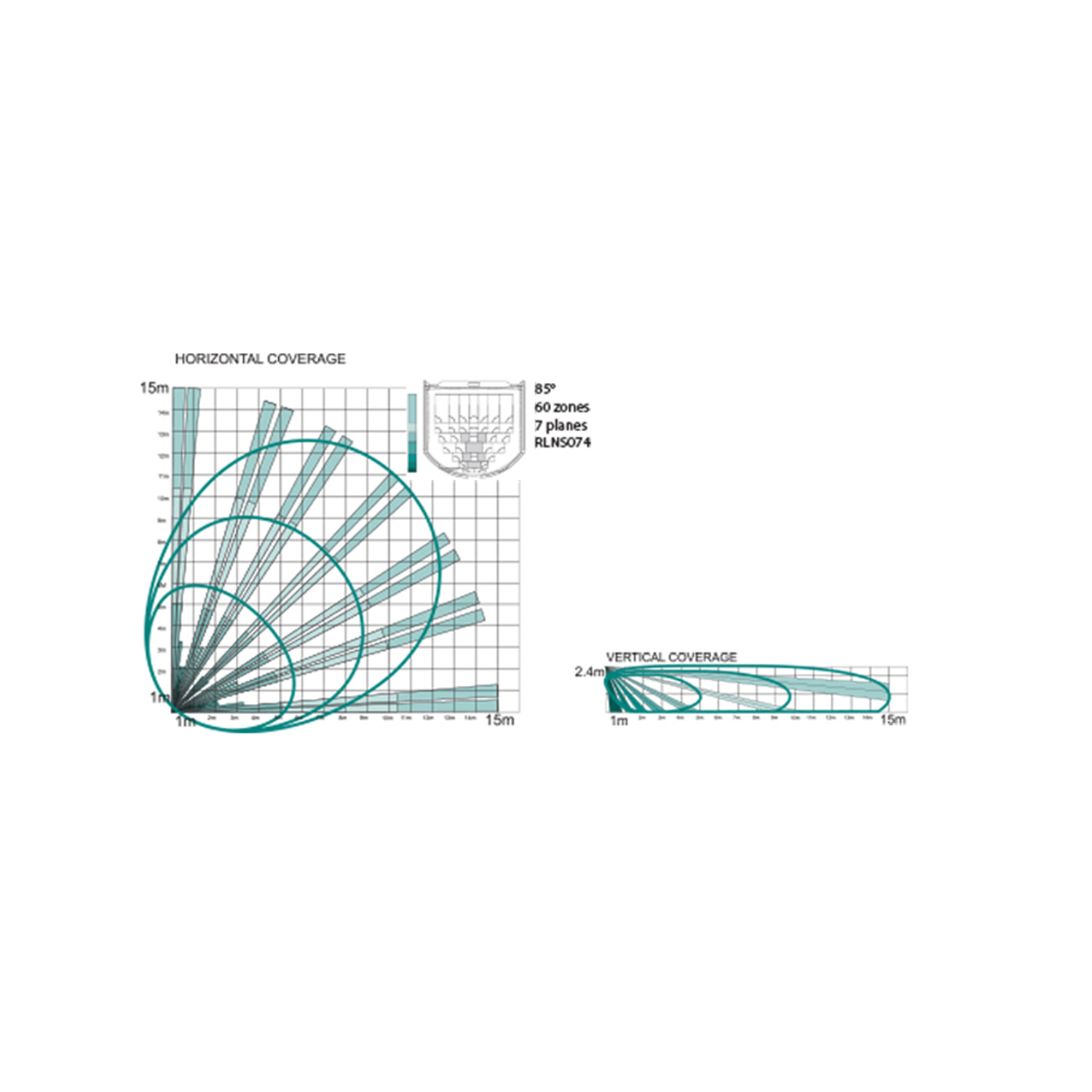

  • Large coverage thanks to its lens 3D (15m in 85º for H = 2.4m)
  • Automatic (and manual) sensibility adjustment
  • Automatic compensation of ambient temperature
  • Detection speed 0.3~3 m/s
  • Sealed optics to avoid false detection's by insects or air currents
  • EOL Selector (resistance) SEOL / DEOL
  • Tamper-resistant opening
  • LED indicator assists with configuration

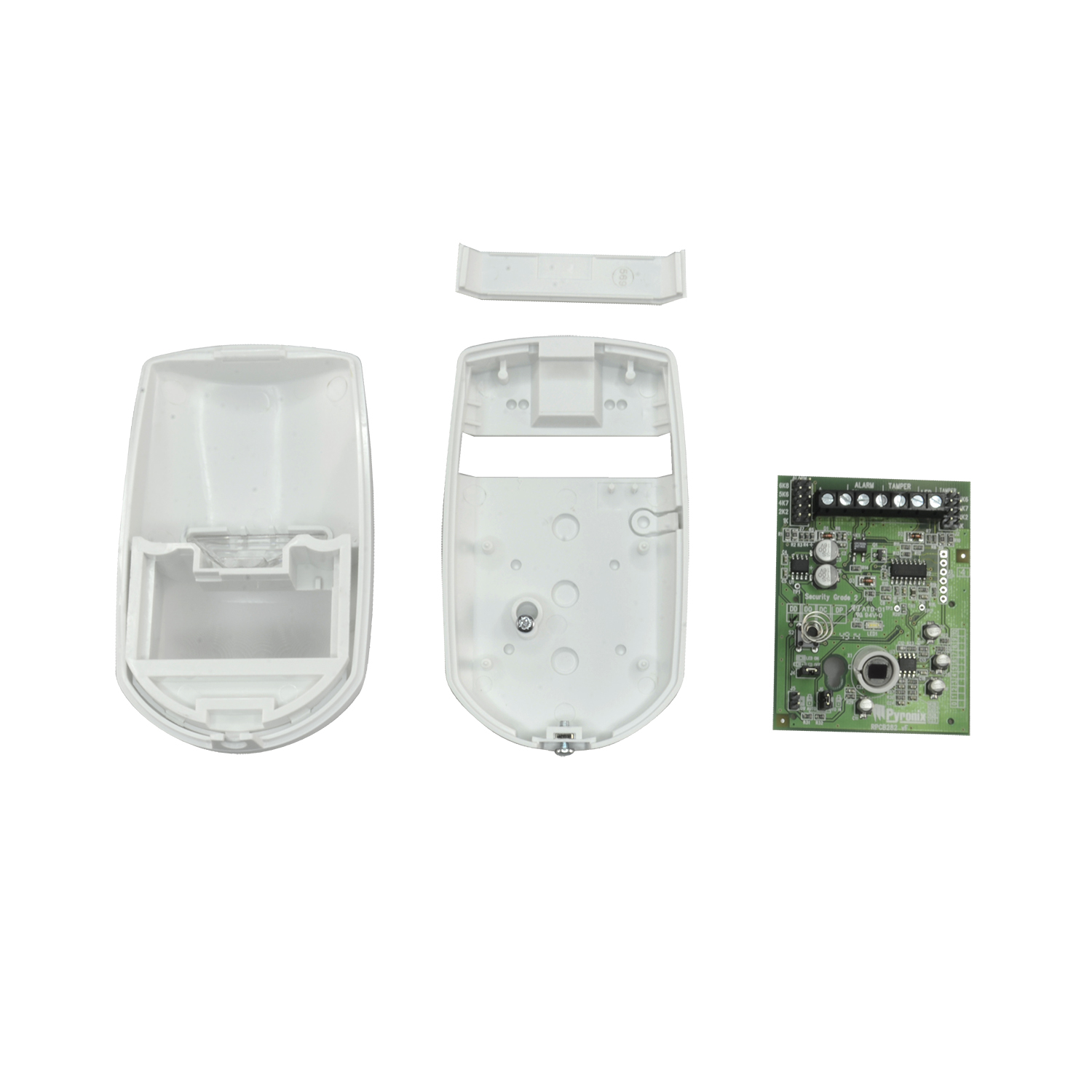

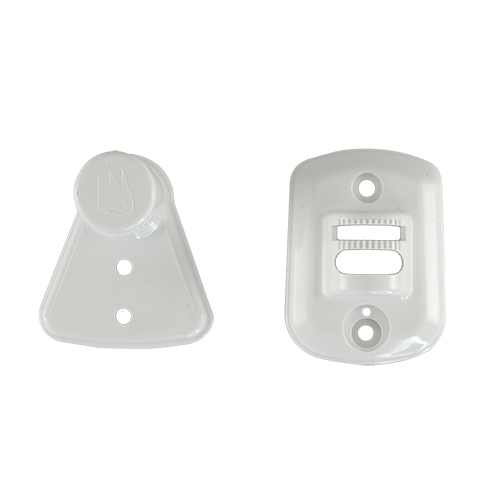

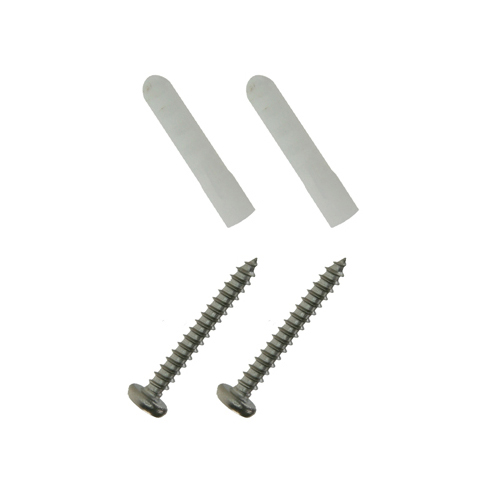

Casing manufactured in 4mm ABS (DE polished) to reduce static electricity in the detector. Wall and ceiling mounts included.

Brand Pyronix
Technology 1 x dual PIR
PIR lens 60 zones and 7 planes
Detection range 15 m / 85º for installation height = 2.4 m
Pet immunity No
Masking No
Sensitivity Automatic adjustment, High or Low
Detection speed 0.3~3 m/s
Relay Output DC 60 V / 50 mA
Tamper switch DC 12 V / 50 mA
Power supply DC 9~16 V / 13~16 mA @ DC 12 V
Temp. operation -30º C ~ 70º C
Dimensions (without bracket) 114 (H) x 67 (W) x 47 (D) mm
