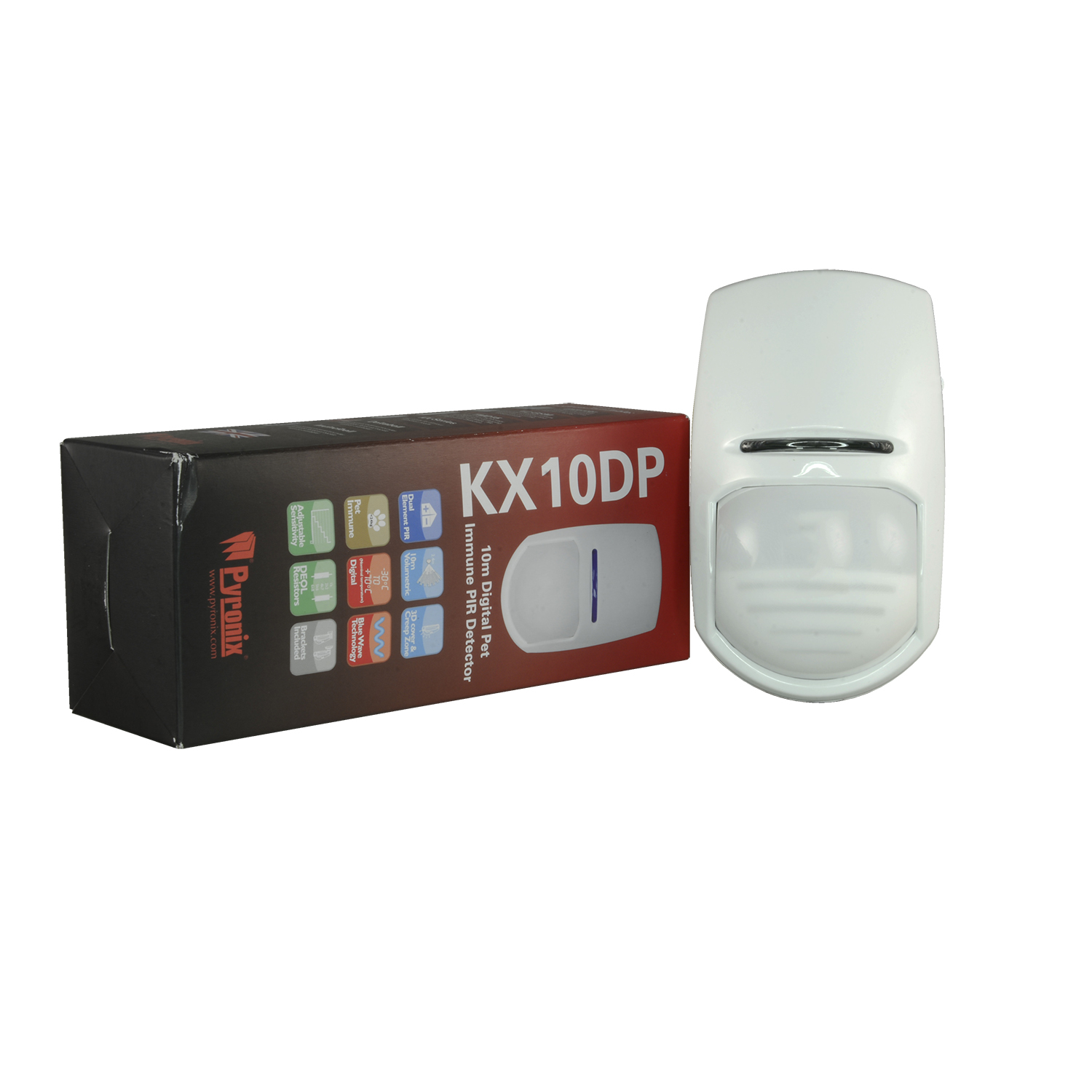

Pet-immune PIR Detector - KX10DP

0 Rating
incl. VAT€14,23
Price incl. VAT: €14,23
Ex. VAT: €11,38
Total discount:
VAT: €2,85
In Stock
SKU: KX10DP
  • SKU: KX10DP
  • Pet-immune PIR Detector
  • For interior use
  • 1 Dual Infrared Sensor
  • Wired
  • Detection Range 10 m
  • Certificate Grade 2
Gls 1
Ups 1
1-4 Days delivery
 Back to: Alarms
Cards 1

Pyronix high-security volumetric PIR detector. Wired, pet proof, for interior use.

Highly reliable wired motion detector, designed to cover indoor areas and avoid false detections due to the presence of pets. Effective detection thanks to its dual passive infrared sensor and Blue Wave technology which reduces IR signal noise and improves its immunity to false alarms.

It is a high protection device with certificate 2, that incorporates multiple improvements that increase the system security:

  • KX10DP
  • Long Range PIR detection with 70 zones and 6 planes

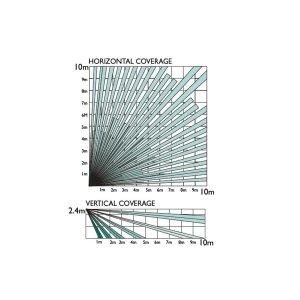

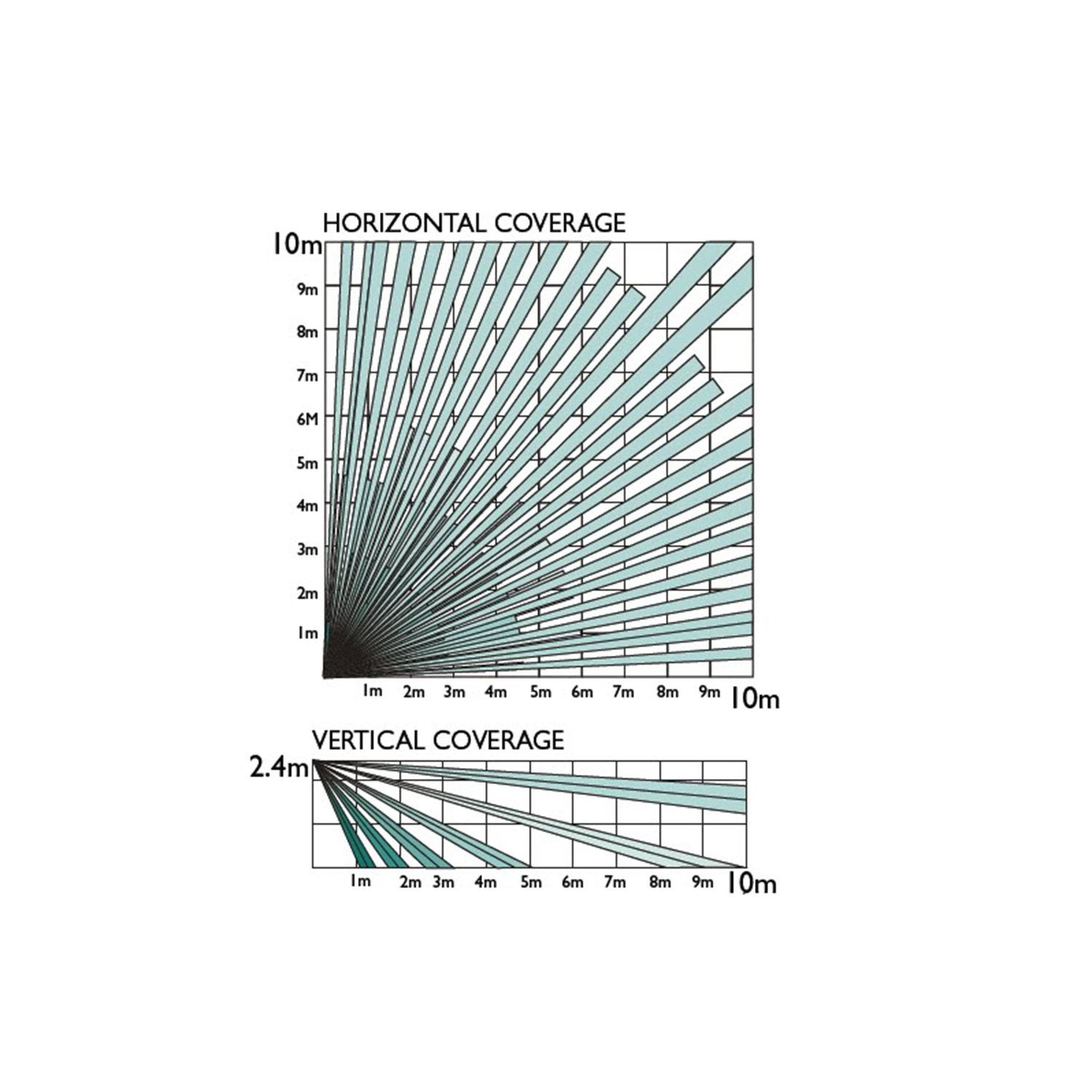

  • Large coverage thanks to its lens 3D (10m in 85º for H = 2.4m)
  • Pet immunity (≤ 24 Kg for HP = 2.4 m)
  • Automatic (and manual) sensibility adjustment
  • Automatic compensation of ambient temperature
  • Detection speed 0.3~3 m/s
  • Sealed optics to avoid false detection's by insects or air currents
  • EOL Selector (resistance) SEOL / DEOL
  • Tamper-resistant opening
  • LED indicator assists with configuration

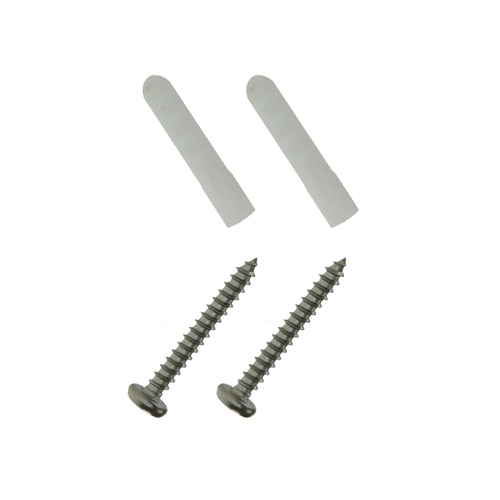

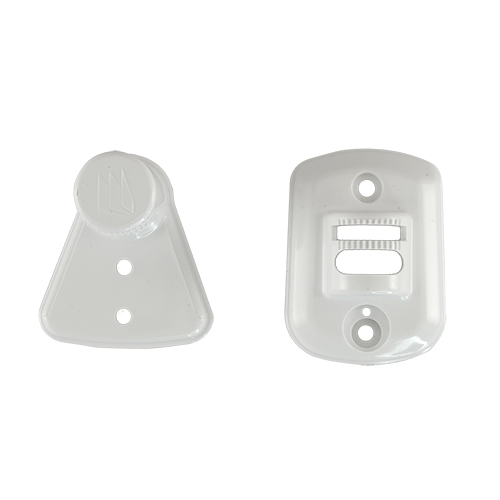

Polished 4mm ABS plastic housing which reduces static in the detector. Wall and ceiling mounts included.

SKU KX10DP
Brand Pyronix
Technology 1 x dual PIR
PIR lens 70 zones and 6 planes
Detection range 10 m / 85º for installation height = 2.4 m
Pet immunity ≤ 24 Kg
Masking No
Sensitivity Automatic adjustment, High or Low
Detection speed 0.3~3 m/s
Relay Output DC 60 V / 50 mA
Tamper switch DC 12 V / 50 mA
Power supply DC 9~16 V / 13~16 mA @ DC 12 V
Temp. operation -30º C ~ 70º C
Dimensions (without bracket) 114 (H) x 67 (W) x 47 (D) mm
