incl. VAT€132,80
Price incl. VAT: €132,80
Ex. VAT: €106,24
Total discount:
VAT: €26,56
- SKU: ADV-20-VMIC602

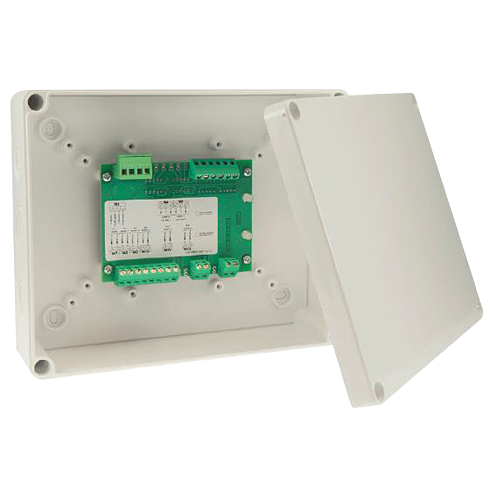

- Advanced Analog Module
- 6 supervised inputs and 2 relay outputs
- Built-in short-circuit isolator
- Compatible with Argus Vega protocol
- Conductor cable up to 2.5mm2
- Certificate EN54-17
Sold out / Not on stock
Product description: ADV-20-VMIC602
- ADV-20-VMIC602
- Advanced
- Module of 6 supervised inputs and 2 relay outputs
- Loop powered
- Short circuit isolators on each device according to the requirements of EN54-17
- Ability to address automatically (via control panel) or manually via a portable programmer
- Two-way digital testing
| SKU | ADV-20-VMIC602 |
| Brand | Advanced |
| Voltage DC | Nominal Relay Switching current 24V (18~40V) |
| Average consumption | 500μA |
| LED Consumption (Max.) | 6mA@24VDC |
| Accepted plug in | Accepted plug in up to 2.5mm2 |
| End-of-line resistor (REOL) | 27Kohm |
| Alarm resistance (Rsw) | 10Kohm |
| Relay Nominal Switching Current | 30VDC / 2A max. |
| Monitoring voltage | 24VDC, 30VDC |
| Operating temperature range | -30ºC ~ +70ºC |
| Humidity (non condensing) | 85% RH |
| Dimensions | 210 x 170 x 65 mm (H x W x D) |
| Weight | 470g |
| IP protection | IP65 |
| Certification | EN 54-17 |
