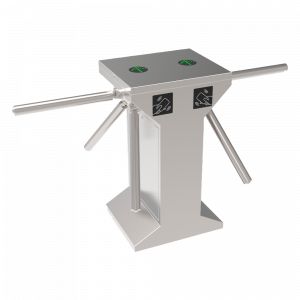

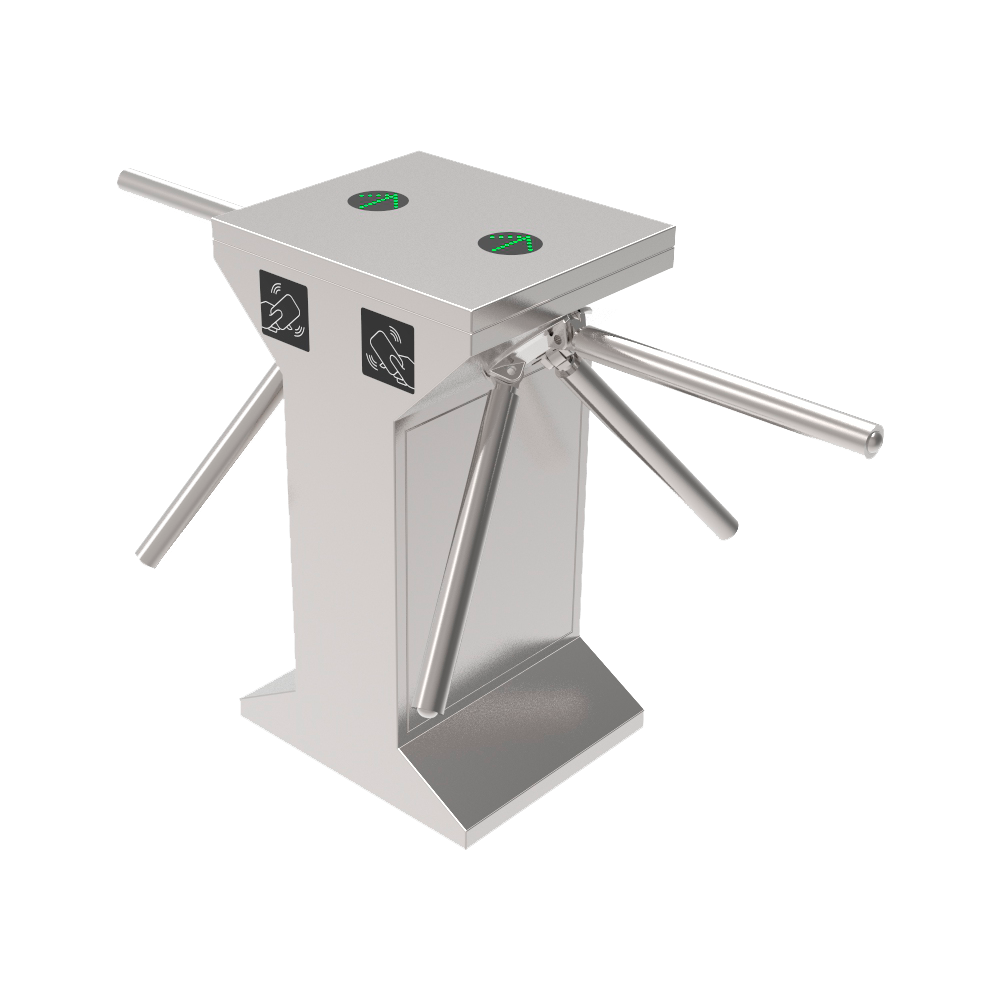

Double bi-directional access turnstile - TS-TR601-M

SKU: TS-TR601-M
incl. VAT€1786,41
Price incl. VAT: €1786,41
Ex. VAT: €1429,13
Total discount:
VAT: €357,28
  • SKU: TS-TR601-M
  • Double bi-directional access turnstile
  • 3 Semi-automatic double rotary arms
  • Times, Alarms, Opening Modes
  • Pitch dimensions 550 mm each side
  • Stainless steel SUS304 of 1.5 mm
  • Compatible with third party systems
+50 on stock
Product description: TS-TR601-M
  • TS-TR601-M
  • Double tripod winch with two bidirectional accesses
  • Semi-automatic rotary barrier movement
  • Access width 550 mm on each side
  • Led indicator
  • Emergency mode
  • Main board for configuration of the turnstile (Opening times, Counter, Relay inputs)
  • Made of stainless steel SUS304
  • Configuration Modes: One or two directions with access control, free passage in one or two directions
  • Plug & Play compatible with third party access control systems
  • Universal covers for card readers
ModelTS-TR601-M
ControllerTurnstile control board compatible with any Access Control system
Led indicatorLED status indicator
Barrier movementTripod rotation mechanically pushed by the user
Emergency modeEmergency turnstile folding in case of power loss
Security3 Arms on each side / Anti-tailgating Safety
CompatibilityIntegrates with any Plug&Play third-party access control / Universal RFID reader caps
Configuration ModesOne or two-way / Free passage in one direction and mechanically configured access control in the opposite direction
Manufacturing materialStainless steel SUS304 of 1.5mm thickness and PC caps
Passage speed30-35 persons/minute
Reliability5.000.000 of cycles
PowerAC 110/220 V / 35W max
Temp. operation-25º C ~ +70º C
Lane Width550 mm each line
Dimensions of pass550 (w) x 480 (d) mm
Dimensions960 (H) x 560 (W) x 480 (D) mm
Weight69 Kg
