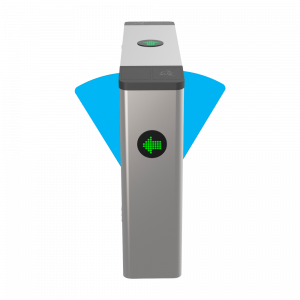

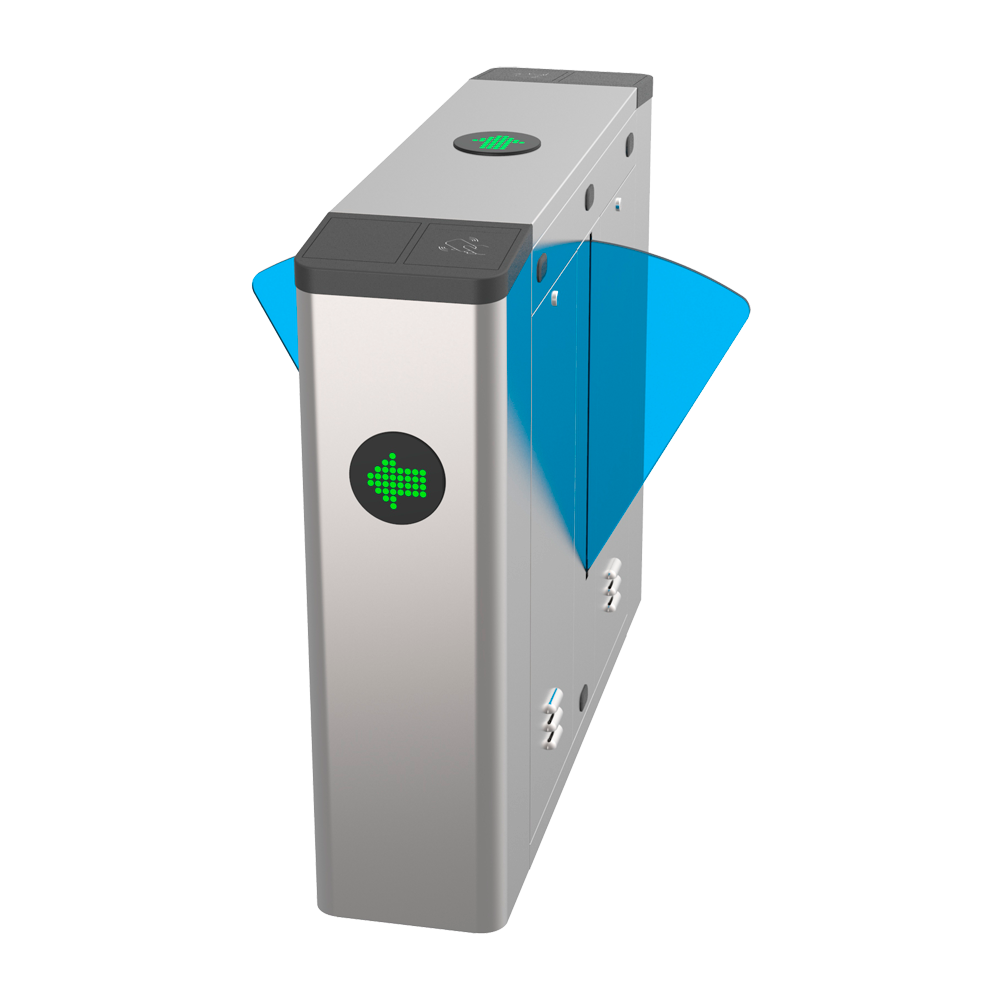

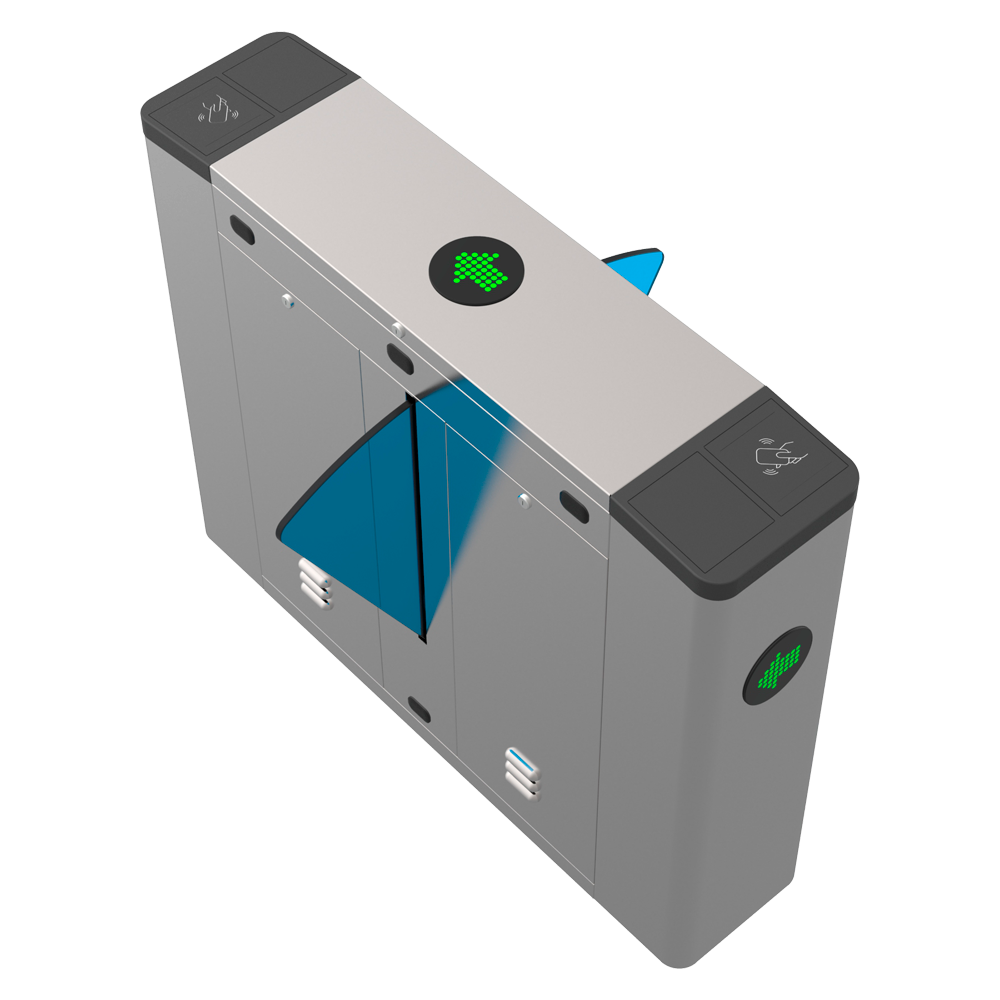

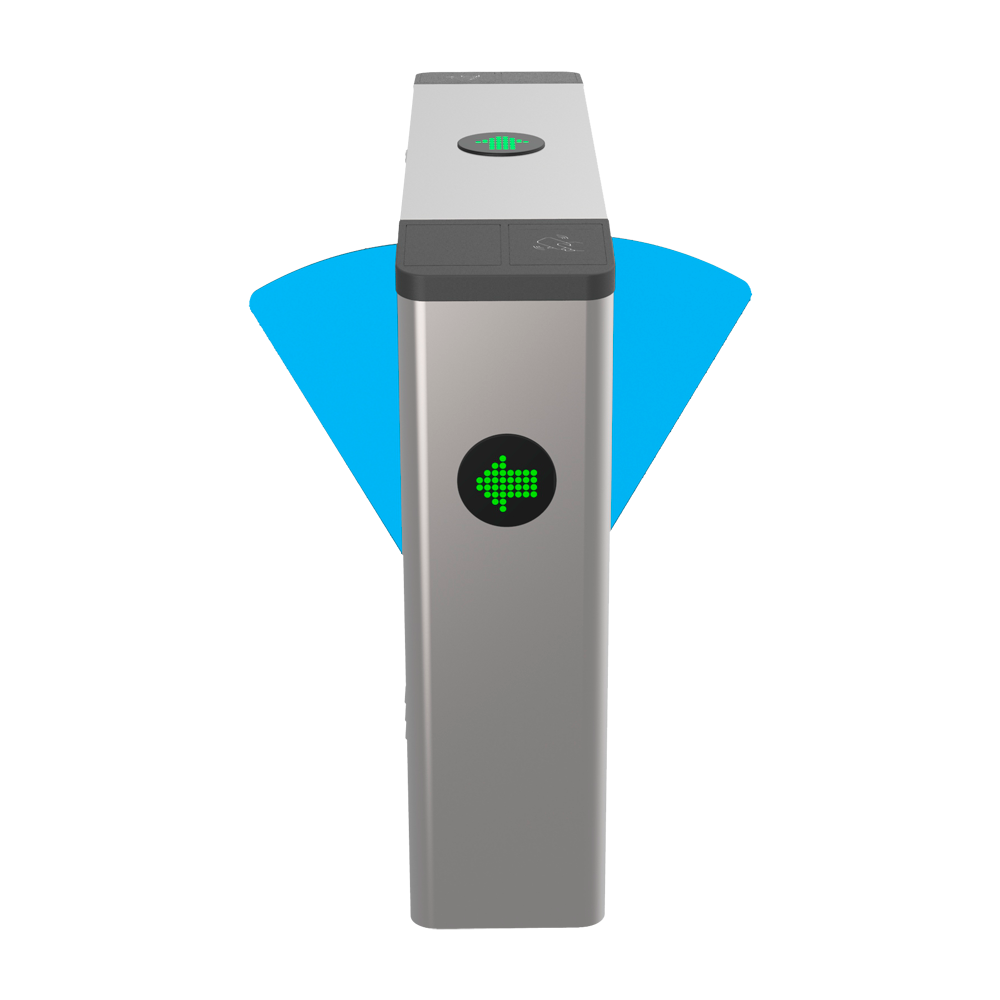

Double bi-directional access turnstile - TS-FB701-M

SKU: TS-FB701-M
0 Rating
incl. VAT€2230,59
Price incl. VAT: €2230,59
Ex. VAT: €1784,48
Total discount:
VAT: €446,12
  • SKU: TS-FB701-M
  • Double bi-directional access turnstile
  • Retractable acrylic barrier gate
  • Times, Alarms, Opening Modes
  • Step dimensions 550 mm
  • Made of stainless steel SUS304

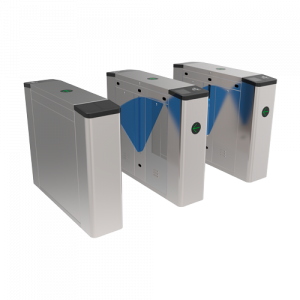

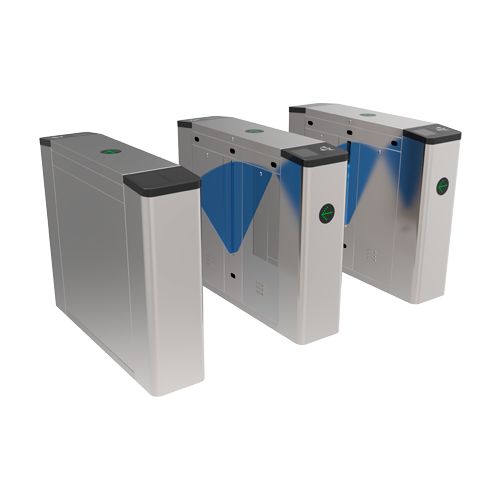

  • Adds access corridors to TS-FB701
Gls 1
Ups 1
1-4 Days delivery
+50 on stock
  • TS-FB701-M
  • Bi-directional motorized two-way turnstile with two passages
  • Automatic retracting movement of the acrylic barrier
  • Access width 550 mm
  • Led indicator
  • Emergency mode

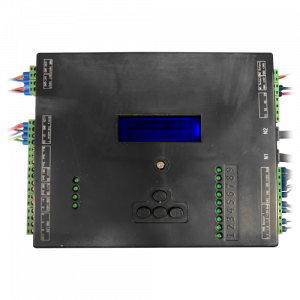

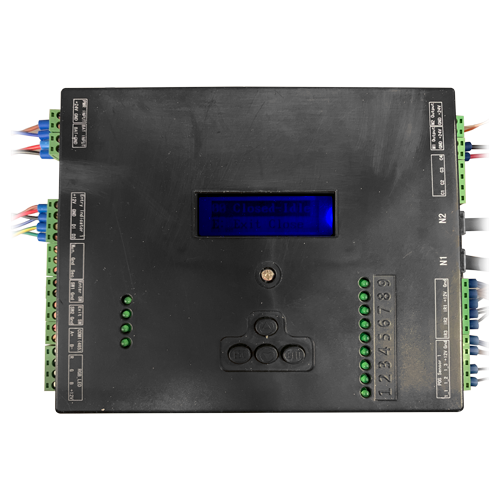

  • Main board with display for configuration of the turnstile (opening times, counter, relay inputs)
  • Secondary board for connection to main board
  • Made of stainless steel SUS304 and acrylic barriers
  • Configuration Modes: One or two-way, One or two-way free movement
  • Compatible with third-party Plug&Play access control systems
  • Universal covers for card readers
  • Each unit adds an additional aisle to TS-FB701
  • TS-FB701 required for full installation
ModelTS-FB701-M
ControllerTurnstile control board compatible with any Access Control system with display
Led indicatorLED status indicator
Barrier movementRetractable folding for opening of the acrylic barrier inside the turnstile
Emergency modeEmergency barrier opening with fire signal
SecurityConfigurable anti-tailigating with sound and lock
CompatibilityCan be integrated with any third party access control Plug & Play / Universal Covers for RFID readers
Configuration ModesOne or two directions / Free passage in one direction and access control in the opposite direction
Manufacturing materialStainless steel SUS304 with acrylic barriers and PC covers
Passage speed35-40 persons/minute
Reliability5.000.000 of cycles
PowerAC 110/220 V
Temp. operation-28º C ~ +60º C
Lane Width550 mm (medium turnstile, size 225 mm)
Dimensions of pass550 (w) x 1200 (d) mm
Dimensions980 (H) x 280 (W) x 1200 (D) mm
Weight48 Kg
