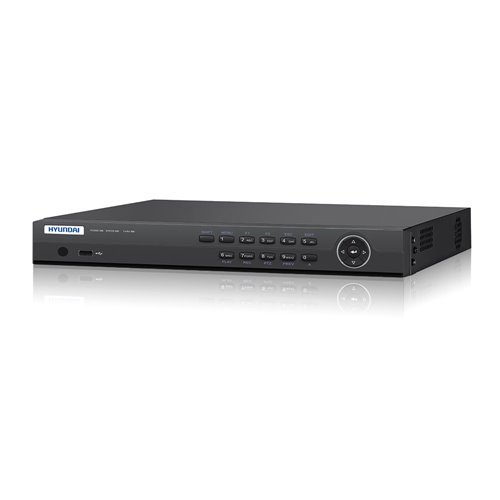

ZVR7216-A-3M - 16 channel 5 in 1 ZVR HDCVI/HDTVI/A…





- 16 channel 5 in 1 ZVR (H.264+/H.264)
- 5 technologies: IP camera, HDCVI, HDTVI, AHD, CVBS
- H.264+ compression to improve encoding efficiency by up to 50% and reduce data storage costs
- G.711u
- 16 BNC inputs (coaxitron supported):
  - HDCVI: 1080p/720p
  - HDTVI: 3MP/1080P/720P
  - AHD: 720p
  - CVBS: 960H
- Input for IP cameras: 2 channel 4MP
- BNC output with 704x576 resolution, VGA and HDMI with 1920x1080 resolution
- 2 way audio: 4 RCA in/ 1 RCA out
- Display resolution: 3MP, 1080P, 720P, 960H, D1/4CIF, VGA, CIF, QVGA, QCIF
- Recording resolution: 3MP, 1080P, 720P, 960H, D1/4CIF, VGA, CIF, QVGA, QCIF
- Main stream: 3MP (15 fps), 1080P, 720P, 960H, D1/4CIF, VGA, CIF (25/30 fps)
- Stream 2: 960H, D1/4CIF (12 ips), CIF, QVGA, QCIF (25/30 fps)
- 16 simultaneout display
- Alarm: 16in / 4 out
- 2 HDD SATA up to 6TB (not included)
- Intelligent search for efficienct playback
- Multiple VCA events supported (analog or IP intelligent cameras)
- Video quality diagnosis (VQD)
- Network interface: RJ45 (10/100M), auto-adaptive
- Network protocols: TCP/IP, PPPoE, DHCP, P2P, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS
- ONVIF compatible
- Up to 128 remote users
- Remote access via iPhone/iPad or Android devices
- Compatible with the following web browsers: Chrome, Firefox, Safari, IE
- P2P cloud and DDNS service
- Cloud storage supported: Dropbox, Google Drive, Microsoft OneDrive
- Connections: 1 USB 2.0 (front panel), 1 USB 3.0 (rear panel), 1 RS485 half-duplex
- Power supply: 12V DC
- Consumption: <20W
- Working temperature: -10ºC ~ +55ºC
- RH: 10~90%
- Dimensions: 380 x 320 x 48 mm (desktop)
- Weight: <2 kg
