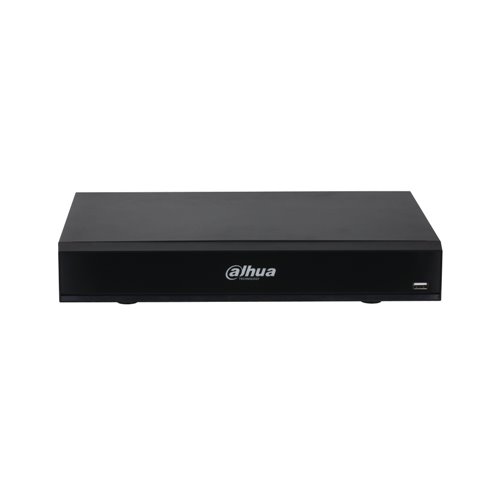

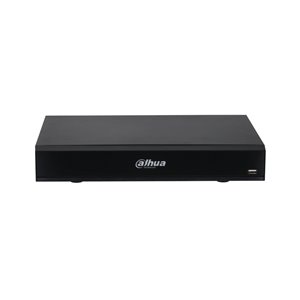

XVR7104HE-4K-I2 - Dahua 5 in 1 XVR with 4 channels HD…

Specs

    5 technologies: IP cameras, HDCVI, HDTVI, AHD and analog CVBS with automatic signal recognition
    4 BNC channels up to 8MP / 4K (BNC inputs can be converted to IP)
    4 IP channels at 8MP / 4K (added to BNC inputs)
    Video compression: AI, H.265 +, H.265, H.264 +, H.264
    HDMI (up to 4K) and VGA (up to 1080P) video outputs
    Output division: 1, 4 (IP mode off); 1, 4, 8, 9 (IP mode enabled)
    4 RCA inputs / 1 RCA audio output
    Two-way audio reusing audio input / output
    Audio compression: AAC (channel 1), G.711a, G.711u, PCM
    Recording resolution: 8MP / 4K, 6MP, 5MP, 4K-N, 4MP, 3MP, 1080P, 720P, 960H, D1, CIF
    128 Mbps maximum incoming bandwidth
    Main stream: 8MP (1 ~ 15 ips), 6MP / 5MP (1 ~ 20 ips), 4K-N / 4MP / 3MP / 1080P / 720P / 960H / D1 / CIF (1 ~ 25 ips)
    Secondary Stream: 960H (1 ~ 15 ips), D1 / CIF (1 ~ 25 ips)
    Manual, calendar, video detection, video loss, tampering, alarm, stop recording modes
    Recording intervals (1 ~ 60 minutes), pre-recording (1 ~ 30 sec.) And post-recording (10 ~ 300 sec.)
    Independent configurable video sensor per camera (selectable 22x18 grid), video loss detection and masking, diagnostics
    8 alarm inputs / 3 outputs
    Playback of up to 4 channels
    Perimeter protection: 2 channels, 10 IVS for each channel
    Face detection: 2 channels, only supports analog cameras
    SMD Plus: 4 channels, people / vehicle classification
    Internal capacity for 1 SATA HDD up to 10TB (sold separately)
    Multilanguage on-screen menu with new improved graphical interface
    Possibility of updating the firmware of DAHUA cameras from the recorder itself
    Software and hardware watchdog
    Watermark to preserve the integrity of the videos
    Gigabit RJ45 network port (1000M)
    ONVIF 16.12 and CGI compliant
    Remote access from web browser and iPhone, iPad, Android devices (EVO and Peepall App)
    Sending emails with attached photograph in alarm
    Send to FTP scheduled or in alarm
    Possibility of sending alarm and being connected to alarm receiver software (C.R.A.) using free AlarmSpace software
    Possibility of fixed or dynamic IP through DDNS Evolution service
    Communication ports: 1 USB 2.0 port, 1 USB 3.0 port, 1 RS485 port (for PTZ control)
    Power supply: 12V DC, 2A (<10W, not counting discs)
    Storage temperature -20 ° C ~ + 70 ° C
    -10 ° C ~ + 55 ° C operating temperature
    Relative humidity 0% ~ 90%
    Dimensions: 325 x 257 x 55 mm
    Weight: 1.2 kg
    Desktop installation
