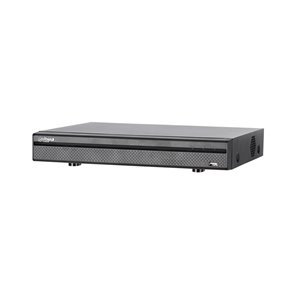

XVR5116HE-X - 16 channel 5 in 1 XVR HDCVI/HDTVI/A…

• Smart H.265+: Smart Codec, H.265+ can reduce up to 90% bit rate and storage requirements compared with H.264 without having to invest in new cameras.

• HDCVI/AHD/TVI/CVBS Auto-detect: The XVR can auto recognize the signal of front-camera without any setting. It makes operation more friendly and convenient

• Long Distance Transmission: The HDCVI system supports long distance transmission over coaxial cable and UTP, max. 700m for 4K/4MP, 800m for 1080P and 1200m for 720P.

• Intelligent Video System (IVS): With built-in intelligent video analytics, the XVR has the ability to detect and analyze moving objects for improved video surveillance. The XVR provides optional standard intelligence at the edge allowing detection of multiple object behaviors such as abandoned or missing objects. IVS also supports Tripwire analytics, allowing the camera to detect when a predetermined line has been crossed.

• Face Detection: It is a typical technology being used in a variety of applications for searching or identification of individuals..

• Smart Search: This function helps you get more motion detect video during a short time through drawing a region when playback. It is very useful when an emergency occurs

Features
- 16 ch 5 in 1 XVR (960H), CVI/TVI/AHD (4M-N, 1080P, 720P) + 8 IP ch (6MP)
- 5 technologies: IP, HDCVI, HDTVI, AHD and CVBS with automatic recognition signal
- Display and playback of all channels at 1080P
- H.265+/H.265/H.264+/H.264
- 16 BNC input:
  • HDCVI: 5MP, 4MP, 1080P, 720P
  • HDTVI: 5MP, 4MP, 1080P, 720P
  • AHD: 5MP, 4MP, 1080P, 720P
  • CVBS analógico: 960H (NTSC/PAL)
- IP camera input: 8 IP input at 6MP (added to BNC inputs)
- HDMI and VGA video output up to 1080P
- Output division with IP mode OFF: 1, 4, 8, 9, 16
- Output division with IP mode ON: 1, 4, 8, 9, 16, 25
- 2 way audio: 16 RCA in / 1 RCA out
- Recording resolution: 4M-N (1280x1440), 1080P (1920x1080), 1080N (960x1080), 720P (1280x720), etc.
- Input bandwidth: 96 Mbps
- Stream 1: 4M-N/1080P (1~15 fps), 1080N/720P/960H/D1/CIF (1~25 fps)
- Stream 2: D1/CIF (1~15 fps)
- Recording modes: manual, por calendario, por detección de vídeo, pérdida de vídeo, manipulación, alarma
 manual, by calendar, by video detection, video loss, manipulation, alarm
- Recording intervals: 1 ~ 60 minutes (60 minutes by default), pre-recording from 1 ~ 30 sec., Post-recording from 10 ~ 300 sec.
- Configurable independent motion detection per camera (22x18 grid selectable), detection by video loss and masking, diagnostics
- VQA
- 16 channel playback
- 16 channel 4M-N/1080P at 15 fps
- Alarm: 16 in / 3 out
- 1 HDD SATA up to 10TB (not included)
- Multilanguage OSD
- Possibility of updating the firmware of the DAHUA cameras from the recorder itself
- Software and hardware watchdog
- Watermark
- Third party support: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, etc.
- Fan can be switched ON/OFF automatically depending on CPU temperature
- Network port: RJ45 Gigabit (100M)
- Netowrk protocols: HTTP, HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, 3G/4G, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, Filtro IP, PPPoE, DDNS, FTP, alarm server, P2P, IP search (IP Dahua, DVR, NVS, etc.)
- Up to 128 users
- ONVIF 16.12 and CGI
 Compatible with iPhone, iPad, Android (App EVO and Peepall)
- SmartPSS free client software (multi-connection) and connection via web browser (Internet Explorer, etc.)
- Email sended with attached picture
- Programmed FTp or alarmed sending
- Fixed/dynamic IP via DDNS Evolution service
- 1x USB 2.0, 1x USB 3.0, 1x RS485 (for PTZ control)
- Power supply: 12V DC, 2A (<10W, without discs)
- Working temperature: -10°C ~ +55°C
- Working RH: 10%~90%
- Storage temperature: -20°C ~ +70°C
- Storage RH: 0%~90%
- Dimensions: 325 x 255 x 55 mm
- Weight: 1,5 kg (without HDD)
- Desktop installation
