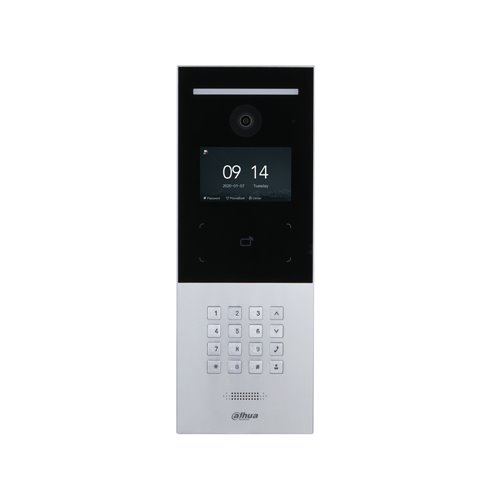

VTO6521F - SIP Dahua video door entry station…

SKU: VTO6521F

incl. VAT€676,67

Price incl. VAT: €676,67

Ex. VAT: €541,33

Total discount:

VAT: €135,33

SIP Dahua video door entry station suitable for outdoors. H.264. 2MP CMOS with WDR. 2.8 mm (111.79 °) lens. G.711u. Two-way audio. Unlock by password, IC card or remote. Up to 20,000 users and 10,000 cards. 2 alarm inputs / 2 outputs. RS485, Wiegand in / out. IP65, IK07. Power outlet. 12V DC

+20 left on stock

Back to: Dahua New

Product description: VTO6521F

Description

characteristics

    4.3 "IPS screen with a resolution of 800x480
    2 megapixel CMOS camera with WDR
    Anodized aluminum panel, metal buttons, IP65, IK07
    Automatic lighting
    Multiple unlock modes: password, IC card and remote unlock
    Supports 20,000 users and 10,000 cards
    Full duplex support; management platform and voice call through the application
    Supports SIP server and can manage max 200 monitors
    Supports duress alarm, tampering alarm, and door sensor timeout alarm

Specifications

    Embedded processor
    Embedded Linux operating system
    4.3 "IPS screen (800x480)
    Operative by mechanical buttons
    H.264 video compression
    Image Sensor 1 / 2.7 "2 Megapixel CMOS
    Low lighting
    White and infrared lighting
    2.8mm lens
    Angle of view 113.79 ° (H), 61.5 ° (V), 134.45 ° (D)
    WDR 120dB
    3D noise reduction
    Video sensor
    Stream 1: 720P (25 ips)
    Stream 2: 1080P (25 ips)
    G.711u audio compression
    Two-way full duplex audio
    1 audio input
    Incorporates speaker
    Echo suppression and digital noise cancellation
    Automatic image capture
    Web configuration
    IC card reader
    Up to 10,000 cards
    Card reading range: 1 ~ 5cm
    1 RS485 port
    1 in / 1 out Wiegand
    1 electrical retainer port
    2 alarm inputs / 2 outputs
    1 12V DC, 100 mA power output
    1 exit button port
    1 door status detection port
    1 door control port (NA)
    Tamper tamper
    Self-adaptive 10 / 100Mbps network interface
    Network protocol: SIP, P2P, IPv4, FTP, UPnP, DDNS, RTSP, RTP, TCP, UDP
    Degree of protection IP65
    IK07 Vandal Protection
    Aluminum housing
    Recessed or surface installation
    Power supply: 12V DC, 2A
    Consumption: ≤5W (standby), ≤18W (operation)
    -30C ~ + 60 ° C operating temperature
    10% ~ 90% relative humidity (non-condensing)
    Dimensions: 145 (W) x 389 (H) x 41.9 mm
    Weight: 1.4 kg
