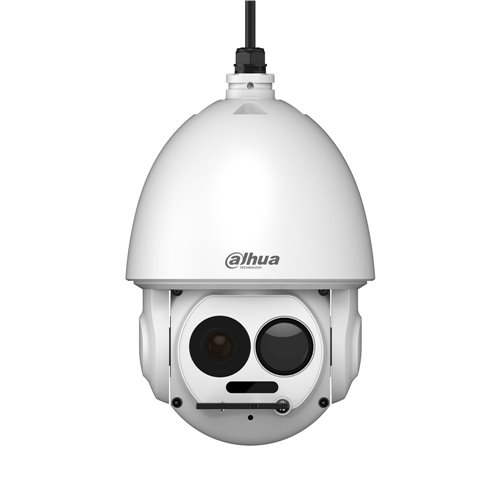

TPC-SD8421-B25 - Dahua thermal motorized dome + visi…

features

    400x300 Uncooled VOx Thermal Sensor Technology
    Focus-free athermalized lens (thermal camera)
    1 / 2.8 "CMOS sensor, 2 megapixels (viewable camera)
    45X optical zoom
    Fire detection and alarm
    25mm focal length (thermal camera)
    Preset speed up to 240 ° / s, continuous 360 ° horizontal positioner
    Up to 300 presets, 5 auto scans, 5 patterns
    7 alarm inputs / 2 outputs
    MicroSD slot
    Degree of protection IP66



Thermal camera

    Uncooled VOx Microbolometer Sensor
    Effective pixels: 400 x 300
    Pixel size: 17 µm
    Thermal sensitivity (NETD): <40mK
    Spectrum range: 8 ~ 14 µm
    Focal length (thermal): 25mm
    Viewing Angle (Thermal): 15.5 ° (H), 11.6 ° (V)
    Effective distance in people (1.8 m x 0.5 m):
        Detection: 735 meters
        Reconnaissance: 189 meters
        Identification: 95 meters
    Effective distance in vehicles (4m x 1.4m):
        Detection: 1634 meters
        Reconnaissance: 420 meters
        Identification: 210 meters
    Automatic gain control
    Brightness and sharpness adjustment
    ROI
    3D noise reduction
    18 color palettes
    Thermal Stream 1: 1280x1024, 720P, 400x300 (25 ips)
    Thermal Stream 2: 640x512, 400x300 (25 ips)

Visible camera

    1 / 2.8 "CMOS sensor, 2 megapixel
    Effective pixels: 1920 x 1080
    100 meter infrared illumination
    Minimum illumination: 0.005 lux F1.6 (color) / 0.0005 lux F1.6 (B / W
    45X Optical Zoom: 3.95 ~ 177.7mm
    Viewing angle: 70.3 ° (H), 1.8 ° (V)
    Automatic and manual focus control
    4X digital zoom (19 levels)
    Removable mechanical filter
    White balance: Auto, ATW, Indoor, Outdoor, Manual
    Backlight compensation (BLC, HLC)
    Digital WDR
    2D-NR and 3D-NR noise reduction
    Digital image stabilizer
    4 ROI zones
    4-zone rectangular video sensor
    4 Rectangular Zone Privacy Mask
    Defog
    Mirror mode
    Video compression H.265, H.264, MJPEG
    Visible camera resolution: 1080P (1920x1080), 720P (1280x720), D1 (704x576)
    Stream 1 visible: 1080P, 720P, D1 (25 ips)
    Stream 2 visible: D1, CIF (25 ips)
    IVS detection: Line crossing detection, intrusion detection
    ADVANCED detection functions: Fire and alarm detection, hot / cold spot tracking, people / vehicle classification, automatic tracking

Positioner

    Horizontal positioner: 0 ° ~ 360 ° continuous
    Vertical positioner: -10 ° ~ 90 °
    Manual speed: 0.1 ° ~ 200 ° / sec. (H), 0.1 ° ~ 120 ° / sec. (V)
    Preset speed: 0.1 ° ~ 240 ° / sec. (H), 0.1 ° ~ 200 ° / sec. (V)
    300 presets
    DH-SD and Pelco-P / D protocols with automatic recognition
    5 patterns, 8 rounds, 5 Auto Scan, Auto Pan

general

    G.711A, G.711Mu, AAC and PCM audio compression
    1 audio input / 1 output
    BNC video output
    7 alarm inputs / 2 outputs
    1 RS485 port
    Ethernet: RJ-45 (10/100 Base-T)
    Network protocols: IPv4 / IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
    Compatible with ONVIF Profile S / G, API
    Unicast / Multicast streaming method
    Up to 10/20 users
    Compatible with browsers> IE8, <Chrome42, <Firefox42
    Management software Smart PSS, DSS
    Compatible with Android and iOS mobile devices
    MicroSD card slot up to 256GB (card not included)
    Power supply: 24V AC, 3A (± 15%)
    Consumption: 17W ~ 38W
    Storage temperature -40 ° C ~ + 70 ° C
    -40 ° C ~ + 60 ° C operating temperature
    Relative humidity: <95%
    Lightning-proof 6KV
    Degree of protection IP66
    Metal shell
    Dimensions: Ø240 x 382 mm
    Weight: 6.8 Kg
    Includes wall bracket and power supply

Note: The effective distance values ??shown are nominal values ??and should be used as an estimate. Check with your sales representative for the recommended detection distances with our Vaelsys Perimeter System.
