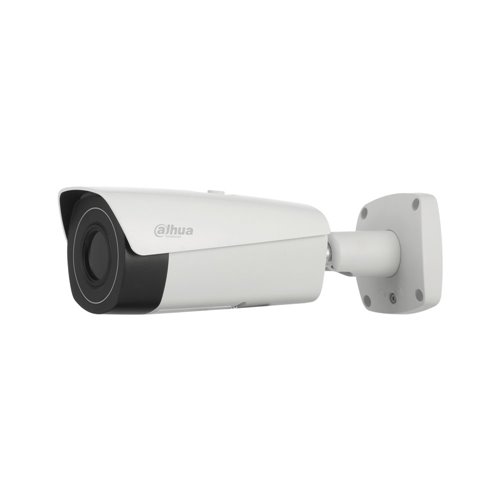

TPC-BF5601-B35 - Thermal IP bullet camera. Resolutio…

features

    640x512 Uncooled VOx Thermal Sensor Technology
    Focus-free athermalized lens
    Fire detection and alarm
    35mm focal length
    2 inputs / 2 alarm outputs
    MicroSD slot
    Degree of protection IP67
    Supports PoE and ePoE



specs

    Long life sensor, Uncooled VOx Microbolometer
    Effective pixels: 640 x 512
    Pixel size: 17 µm
    Thermal sensitivity (NETD): 40mK
    Spectrum range: 8 ~ 14 µm
    Focal length: 35mm
    Viewing angle: 17.6 ° (H), 14.1 ° (V)
    Effective distance in people (1.8 m x 0.5 m):
        Detection: 1030 meters
        Reconnaissance: 265 meters
        Identification: 132 meters
    Effective distance in vehicles (4m x 1.4m):
        Detection: 2288 meters
        Reconnaissance: 588 meters
        ID: 294 meters
    Adjust brightness, sharpness, AGC, FFC, 3D-DNR
    18 color palettes
    Mirror mode
    4 ROI zones
    4-zone rectangular video sensor
    4 Rectangular Zone Privacy Mask
    4X digital zoom (24 levels)
    Video compression H.265, H.264, MJPEG
    Stream 1: 1280x1024, 720P, 640x512 (25 ips)
    Stream 2: 640x512, 320x256 (25 ips)
    IVS detection: Line crossing detection, intrusion detection
    ADVANCED detection functions: Fire and alarm detection, hot / cold spot trace, people / vehicle classification
    G.711A, G.711Mu, AAC and PCM audio compression
    CVBS / BNC video output
    1 audio input / 1 output
    2 inputs / 2 alarm outputs
    Supports RS485
    Ethernet: RJ-45 (10/100 Base-T
    Network protocols: IPv4 / IPv6, HTTP, HTTPS, SSL, TCP / IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS , Bonjour, 802.1x
    Compatible with ONVIF Profile S / G, API
    Unicast / Multicast streaming method
    Up to 10/20 users
    Management software SmartPSS, DSS
    Compatible with browsers> IE8, <Chrome42, <Firefox42
    Compatible with Android and iOS mobile devices
    MicroSD card slot up to 256GB (card not included)
    Power: 12V DC
    Consumption: 13W
    Supports PoE and ePoE
    Storage temperature -40 ° C ~ + 70 ° C
    -40 ° C ~ + 70 ° C operating temperature
    Relative humidity: <95%
    Lightning-proof 6KV
    Degree of protection IP67
    Metal housing
    Dimensions: 103.7 (W) x 97 (H) x 291 mm
    Weight: 1,5 Kg

Note: The effective distance values ??shown are nominal values ??and should be used as an estimate. Check with your sales representative for the recommended detection distances with our Vaelsys Perimeter System.
