incl. VAT€4085,30
Price incl. VAT: €4085,30
Ex. VAT: €3268,24
Total discount:
VAT: €817,06

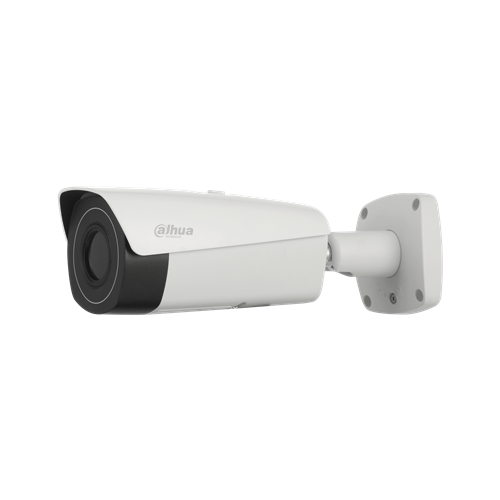

IP thermal bullet camera. 400 x 300. 7,5 mm lens (52° x 40°). People detection up to 221 meters and vehicles up to 558 meters. CVBS/BNC video output. AGC, 3D-DNR, 4 ROI roi, motion detection and privacy mask. IVS. Temperature measurement. Audio: 1 in / 1 out. Alarm: 2 in / 2 out. RS485. IP67. Lightning-proof 6KV. 12V DC. PoE.
Sold out / Not on stock
Product description: TPC-BF5401-TB7
Features
- TPC-BF5401-TB7
- 400x300 VOx uncooled thermal sensor technology
- Athermalized Lens (thermal), Focus-free
- Temperature measurement supported
- Fire and alarm detection
- 7,5 mm focal distance
- Alarm: 2 in / 2 out
- MicroSD slot
- IP67
- PoE supported
Specs
- TPC-BF5401-TB7
- Uncooled VOx Microbolometer
- Effective pixels: 400 x 300
- Pixel size: 17 µm
- NETD: 40mK@f/1.0
- Spectral range: 7 ~14 µm
- Focal distance: 7,5 mm
- Viewing angle: 52°(H), 40°(V)
- Effective distance on people (1,8 m x 0,5 m):
- TPC-BF5401-TB7
- Detection: 240 meters
- Recognition: 60 meters
- ID: 30 meters
- Effective distance on vehicles (2,3m x 2,3m):
- TPC-BF5401-TB7
- Detección: 720 meters
- Recognition: 180 meters
- ID: 90 meters
- Adjustment of brightness, sharpness, AGC, FFC, 3D-DNR
- 14 color palettes
- Mirror mode
- 4 ROI
- Motion detection of 4 rectangular zones
- Privacy mask of 4 rectangular zones
- H.264, MJPEG
- Stream 1: 1280x1024, 720P (25 fps)
- Stream 2: 640x512, 320x256 (25 fps)
- Detección IVS: Detección de cruce de línea, detección de intrusión, objetos abandonados/perdidos
- Funciones de detección avanzada: Detección de fuego y alarma
- Admite hasta 12 reglas de medición simultáneas (12 puntos, 12 líneas, 12 regiones)
- Low temperature range: -20°C ~ +150°C
- High temperature range: 0°C ~ +550°C
- Temperature accuracy: ±2°C, ±2% / working temperature -20°C ~ +60°C
- G.711A, G.711Mu y AAC
- CVBS/BNC video output
- Audio: 1 in / 1 out
- Alarm: 2 in / 2 out
- RS485 supported
- Ethernet: RJ-45 (10/100 Base-T)
- Network protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
- Compatible with ONVIF Profile S/G, PSIA y CGI
- Software management SmartPSS, DSS
- MicroSD card slot up to 256GB (card is not included)
- Power supply: 12V DC
- Consumption: 13W max.
- PoE supported
- Storage temperature: -40°C ~+70°C
- Working temperature -40°C ~+60°C
- RH: <95%
- Lightning-proof 6KV
- IP67
- Metal case
- Dimensions: 103,7 (W) x 97 (H) x 291 mm
- Weight: 1,4 Kg
Note: The actual distance values shown are nominal values and should be used as an estimate. Check with your salesperson for the recommended detection distances with our Vaelsys perimeter system.
