incl. VAT€3427,61
Price incl. VAT: €3427,61
Ex. VAT: €2742,09
Total discount:
VAT: €685,52

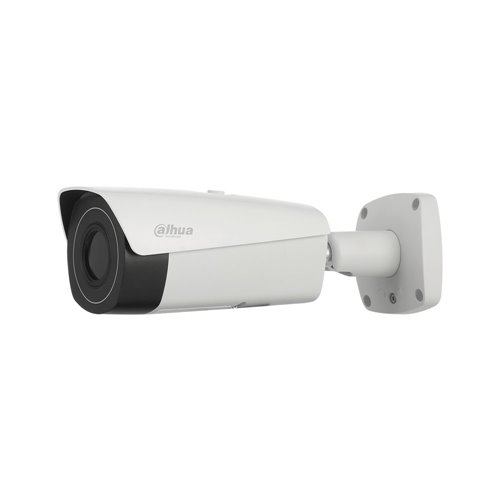

IP thermal bullet camera. 400 x 300. 7,5 mm lens (53,7° x 39,7°). People detection up to 221 meters and vehicles up to 490 meters. CVBS/BNC video output. 4X digital zoom. AGC, 3D-DNR, 4 ROI, motion detection and privacy mask. IVS. Audio: 1 in / 1 out. Alarm: 2 in / 2 out. RS485. IP67. Lightning-proof 6KV. 12V DC. PoE/ePoE.
Sold out / Not on stock
Product description: TPC-BF5401-B7
Features
- TPC-BF5401-B7
- 400x300 VOx uncooled thermal sensor technology
- Athermalized Lens (thermal), Focus-free
- Support Fire detection & alarm
- Focal distance 7,5 mm
- Alarm: 2 in / 2 out
- MicroSD
- IP67
- ePoE / PoE supported
Specs
- TPC-BF5401-B7
- Long life sensor, Uncooled VOx Microbolometer
- Effective pixels: 400 x 300
- Pixel size: 17 µm
- Thermal sensivity (NETD): 40mK
- Spectral range: 8 ~14 µm
- Focal distance: 7,5 mm
- Viewing angle: 53,7°(H), 39,7°(V)
- Effective distance on people (1,8 m x 0,5 m):
- TPC-BF5401-B7
- Detection: 221 meters
- Recognition: 57 meters
- ID: 28 meters
- Effective distance on vehicles (4m x 1,4m):
- TPC-BF5401-B7
- Detection: 490 meters
- Recognition: 126 meters
- ID: 63 meters
- 4X digital zoom (19 levels)
- Adjustment of brightness, sharpness, AGC, FFC, 3D-DNR
- 18 color palettes
- Mirror modes
- 4 ROI
- Motion detection: 4 rectangular zones
- Privacy mask: 4 rectangular zones
- H.265, H.264, MJPEG
- Stream 1: 1280x1024, 720P, 400x300 (25 fps)
- Stream 2: 640x512, 400x300 (25 fps)
- IVS: Tripwire, intrusion
- Advanced detection functions: Fire detection & alarm, Cold/Hot spot trace, Human/Vehicle classification
- Compresión de audio G.711A, G.711Mu, AAC y PCM
- CVBS/BNC video output
- Audio: 1in / 1 out
- Alarm: 2 in / 2 out
- RS485 supported
- Ethernet: RJ-45 (10/100 Base-T)
- Protocols: IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x
- Compatible with ONVIF Profile S/G, API
- Software management SmartPSS, DSS
- MicroSD up to 256GB (card is not included)
- Power supply: 12V DC
- Consumption: 13W
- PoE / ePoE supported
- Storage temperature -40°C ~+70°C
- Working temperature -40°C ~+70°C
- RH: <95%
- Lightning-proof 6KV
- IP67
- Metal case
- Dimensions: 103,8 (W) x 97,2 (H) x 291 mm
- Weight: 1,5 Kg
Note: The actual distance values shown are nominal values and should be used as an estimate. Check with your salesperson for the recommended detection distances with our Vaelsys perimeter system.
