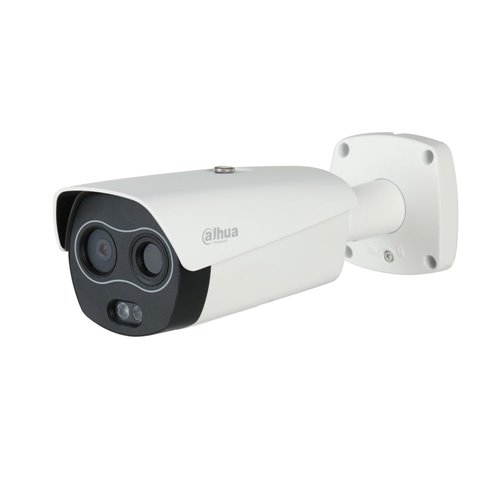

TPC-BF3221P-TB7F8-HTM

Description

Hybrid camera with temperature measurement that simultaneously provides a normal image and a thermal image of the scene taken. An artificial intelligence algorithm recognizes human figures and allows the temperature of the face to be measured, excluding any other source of heat that may constitute a false alarm, at the optimal distance of 3 meters.

Features

• TPC-BF3221P-TB7F8-HTM
• 256x192 Uncooled VOx Thermal Sensor Technology
• Focus-free, thermal lens (thermal camera)
• 1 / 2.8 "2-megapixel CMOS sensor (visible camera)
• Supports ROI, video sensor, color palettes
• Supports human body temperature measurement
• Measurement accuracy: ± 0.3 °C, combined with Blackbody DAHUA-2182 camera (JQ-D70Z)
• Active deterrence with white light and siren
• 7mm focal length (thermal camera)
• 2 inputs / 2 alarm outputs
• MicroSD slot
• Protection degree IP67
• Supports PoE
•
  Specifications
• Uncooled VOx microbolometer sensor
• Effective Pixels: 256 x 192
• Pixel size: 12 µm
• Thermal sensitivity (NETD): <50mK@f/1.1
• Spectrum range: 8 ~ 14 µm
• Focal length (thermal): 7.1 mm
• Viewing angle (thermal): 24 ° (H), 18 ° (V)
• Automatic gain control
• 3D noise reduction
• 18 color palettes
• Brightness and sharpness adjustment
• Supports up to 12 simultaneous measurement rules (12 points, 12 lines, 12 regions)
• Temperature measurement range: -30 °C ~ + 45 °C
• Temperature measurement accuracy: ± 0.3 °C, ± 0.3% with Blackbody DAHUA-2182 camera (JQ-D70Z)
• Temperature measurement accuracy: ± 1 °C, ± 1% without camera Blackbody DAHUA-2182 (JQ-D70Z)
• Image sensor (visible camera) 1 / 2.8 SONY 2-megapixel CMOS
• Effective Pixels: 1920 x 1080
• 35 meter infrared illumination
• Minimum illumination: 0.002 lux (color) / 0.0002 lux (B / W) / 0 lux IR On
• Focal length (visible optics): 8 mm
• Angle of view (visible optics): 40 ° (H), 22 ° (V)
• Removable mechanical filter
• Automatic and manual white balance
• Backlight compensation (BLC, HLC)
• WDR
• 2D-NR and 3D-NR noise reduction
• Defog
• Mirror mode
• ROI 4 zones
• Video sensor with 4 rectangular zones
• Privacy mask with 4 rectangular zones
• H.265, H.264, MJPEG video compression
• Visible camera resolution: 1080P (1920x1080), 720P (1280x720)
• Thermal Stream 1: 1280x960, 1024x768, 640x480, 256x192 (25 ips)
• Thermal Stream 2: 640x480, 256x192 (25 ips)
• Stream 1 visible: 1920x1080 (default), 1280x720 (25 ips)
• Stream 2 visible: 352x288 (default), 704x576 (25 ips)
• G.711A, G.711Mu and AAC audio compression
• 1 audio input / 1 output
• BNC video output
• 2 inputs / 2 alarm outputs
• 1 RS485 port
• Ethernet: RJ-45 (10/100 Base-T)
• Network protocols: IPv4 / IPv6, HTTP, HTTPS, SSL, TCP / IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x
• Onvif Profile S&G, API support
• Unicast and Multicast streaming method
• Up to 10/20 users
• Compatible with browsers <IE11, <Chrome45, <Firefox52
• Smart PSS, DSS management software
• Compatible with Android and iOS mobile devices
• MicroSD card slot up to 128GB (card not included)
• Power: 12V DC
• Consumption: 12W
• Supports PoE (802.3af)
• -10 °C ~ + 35 °C operating temperature
• Relative humidity: <95%
• Protection degree IP67
• Metal shell
• Dimensions: 103.8 (W) x 95.8 (H) x 279.9mm
• Weight: <1.4kg
•
