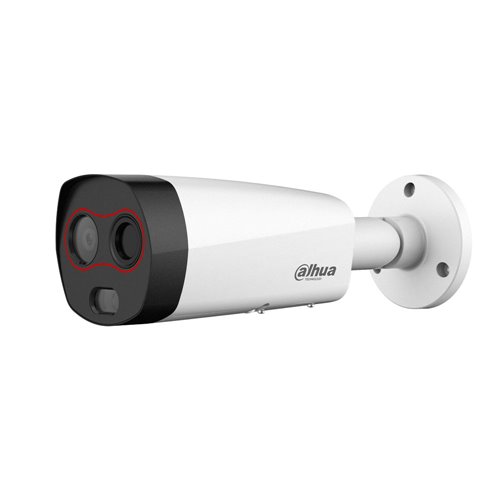

TPC-BF2221-T - Thermal bullet camera + visible wit…

Description

Dual lens bullet camera that provides an all-in-one solution. Along with thermal and visible technology, the camera is the perfect solution for small, dark area monitoring applications. The series combines a thermal camera to monitor in total darkness and a visible camera with Smart IR to confirm details.

Characteristics

• TPC-BF2221-T
• 256x192 Uncooled VOx Thermal Sensor Technology
• Focus-free, thermal lens (thermal camera)
• 1 / 2.8 "2-megapixel CMOS sensor (visible camera)
• Supports ROI, video sensor, color palettes
• Supports human body temperature measurement
• Body temperature measurement range of 30 ºC ~ 45 ºC
• Measurement accuracy: ± 0.3 ºC, combined with Blackbody DAHUA-2199 camera (TPC-HBB-CHW)
• Active deterrence with white light and siren
• 7.5mm focal length (thermal camera)
• 6mm focal length (visible camera)
• 2 alarm inputs / 1 outputs
• MicroSD slot
• Protection degree IP67
• Supports PoE and ePoE

Specifications

• TPC-BF2221-T
• Uncooled VOx microbolometer sensor
• Effective Pixels: 256 x 192
• Pixel size: 12 µm
• Thermal sensitivity (NETD): <50mK
• Spectrum range: 8 ~ 14 µm
• Focal length (thermal): 7.5 mm
• Angle of view (thermal): 32.4 ° (H), 24.6 ° (V)
• Automatic and manual gain control
• 2D and 3D noise reduction
• 18 color palettes
• Digital Detail Enhancement (DDE)
• Temperature measurement range: 30 ºC ~ 45 ºC
• Temperature measurement accuracy: ± 0.3% with Blackbody DAHUA-2199 camera (TPC-HBB-CHW)
• Image sensor (visible camera) 1 / 2.8 SONY 2 megapixel CMOS
• Effective Pixels: 1920 x 1080
• Infrared illumination of up to 50 meters
• Minimum illumination: 0.01 lux (color) / 0.001 lux (B / W) / 0 lux IR On
• Focal length (visible optics): 6mm
• Angle of view (visible optics): 52.8 ° (H), 30, ° (V)
• Removable mechanical filter
• White Balance: Auto, Indoor, Outdoor, Tracking, Manual, Sodium Lamp, Daylight, Lamppost
• Backlight compensation (BLC, HLC)
• WDR
• 2D-NR and 3D-NR noise reduction
• ROI
• H.265, H.264M, H.264H, H.264B video compression
• Visible camera resolution: 1080P (1920x1080), 720P (1280x720), D1 (704x576), CIF (352x288)
• Thermal Stream 1: 1280x960, 1024x768, 640x480, 256x192 (25 ips)
• Thermal Stream 2: 640x480, 256x192 (25 ips)
• Stream 1 visible: 1920x1080 (default), 1280x720 (25 ips), 704x576 (25 ips)
• Stream 2 visible: 704x576 (25 ips), 352x288 (25 ips)
• G.711A, G.711Mu, AAC, PCM audio compression
• Two-way audio
• 2 inputs / 1 alarm output
• 1 RS485 port
• Ethernet: RJ-45 (10/100 Base-T)
• Network protocols: HTTP, HTTPS, TCP, ARP, RTSP, RTP, UDP, RTCP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, IPv4 / v6, SNMP, QoS, UPnP, NTP, Multicast, SFTP, 802.1x
• Up to 20 users
• Compatible with IE8, Chrome 42, Firefox 42 browsers
• MicroSD card slot up to 256GB (card not included)
• Power: 12V DC
• Maximum consumption: 18W
• Supports PoE (802.3af), ePoE
• -10 ºC ~ + 50 ºC operating temperature
• Relative humidity: <93%
• Protection degree IP67
• Metal shell
• Dimensions: 92 (W) x 87 (H) x 287.3mm
• Weight: <1.4kg
