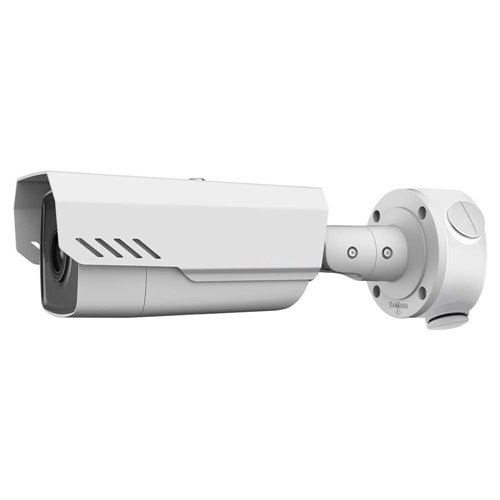

TERM-76 - Customized thermal camera for fire…

SKU: TERM-76

incl. VAT€11162,51

Price incl. VAT: €11162,51

Ex. VAT: €8930,01

Total discount:

VAT: €2232,50

Customized thermal camera for fire detection on industrial environment. 7,5 mm CIF thermal camera. 1m³ detection at 33~37 m or overheating mode at 300~375 m. IP66. PoE/PoE+.

Sold out / Not on stock

Back to: Dahua New

Product description: TERM-76

Description

Features
- Uncooled microbolometer sensor
- Thermal sensibility: <50 mK f/1.0
- Spectral range: 7,5~13,5 µm
- 7,5 mm lens
- Horizontal viewing angle: 63°
- Vertical viewing angle: 50°
- Pixel size: 25 µm
- CIF resolution
- Hectares: 28 HA (optimal), 44 HA (max)
- Overheating range: 300 m (optimal), 375 m (max)
- 1m³ flame range: 33 m (optimal), 37 metros (max)
- 0,4m³ flame range: 21 m (optimal), 23 metros (max)
- 0,1m³ flame range: 10 m (optimal), 11 metros (max)
- IP video H.264/MPEG-4 & MJPEG
- IP multiprotocol system
- Storage temperature range: -55°C ~ +85°C
- Working temperature range: -50°C ~ +70°C
- IP66
- Shock protection: Mil-Std-810F
- Protection against vibration: IEC 60068-2-27
- Power supply: Ethernet PoE 802.3af/at; 12V~38V AC / 11V~56V DC
- Consumption: 5W nominal at 24V DC, 8VA nominal at 24V AC
- Dimensions: 282 x 129 x 115 mm
- Weight: 2,2 kg

Features
- PC server with 23" monitor, mouse and alarm (8 in / 8 out)
- 5 thermal chanels management of fire or overheating industrial analytics
- Overheating and flame alert detector
- XML interface for software platform integration
- Position, distance and detected object (overheating or flame) sending via integrated interface
- You can retransmit the video over IP via RTSP encoded in H.264 with CIF and 4CIF resolutions
- Allows armed / disarmed scheduling or change of alert type (overheating or flame)
- Cartography over map
- Map sensor positioning
- Video management and status sensor display
- Targeting cartography
- Pointing Manual
- Parameter changes
- Alerts management
- Management of video-recordings
- Definition and management of presets
- Scheduling of video analytics
- Definition and management of masks
- Definition and of video-analytics
- App SR7 compatible with Push notification
- Requires TERM-71 license activation for each camera (included on Pan-Tilt systems)

Notes
- Optional: Start-up "on site" and installation of towers (turnkey)
- Radio link not included: 2Mbps Minimum Upload / Download required per camera
- TERM-58: Annual maintenance "online" by installation (mandatory)
- Requires a personalized pre-study for each project (contact your sales representative)
