incl. VAT€3987,38
Price incl. VAT: €3987,38
Ex. VAT: €3189,90
Total discount:
VAT: €797,48
- SKU: SF-IPTB793A-35D4-AI

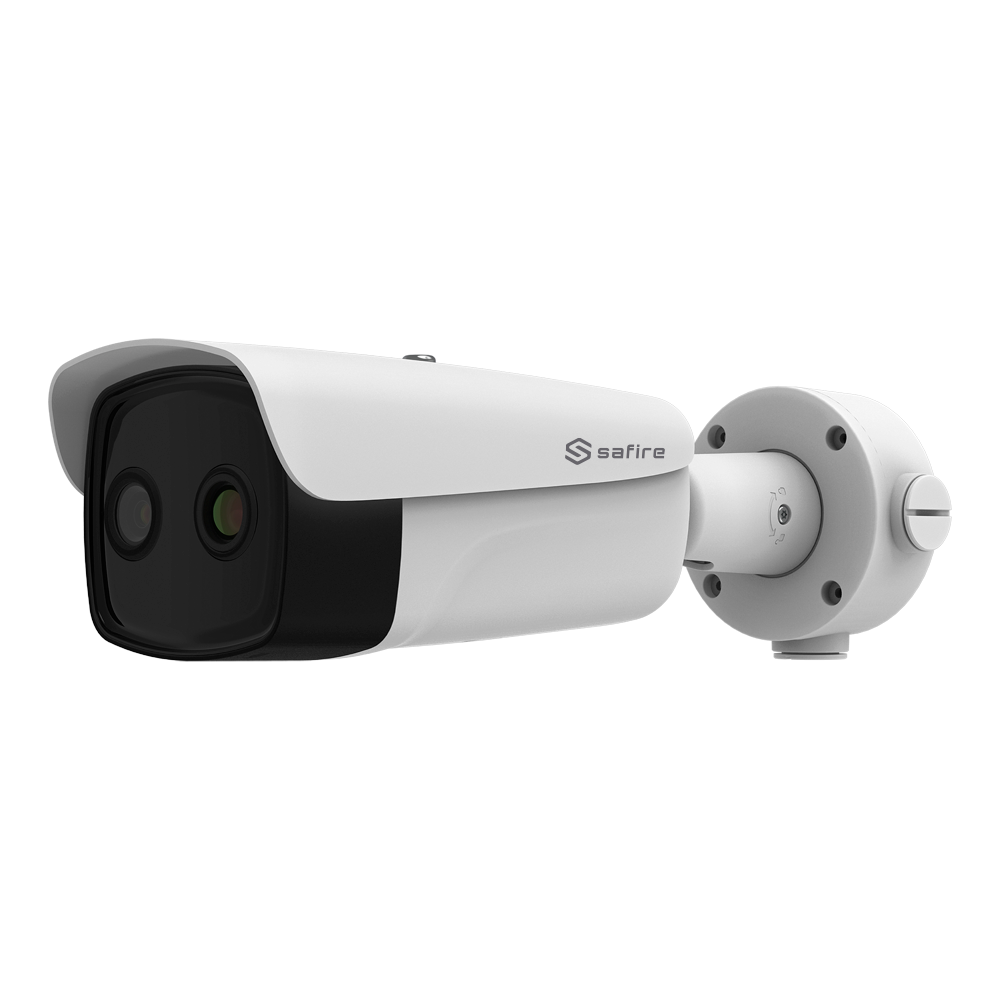

- Safire Dual IP thermal camera
- 384x288 VOx | 35mm Lens
- Optical sensor 1/2.7” 4 MP | Lens 14.8mm
- Thermal sensitivity ?35mK
- Fire detection and alarm
- Temperature measurement range -20~150ºC / ± 8ºC
Sold out / Not on stock
Product description: SF-IPTB793A-35D4-AI
- SF-IPTB793A-35D4-AI
- Safire
- Dual Thermal IP Camera
- Thermal sensor 384x288 VOx
- Optical sensor 1/2.7†Progressive Scan CMOS 4Mpx
- Lens 35 mm (Therm) / 14.8 mm (Opt)
- Thermal sensitivity < 35mK (0.05 º C)
- Thermal measurement range (-20 ~150 º C / ± 8 º C)
- IR 100m
- H.265/H.264/MJPEG
- WDR (120dB)
- Allows temperature measurement
- Fire Detection
- RJ-45 10/100M BaseT
- PoE IEEE802.3af
- Audio
- Alarms
- SD card recording
- WEB, CMS, Smartphone and NVR interface
- ONVIF Compatible
- Weatherproof IP66
| SKU | SF-IPTB793A-35D4-AI |
| Brand | Safire |
| Thermal sensor | 384x288 Vanadium oxide |
| Optical sensor | 1/2.7” Progressive Scan CMOS 4 Megapixel |
| Minimum Illumination | Colour: 0.0089 Lux @(F1.6, AGC ON), B/W: 0.0018 Lux @(F1.6, AGC ON) |
| Infrared Light | 100 m |
| Main Stream rate | Term: 1280x720 / 704x576 / 640x480 / 352x288 / 320x240 / / (25fps) Opt: 2688x1520 / 1920x1080 / 1280×720 (25fps) |
| Extra Stream rate | Term: 704×576 / 352×288 / 320x240 (25fps) Opt: 704x576 / 352x288 / 176x144 (25fps) |
| Compression | H.265/H.264/MJPEG |
| Image Enhancement | WDR (120 dB) |
| Lens | 35 mm (Therm) / 14.8 mm (Opt) |
| Range performance | Human: 1029 (Detection) / 257 (Recognition) / 129 (Identification) m
Vehicle: 3157 (Detection) / 789 (Recognition) / 395 (Identification) m |
| VCA ranges | Human: 257m Vehicle: 721 m Tº measurement (2x2m): 819 m Tº measurement (1x1m): 413 m Fire detection (2x2m): 2058 m Fire detection (1x1m): 1029 m |
| Viewing angle | 10.7°×8.0° (Term) / 20.59°×11.73° (Opt) |
| Thermal sensitivity | < 35mK (0.05 º C) |
| Thermal measurement range | -20 ~150 º C / ± 8 º C |
| Spectral range | 8~14μm |
| Pitch detector | 17μm |
| VCA | Up to 8 VCA rules (linecrossing, intrusion, entry and exit of area) |
| Temperature rules | Up to 21 rules (10 points, 10 areas y 1 line) |
| Intelligent functions | Fire detection and alarm, line crossing, intrusion, abandoned/lost object |
| Filters | TrueSense: false alarm filter by human or vehicle detection |
| Fire Detection | Dynamic detection, up to 10 points |
| Audio | 1 IN / 1 OUT line level 600 ohm |
| Alarms | 2 IN / 2 OUT |
| Internal memory | Micro SD card up to 256GB |
| Network interface | Ethernet 10/100M BaseT |
| Remote access | WEB Interface, Safire Control Center, Safire Connect and NVR |
| Interoperability | ONVIF |
| Power | 18 VAC - 30 VAC: 0.38A-0.22 A, max.9 W 9VDC - 15VDC: 0.63A-1.06 A, max.9 W PoE(802.3af, class 3): 44V - 57V, 0.22A - 0.17 A, max.9.5 W |
| Temp. operation | -40º C ~ +65º C |
| Degree of protection | Weatherproof IP66 |
| Dimensions | 376.1 (D) x 11 (W) x 118.1 (H) mm |
| Weight | 1820 g |
