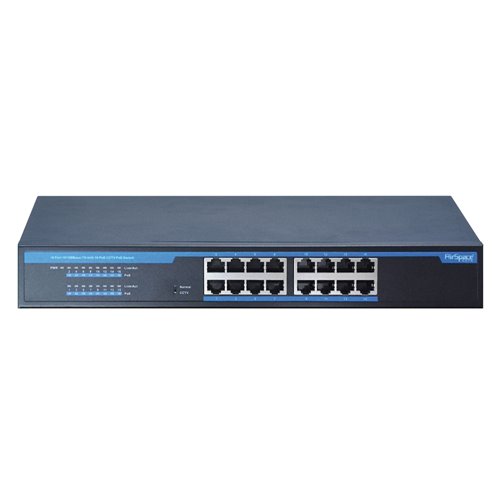

Features
- 16x PoE 10/100M switch
- 16x PoE RJ45 10/100M autonegociated
- Each PoE port supplies a maximum of 30 W
- CCTV mode up to 250 meters
- 3,2Gbps backplane bandwidth
- Total consumption of 150W
- Flow control IEEE802.3x for full-duplex mode and backpressure for half-duplex mode
- Surge protection for power ports and data ports
- Compact metal housing for desk or wall mounting
- EMI standards comply with FCC, CE class B
- MAC addresses: 8K
- Supported standards: IEEE802.3 10Base-T Ethernet, IEEE 802.3u 100Base-TX Fast Ethernet, IEEE802.3af, IEEE802.3at
- 10BASE-TX transmission: ≤250m with CAT5 / 5e UTP cable
- 100BASE-TX transmission: ≤150m with CAT5 / 5e UTP cable
- 100V ~ 240 AC, 50 / 60Hz power
- Storage temperature of -10 ° C ~ + 70 ° C
- Working temperature of 0 ° C ~ + 45 ° C
- RH: 10% ~ 90%
- Dimensions: 330 x 200 x 44 mm
- Incorporates low noise fan
- Use CAT5 UTP cable or higher
