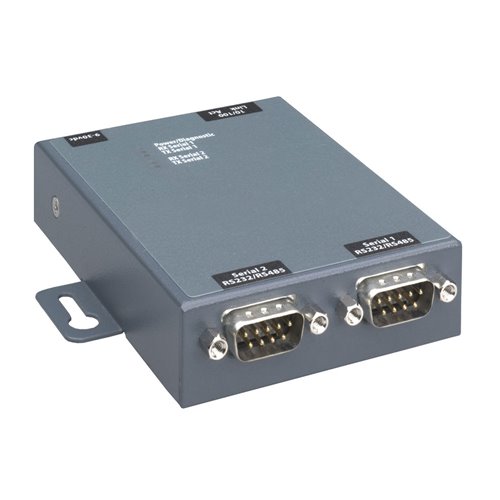

SEV-0003502 - RS232, RS422, RS485 to TCP-IP con…

Features
- Device network connection in minutes
- Access, monitoring and device control via Ethernet
- Replace dedicated PC or modem with fast ethernet network devices
- Fast&easy configuration via HTTP, DHCP, Telnet, Serial or Lantronix DeviceInstaller
utility
- 2x DTE DB9M serial port, (RS232, RS422 and RS485 supported)
- RoHS and WEE
- Truport Com port technology control

Specs

- Server device
- Installed processors: 1x48 MHz
- RAM: 256 KB SRAM
- Flash: 2 MB
- Protocol: Ethernet, Fast Ethernet, RS-232, RS-422, RS-485
- Network protocols: TCP/IP, UDP/IP, ICMP/IP
- Status indicators: Link activity, duplex mode power port, state
- Features: Flow control, DHCP support, ARP support, manageable, half duplex mode, full duplex mode
- Communication ports: 2 x RS-232/422/485 - DB-9, 1 x 100Base-TX - RJ-45
- Compliant Standards: FCC Clase B , FCC Clase A, CSA, UL, TUV, VCCI, CISPR 22 clase A, cUL, EN 61000-3-2, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-3-3, EN55022 class A, ICES-003 class A, RoHS, WEEE
- Power supply: 120V AC / 230V AC
- Working consumption: 1.8W
- Working temperature: 0ºC ~ +60ºC
- Dimensions: 72 x 23 x 95 mm
- Weight: 400 g
