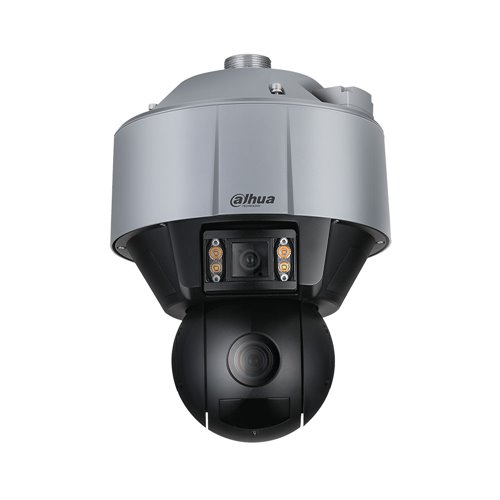

SDT5X425-4Z4-WA-2812 - StarLight IP 100°/sec. dual motoris…

SKU: SDT5X425-4Z4-WA-2812

incl. VAT€4312,97

Price incl. VAT: €4312,97

Ex. VAT: €3450,37

Total discount:

VAT: €862,59

StarLight IP 100°/sec. dual motorised dome with 100 m infrared illumination, outdoor. Smart H.265, Smart H.264, H.265, H.264, MJPEG format. 4 megapixel 1/1.8" CMOS. Triple stream. Up to 4MP resolution at 50 fps. Panoramic optics 2.8~12 mm. Detail optics 5.4~135 mm. 16X digital zoom. ICR filter. 0.001/0.0001 lux. OSD, AWB, AGC, BLC, HLC, WDR, 2D/3D-NR, defog, EIS, videosensor. Autotracking. Intelligent detection (IVS). 300 DH-SD and Pelco-D/P presets. 1 audio input / 1 audio output. 2 alarm inputs / 1 alarm output. MicroSD slot. RJ45. Onvif, PSAI, CGI. IP67. Lightning-proof 8KV. Hi-PoE+. Includes wall bracket and power supply.

Sold out / Not on stock

Back to: Dahua New

Product description: SDT5X425-4Z4-WA-2812

Description

WizMind

Characteristics

SDT5X425-4Z4-WA-2812
4 megapixel 1/1.8" Wide CMOS sensor and 4 megapixel detail CMOS sensor
Smart H.265 / Smart H.264 / H.265 / H.264 / MJPEG compression formats
Resolution: 4MP (2688x1520), 4MP (2560x1440), 1080P (1920x1080), 1.3MP (1280x960), 720P (1280x720), D1 (704x576), CIF (352x288)
Stream 1: 4MP/1080P/1.3MP/720P (1~50 fps)
Stream 2: D1, CIF (1~25 fps)
Stream 3: 1080P/1.3MP/720P/CIF (1~25 fps)
Day/Night mode with removable mechanical filter
Night vision panoramic camera: 4 white light LEDs, 20m range with face recognition, 30m range with video metadata
Night vision detail camera: 4 IR LEDs, up to 100 metres range
Minimum illumination panoramic: 0.001 lux F1.6 (colour) / 0.0001 lux F1.6 (B/W)
Minimum illumination detail: 0.001 lux F1.6 (colour) / 0.0001 lux F1.6 (B/W) / 0 lux (IR On)
Panoramic optics 2.8 ~ 12 mm (4X optical zoom)
Wide-angle of view: 99.2°~45.8°(H), 59.7°~27°(V), 110.4°~51.7°(D)
Detail optics 5.4~135mm (25X optical zoom)
Detail angle of view: 58°~3.5°(H), 35°~2°(V), 64°~4°(D)
Auto, semi-automatic and manual focus control
16X digital zoom
White Balance: Auto / Indoor / Outdoor / Tracking / Manual / Sodium Lamp /
Daylight / Street Lamp
Automatic and manual gain control
Backlight compensation (BLC, HLC)
WDR
Ultra DNR Noise Reduction (2D/3D)
Defog, Electronic Image Stabilizer (EIS)
Areas of Interest (ROI)
Video sensor
Auto-tracking with deep-learning
Face recognition
Perimeter protection: Line crossing detection, intrusion detection (supports alarm with person/vehicle classification), filtering of false alarms caused by animals, rustling leaves, bright lights, etc.
Metadata: Supports image capture and attribute extraction of the human body, human face, motor vehicles and non-motorized vehicles.
Panoramic horizontal positioner: 0° ~ 360° continuous
Panoramic vertical positioner: 0° ~ 30° continuous
Horizontal positioner details: 0° ~ 305° continuous
Pan vertical positioner details: -3° ~ 90
Manual pan speed: 0.1° ~ 100°/sec. (H), 0.1° ~ 25°/sec. (V)
Manual speed details: 0.1° ~ 400°/sec. (H), 0.1° ~ 200°/sec. (V)
Panning preset speed: 100°/sec. (H), 50°/sec. (V)
Detail preset speed: 360°/sec. (H), 200°/sec. (V)
300 presets DH-SD, Pelco-D/P (automatic recognition)
5 patterns, 8 rounds of up to 32 presets each, 5 Scan
1 audio input / 1 audio output
2 alarm inputs / 1 alarm output
MicroSD card slot up to 128GB (card not included)
Network interface: RJ45 (10/100 Base-T)
Network protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, ARP, SNMPv1/v2c/v3 (MIB-2), RTCP
ONVIF, CGI support
Unicast/Multicast streaming method
Up to 20 users
Compatible with IE7, Chrome 45, Firefox 52, and Safari 12 browsers
SmartPSS, DSS management software
Power supply: 36 V DC /2.23A (±25%)
Power consumption: 21W, 40W (with IR lighting + white light-activated and intelligent video)
Hi-PoE support
Operating temperature -40°C ~ +70°C
Humidity: <95%
IP67 protection rating
Lightning-proof 8KV
Dimensions: Ø277 x 385 mm
Weight: 9 kg
Wall bracket and power supply included
