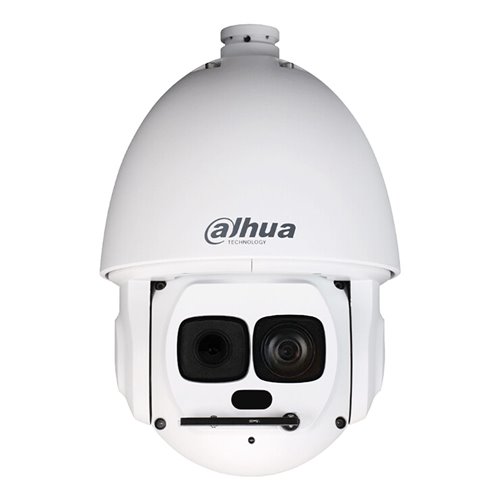

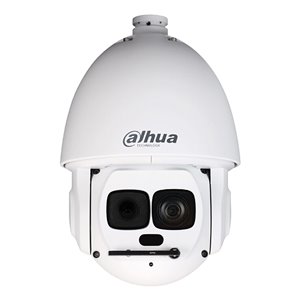

SD6AL445XA-HNR - Dahua Starlight PTZ IP dome AI seri…

SKU: SD6AL445XA-HNR

incl. VAT€2658,20

Price incl. VAT: €2658,20

Ex. VAT: €2126,56

Total discount:

VAT: €531,64

Dahua Starlight PTZ IP dome AI series of 200°/sec. with laser ilumination of 550 m, for outdoors. H.265+/ H.265/ H.264+/ H.264/ MJPEG. 1/2,8"" CMOS, 4 MP. Triple stream. 4MP@25fps. 45X optical zoom of 3,91~177,7 mm. 16X digital zoom. ICR filter. 0,005 / 0,0005 lux. OSD, AWB, AGC, BLC, HLC, WDR 120dB, 2D/3D-DNR, digital defog, EIS, motion detection, privacy mask. Autotracking. Perimeter protection, video metadata, face detection. IVS. 300 presets DH-SD and Pelco-D/P. Audio: 1 in / 1 out. Alarm: 7 in / 2 out. MicroSD slot. Onvif, CGI. IP67. Lightning-proof 8KV. 36V DC. Hi-PoE. Bracket and power supply included.

Sold out / Not on stock

Back to: Dahua New

Product description: SD6AL445XA-HNR

Description

WizMind

Features

SD6AL445XA-HNR
1/2,8” CMOS sensor, 4MP
45X optical zoom
StarLight technology
4MP (2560x1440) at 25 fps, 1080P (1920x1080) at 50 fps
Laser range up to 550 meters
Autotracking and perimeter protection based on deep learning
Face detection
Hi-PoE supported
IP67

Specs

SD6AL445XA-HNR
1/2,8” CMOS sensor, 4MP
H.265+ / H.265 / H.264+ / H.264 / MJPEG
Digital resolution: 4MP (2560x1440), 3MP (2048x1536), 1080P (1920x1080), 720P (1280x720), D1 (704x576), CIF (352x288)
Stream 1: 4MP (1~25 fps), 1080P, 1,3MP, 720P (1~50 fps)
Stream 2: D1, CIF (1~25 fps)
Stream 3: 1080P, 720P (1~25 fps)
Day/night mode with removable mechanical filter
Laser illumination: up to 550 meters
Minimum illumination: 0,005 lux F1.6 (color) / 0,0005 lux F1.6 (B/W), 0 lux IR On
45X optical zoom: 3,91 ~ 177,7 mm
Viewing angle: 70,3°~1,8°(H), 37°~1°(V), 69,3°~2°(D)
Focus control: auto, semiauto and manual
Automatic iris control
16X digital zoom
White balance: Auto, Indoor, Outdoor, Tracking, Manual, Sodium Lamp, Natural light, Light
Automatic and manual gain control
Backlight compensation (BLC, HLC)
WDR 120 dB
2D and 3D noise reduction
Digital defog
EIS
ROI supported
Motion detection supported
Privacy mask up to 24 zones supported
AI:
- SD6AL445XA-HNR
- Protección perimetral: Tripwire, intrusion detection (alarm supported with people/vehicle classification), abandoned/lost objects
- Autotracking supported
- Face detection: optimization; snapshots; high quality snapshots; attribute extraction: 6 attributes and 8 expressions
- Video metadata: Supports people detection, motor/non motor vehicles, snapshot support, high quality snapshots of motor vehicles
Horizontal positioner: 0° ~ 360° continuous
Vertical positioner: -20° ~ 90°, autoflip 180°
Manual speed: 0,1° ~ 200°/sec. (H), 0,1° ~ 120°/sec. (V)
Preset speed: 240°/sec. (H), 200°/sec. (V)
300 presets DH-SD, Pelco-D/P (automatic recognition)
5 patterns, 8 rounds (up to 32 presets per round), 5 scans
Audio: 1 in / 1 out
Alarm: 7 in / 2 out
RS485 port
MicroSD card slot up to 256GB (card is not included)
Network interface: RJ45 (10/100 Base-T)
Network protocols: IPv4, IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMPv1/v2c/v3 (MIB-2), DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, ARP, RTCP
Compatible with ONVIF S/G, CGI
Unicast / Multicast streaming method
Up to 19 users
Remote display on web browsers IE7+, Chrome42, Firefox52, Safari
Software management Smart PSS, DSS, DMSS, Easy4ip, IVSS
Compatible with IOS and Android
Power supply: 36V DC /2,23A
Consumption: 20W (36W with laser ON)
Hi-PoE supported
Working temperature: -40°C ~ +70°C
Humedad: <95%
IP67
Lightning-proof 8KV
Metal case
Dimensions: Ø240 x 382 (H) mm
Weight: 6,8 kg
Wall mount and power supply included
