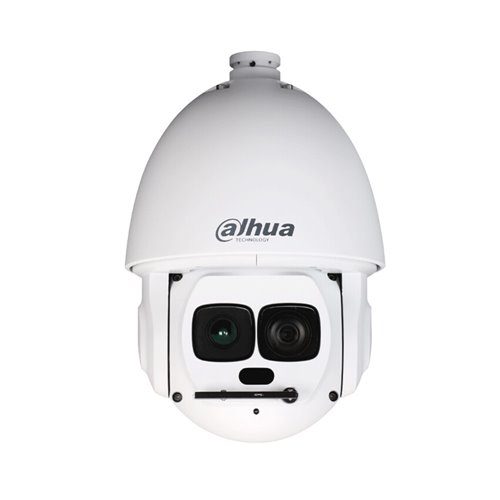

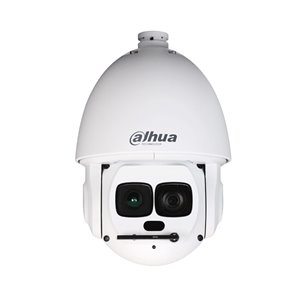

SD6AL433XA-HNR - StarLight IP Dahua 200 ° / sec AI s…

Features

    1 / 1.8 ”4 megapixel CMOS sensor
    Powerful 33X optical zoom
    StarLight technology
    4MP (2560x1440) at 25 ips
    Laser range of up to 550 meters
    Autotracking and perimeter protection based on deep learning
    Face detection
    SMD Plus
    Supports Hi-PoE
    Degree of protection IP67

specs

    1 / 1.8 ”4 megapixel CMOS sensor
    Compression formats H.265 + / H.265 / H.264 + / H.264 / MJPEG
    Digital Resolution: 4MP (2560x1440), 3MP (2048x1536), 1080P (1920x1080), 1.3MP (1280x960), 720P (1280x720), D1 (704x576), CIF (352x288)
    Stream 1: 4MP, 3MP, 1080P, 1.3MP, 720P (1 ~ 25/30 ips)
    Stream 2: D1, CIF (1 ~ 25/30 ips)
    Stream 3: 720P (1 ~ 25/30 ips)
    Day / night mode with removable mechanical filter
    Laser illumination: up to 550 meters
    0.001 lux F1.5 (color) / 0.0001 lux F1.5 (B / W), 0 lux Laser On
    33X Optical Zoom: 5.8 ~ 191.4mm
    Viewing angle: 60.1 ° ~ 3.1 ° (H), 35.3 ° ~ 1.8 ° (V), 67.9 ° ~ 3.6 ° (D)
    Automatic, semi-automatic and manual focus control
    Automatic, manual and fixed iris control
    16X digital zoom
    White Balance: Auto, Indoor, Outdoor, Tracking, Manual, Sodium Lamp, Natural Light, Street Light
    Automatic and manual gain control
    Backlight compensation (BLC, HLC)
    WDR 120 dB
    2D and 3D noise reduction
    Digital defog
    Digital Image Stabilizer (EIS)
    Supports ROI
    Supports video sensor
    Supports privacy masks of up to 24 zones
    Intelligent Video Detection (IVS) - Abandoned / Lost Objects
    Artificial intelligence:
        Perimeter Protection: Line Crossing Detection, Intrusion Detection (Supports Person / Vehicle Classification Alarm)
        Supports autotracking
        Supports face detection
        Supports SMD Plus
    Horizontal positioner: 0 ° ~ 360 ° continuous
    Vertical positioner: -20 ° ~ 90 °, autoflip 180 °
    Manual speed: 0.1 ° ~ 200 ° / sec. (H), 0.1 ° ~ 120 ° / sec. (V)
    Preset speed: 240 ° / sec. (H), 200 ° / sec. (V)
    300 presets DH-SD, Pelco-D / P (automatic recognition)
    5 patterns, 8 rounds (up to 32 presets per round), 5 scans
    1 audio input / 1 output
    7 alarm inputs / 2 outputs
    RS485 port
    MicroSD card slot up to 256GB (card not included)
    Network interface: RJ45 (10/100 Base-T)
    Network protocols: IPv4, IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, ARP, SNMPv1 / v2c / v3 (MIB-2), RTCP
    ONVIF S / G / T compliant, CGI
    Unicast / Multicast streaming method
    Up to 20 users
    Remote viewing with IE7 +, Chrome42, Firefox52, Safari browsers
    Smart PSS, DSS, DMSS, Easy4ip, IVSS management software
    Compatible with IOS and Android smartphone
    Power supply: 24V AC / 3A (± 25%)
    Consumption: 20W (32W with activated laser lighting)
    Supports Hi-PoE
    -40 ° C ~ + 70 ° C operating temperature
    Humidity: <95%
    Degree of protection IP67
    Lightning-proof 8KV
    Metal housing
    Dimensions: Ø240 x 382 (Al) mm
    Weight: 5.8 kg
    Includes wall bracket and power supply
