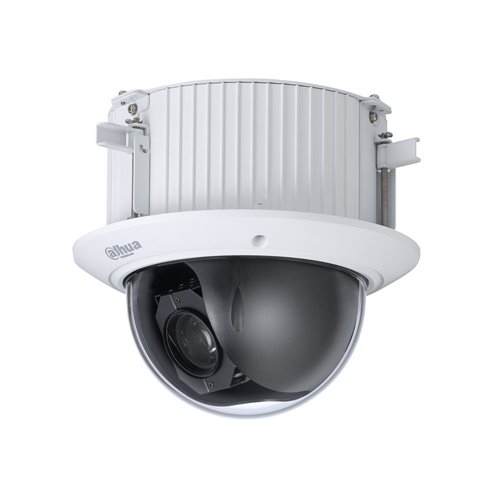

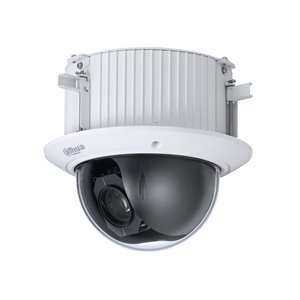

SD52C232-HC-LA - 4-in-1 day/night 350°/sec. motorize…





Specifications

1/2.8" Sony® STARVIS™ 2 megapixel CMOS Sensor
Digital resolution: 1080P (1920x1080), 720P (1280x720)
Frames per second: 25/30 fps @1080P, 25/30/50/60 fps @720P
4-in-1 video output: HDCVI/HDTVI/AHD/CVBS
0.005 lux F1.6 (colour) / 0.0005 lux F1.6 (B/W)
Removable mechanical filter
32X optical zoom: 4.5 ~ 144 mm
Angle of view: 60.14°~2.75°(H), 34.41°~1.54°(V), 68.23°~3.16°(D)
Auto, semi-automatic, and manual focus control
Auto and manual iris control
16X digital zoom
Picture modes: BLC, HLC, WDR 120dB, 2D/3D-NR, Electronic Defog
White balance with 8 modes
Automatic and manual gain control
Horizontal positioner: 0° ~ 360° continuous
Vertical positioner: 0° ~ 90°, autoflip 180°, manual speed: 0.1°~90°, autoflip 180°.
Manual speed: 0.1°~350°/sec. (H), 0.1°~250°/sec. (V)
Preset speed: 500°/sec. (H), 500°/sec. (V)
300 presets
DH-SD and Pelco-D/P protocols (automatic recognition)
5 patterns, 8 rounds of up to 32 presets each, 5 scans
Adjustable speed
RS485 port (1200 ~ 9600 bps)
1 audio input
2 alarm inputs / 1 alarm output
Power supply: 24V DC / 2.5A (±25%)
Power consumption: 9.35W (12.5W with fan and PTZ active)
Operating temperature range: -30°C ~ +60°C
Relative humidity: <95%.
Not suitable for outdoor use
Vandal-proof IK10
Lightning-proof 6KV
Dimensions: Ø198 x 176.6 mm
Weight: 2.2 kg
Power adapter included
