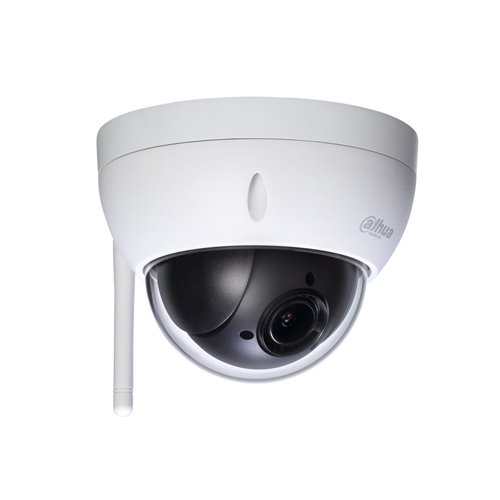

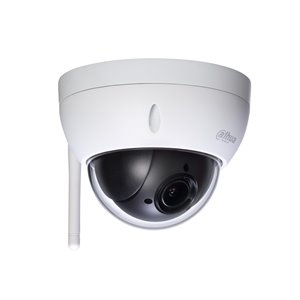

SD22404T-GN-W-S2 - Mini IP motorized dome of 100 ° / s…

Specifications

    Image Sensor 1/3 "4 Megapixel CMOS
    Resolution: 4MP (2592x1520), 3MP (2304x1296), 1080P (1920x1080), 720P (1280x720), D1 (704x576), CIF (352x288)
    H.265 and H.264 video compression
    Stream 1: 4MP, 3MP, 1080P, 720P (1 ~ 25 ips)
    Stream 2: D1, CIF (1 ~ 25 ips)
    Stream 3: 720P, D1, CIF (1 ~ 25 ips)
    Day / night mode with removable mechanical filter (ICR)
    0.05 lux F1.6 (color), 0.005 lux F1.6 (B / W)
    2.7 ~ 11mm motorized lens
    Viewing angle: 112.5 ° ~ 30 ° (H)
    Automatic and manual focus control
    16X digital zoom
    Imaging modes: BLC, HLC, WDR 120dB, 2D / 3D-DNR, Defog
    White balance with 5 modes
    Automatic and manual gain control
    Supports video sensor, regions of interest (ROI) and 24-zone privacy mask
    IVS Intelligence: Line crossing, intrusion, abandoned / lost items
    Face detection
    Horizontal positioner: 0 ° ~ 355 °
    Vertical positioner: 0 ° ~ 90 °
    Manual speed: 0.1 ° ~ 100 ° / sec. (H), 0.1 ° ~ 60 ° / sec. (V)
    Preset speed: 100 ° / sec. (H), 60 ° / sec. (V)
    300 presets
    DH-SD protocol
    8 rounds of up to 32 presets per round
    MicroSD card slot up to 256GB (card not included)
    Network interface: RJ45 (10 / 100M)
    WiFi: IEEE802.11a / b / g / n / ac, 2.4GHz
    Network protocols: IPv4 / IPv6, HTTP, HTTPS, SSL, TCP / IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS , Bonjour, 802.1x
    Remote viewing with browsers (IE, Chrome, Firefox and Safari) and IOS and Android smartphones
    Smart PSS, DSS and DMSS management software
    Interoperability: ONVIF S / G, API
    Power supply: 12V DC, 1.5A
    Consumption: 10W
    Operating conditions: -30 ° C ~ + 60 ° C, relative humidity <95%
    Degree of protection IP66
    IK10 vandal protection
    Metal housing
    Dimensions: Ø122 x 89 (Al) mm
    Weight: 660g
    Does not include power supply
