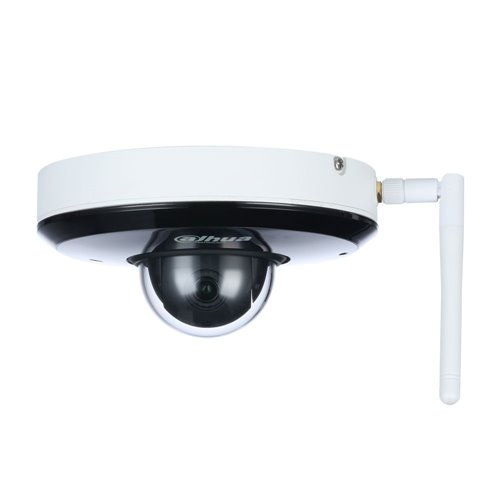

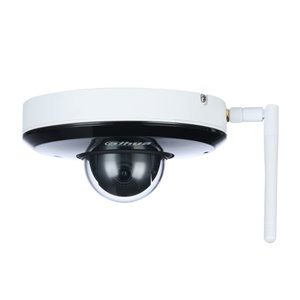

SD1A404XC-GNR-W - StarLight WiFi IP Dahua 70 ° / sec…

Characteristics

    1 / 2.8 ”Sony® STARVIS ™ CMOS sensor, 4 megapixel
    4X optical zoom
    StarLight technology
    4MP (2560x1440) at 25 ips
    Infrared range of up to 15 meters
    Face detection, people counting, perimeter protection
    SMD
    Supports 2.4G and 5G WiFi
    Degree of protection IP66
    IK08 Vandal Protection



Specifications

    1 / 2.8 ”Sony® STARVIS ™ CMOS sensor, 4 megapixel
    Compression formats H.265 + / H.265 / H.264 + / H.264 / MJPEG
    Digital Resolution: 4MP (2560x1440), 3MP (2048x1536), 1080P (1920x1080), 1.3MP (1280x960), 720P (1280x720), D1 (704x576), CIF (352x288)
    Stream 1: 4MP, 3MP, 1080P, 1.3MP, 720P (1 ~ 25 ips)
    Stream 2: D1, CIF (1 ~ 25 ips)
    Stream 3: 720P, D1, CIF (1 ~ 25 ips)
    Day / night mode with removable mechanical filter
    Infrared illumination: 3 LEDs, up to 15 meters
    Minimum illumination: 0.005 lux F1.8 (color) / 0.0005 lux F1.8 (B / W), 0 lux IR On
    4X optical zoom: 2.8 ~ 12mm
    Viewing angle: 96.9 ° ~ 31.6 ° (H), 51.4 ° ~ 17.8 ° (V), 116.2 ° ~ 36.4 ° (D)
    Automatic, semi-automatic and manual focus control
    Automatic iris control
    16X digital zoom
    White Balance: Auto, Indoor, Outdoor, Tracking, Manual, Sodium Lamp, Natural Light, Street Light
    Automatic and manual gain control
    Backlight compensation (BLC, HLC)
    True WDR (120 dB)
    2D and 3D noise reduction
    Digital defog
    Digital Image Stabilizer (EIS)
    Supports ROI
    Supports video sensor
    Supports privacy masks of up to 24 zones and up to 8 zones in the same view
    Artificial intelligence:
        People counting with reporting
        Perimeter protection: Line crossing detection, intrusion detection (supports alarm with classification of people / vehicles), filtering of false alarms caused by animals, leaf rustling, bright lights, etc.
        Supports face detection
        Supports SMD
    IVS intelligence:
        Event triggering: Video sensor, video masking, scene changes, network disconnection, IP conflict, unauthorized access, storage anomalies
        General Intelligence: Abandoned / Lost Objects
    Horizontal positioner: 0 ° ~ 355 °
    Vertical positioner: 5 ° ~ 90 °
    Manual speed: 0.1 ° ~ 70 ° / sec. (H), 0.1 ° ~ 30 ° / sec. (V)
    Preset speed: 80 ° / sec. (H), 40 ° / sec. (V)
    300 presets
    8 rounds (up to 32 presets per round)
    Speed ??setting
    1 audio input / 1 output
    MicroSD card slot up to 256GB (card not included)
    Incorporates 2.4G and 5G WiFi
    Network interface: RJ45 (10/100 Base-T)
    Network protocols: IPv4, IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMPv1 / v2c / v3 (MIB-2), DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, ARP, RTCP
    ONVIF, CGI compliant
    Unicast / Multicast streaming method
    Up to 20 users
    Remote viewing with IE, Chrome, Firefox, Safari browsers
    Management software Smart PSS, DSS
    Compatible with IOS and Android smartphone
    Power supply: 12V DC / 1.5A (3W, 8.5W with IR illumination on)
    -30 ° C ~ + 60 ° C operating temperature
    Humidity: ≤95%
    Degree of protection IP66
    IK08 Vandal Protection
    Lightning-proof 6KV
    Metal housing
    Dimensions: Ø128 x 65.4 (Al) mm
    Weight: 485g
    Includes stand or power supply
