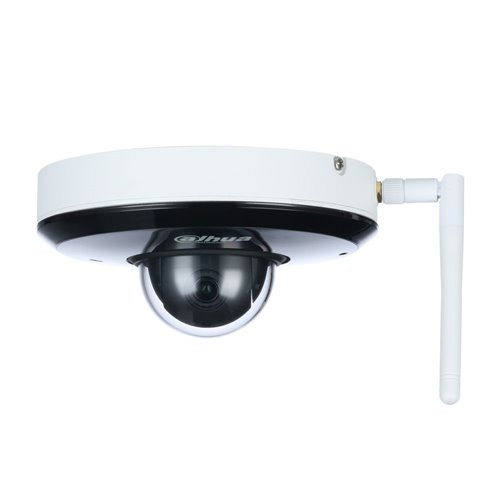

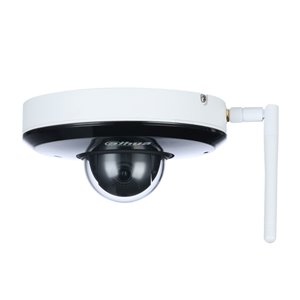

SD1A404XB-GNR-W - Dahua IP WiFi StarLight motor dome…

Features

• SD1A404XB-GNR-W
• 1/2,8” Sony® STARVIS™ CMOS sensor, 4 MP
• 4X optical zoom
• StarLight technology
• 4MP (2560x1440) at 25 fps
• IR range up to 15 meters
• Face detection, people counter, perimeter protection
• SMD
• WiFi 2,4G and 5G supported
• IP66
• IK08

Specs

• SD1A404XB-GNR-W
• 1/2,8” Sony® STARVIS™ CMOS sensor, 4MP
• H.265+ / H.265 / H.264+ / H.264 / MJPEG
• Digital resolution: 4MP (2560x1440), 3MP (2048x1536), 1080P (1920x1080), 1,3MP (1280x960), 720P (1280x720), D1 (704x576), CIF (352x288)
• Stream 1: 4MP, 3MP, 1080P, 1,3MP, 720P (1~25 fps)
• Stream 2: D1, CIF (1~25 fps)
• Stream 3: 720P , D1, CIF (1~25 fps)
• Day/night mode with removable mechanical filter
• IR illumination: 3 leds, up to 15 meters
• Minimum illumination: 0,005 lux F1.8 (color) / 0,0005 lux F1.8 (B/W), 0 lux IR On
• 4X optical zoom: 2,8 ~ 12 mm
• Viewing angle: 96,9°~31,6°(H), 51,4°~17,8°(V), 116,2°~36,4°(D)
• Focus control: auto, semiauto and manual
• Automatic Iris Control
• 16X digital zoom
• White balance: Auto, Indoor, Outdoor, Tracking, Manual, Sodium Lamp, Natural light, light
• Gain control: auto and manual
• Backlight compensation (BLC, HLC)
• WDR true (120 dB)
• 2D and 3D noise reduction
• Digital Defog
• EIS
• ROI supported
• Motion detection supported
• Privacy mask supported up to 24 zones and up to 8 zones on the same view
• AI:
  • SD1A404XB-GNR-W
  • Count people in the area; generate report
  • Perimeter protection: Tripwire and intrusion. Support alarm triggering by target types (human and vehicle). Support filtering false alarms caused by animals, rustling leaves, bright lights, etc.
  • Face detection supported
  • SMD supported
• IVS:
  • SD1A404XB-GNR-W
  • Event trigger: Motion detection, Video tampering, Scene changing, Network disconnection, IP address conflict, Illegal Access, Storage anomaly
  • General Intelligence: Object Abandoned/Missing
• Horizontal positioner: 0° ~ 355°
• Vertical positioner: 5° ~ 90°
• Manual speed: 0,1° ~ 70°/sec. (H), 0,1° ~ 30°/sec. (V)
• Preset speed: 80°/sec. (H), 40°/sec. (V)
• 300 presets
• 8 rounds (up to 32 presets per round)
• Speed adjustment
• Audio: 1 in / 1 out
• MicroSD card slot up to 256GB (card is not included)
• WiFi 2,4G and 5G incorporated
• Network interface: RJ45 (10/100 Base-T)
• Network protocols: IPv4, IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMPv1/v2c/v3 (MIB-2), DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, ARP, RTCP
• Compatible con ONVIF, CGI
• Unicast / Multicast streaming method
• Up to 20 users
• Remote display with IE, Chrome, Firefox, Safari
• Software management Smart PSS, DSS
• Compatible with IOS and Android
• Power supply: 12V DC /1,5A (3W, 8,5W with IR ON)
• Working temperature -30°C ~ +60°C
• RH: ≤95%
• IP66
• IK08
• Lightning-proof 6KV
• Metal case
• Dimensions: Ø128 x 65,4 mm
• Weight: 485 g
• Power supply and bracket is included
