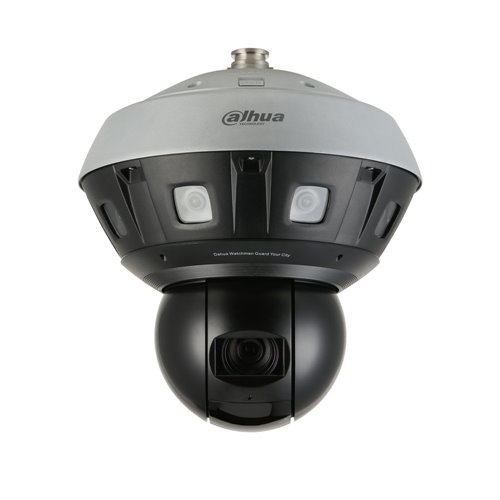

PSDW8842MP-H-A180-E5-D440 - Dahua STARLIGHT 240°/sec. panoramic…

SKU: PSDW8842MP-H-A180-E5-D440

incl. VAT€10828,80

Price incl. VAT: €10828,80

Ex. VAT: €8663,04

Total discount:

VAT: €2165,76

Dahua STARLIGHT 240°/sec. panoramic IP motorized dome with four 5mm fixed lens cameras + one 40X optical zoom PTZ camera with Smart IR 400m for outdoor use. 4 megapixels 1/1.8" CMOS sensor for the PTZ dome, 4 x 2MP 1/1.8" CMOS for the fixed cameras. Triple Stream. H.265/H.264/MJPEG format. ICR filter. AWB, AGC, BLC, HLC, 120dB real WDR, 3D-NR, defog, EIS, videosensor, privacy masks, ROI zones. Intelligent detection (IVS). 300 presets. 2 audio inputs / 2 audio outputs. 7 alarm inputs / 3 alarm outputs. MicroSD slot. Onvif, CGI, Milestone. IP66. 37V DC

Sold out / Not on stock

Back to: Dahua New

Product description: PSDW8842MP-H-A180-E5-D440

Description

WizMind

Panoramic camera

4 x 2 megapixel 1/1.8" CMOS sensors
Resolution: 4096x1800, 4800x1920, 3840x1680, 3200x1280, 2880x1264, 2048x900, 1920x832, 1600x640, 1280x560, 1024x452
Stream 1: 4096x1800 (1~25 fps)
Stream 2: 1920x832 (1~25 ips)
Stream 3: 4800x1920 (1~25 fps)
Removable mechanical filter
Minimum illumination: 0.001 lux (colour), 0.0002 lux (B/W)
5 mm fixed optics
Viewing angle: 180°(H), 84°(V)
White balance: Auto, Daylight, Streetlight, Outdoor, Manual, Regional Customisation
Automatic and manual gain control
Backlight compensation (BLC, HLC)
WDR 120dB
3D-NR noise reduction
4-zone ROI
4-zone video sensor
4-Zone Privacy Masking

Motorized camera

4 megapixel 1/1.8" CMOS sensor
Digital resolution: 2560x1440, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576, 704x480, 352x288, 352x240
Stream 1: 2560x1440 (1~25 ips)
Stream 2: 704x480 (1~25 fps)
Stream 3: 1920x1080 (1~25 fps)
Removable mechanical filter
Smart IR up to ≥400 meters
Minimum illumination: 0.001 lux (colour), 0.0001 lux (B/W)
40X optical zoom: 5.6 ~ 223 mm
Angle of view: 2.27°~61.4°(H), 1.30°~35.99°(V), 2.62°~68.18°(D)
Auto iris control
Auto White Balance, Indoor, Outdoor, Tracking, Manual, Sodium Lamp, Daylight, Street Light
Automatic and manual gain control
Backlight compensation (BLC, HLC)
WDR 120dB
3D-NR noise reduction
4-zone ROI
4-zone video sensor
8-zone privacy mask
Digital Image Stabilizer
Defog
Horizontal positioner: 0° ~ 360° continuous
Vertical positioner: -12° ~ 90°, auto flip 180° manual speed: 240°/sec.
Manual speed: 240°/sec. (H), 100°/sec. (V)
Remote optics reset
300 presets
5 patterns, 8 rounds (up to 32 presets per round), 5 scans
3D positioning

General

H.265, H.264, MJPEG video compression
IVS intelligence: Cross-line and intrusion detection
Audio compression G.711Mu, G.711A, G.726, AAC
2 audio inputs / 2 audio outputs
7 alarm inputs / 3 alarm outputs
Network interface: RJ45 (10/100/1000 Base-T)
Network Protocols: HTTP, TCP, ARP, RTSP, RTP, UDP, RTCP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, IPv4/v6, SNMP, QoS, UPnP, NTP
ONVIF (Profile S&G), CGI support
Up to 20 users
Remote viewing via IE7, Chrome42, Firefox52, Safari11 browsers
Slot for microSD card up to 512GB (card not included)
Power supply: 36V DC
Power consumption: 50.7W~77.7W
Storage temperature from 5°C ~ +40°C
Operating temperature from -40°C ~ +70°C
95% relative humidity
IP66 degree of protection
Metal and plastic housing
Dimensions Ø383 x 389.8 mm
Weight: 14.3 kg
