Specs

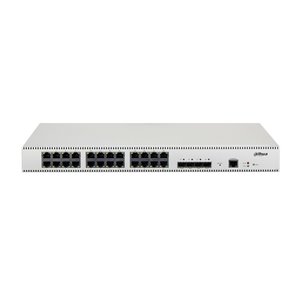

24 10/100/1000 Base-T RJ45 ports
4 SFP + 1000 / 10000M Base-X uplink ports
1 console port
128Gbps switching capacity
96Mpps packet transfer rate
Packet buffer memory: 32MB
MAC addresses: 32K
ARP table: 1K
IPv4 FIB: 4K
Flow control enabled by default
802.1Q standard VLAN
Network redundancy STP / RSTP / MSTP, ERPS
Static and dynamic link aggregation
Multiple-to-one port mirroring
Compatible with DHCP-Client, DHCP-Server, DHCP-Relay
Flow control: Half-duplex based on back pressure type control, Full duplex based on PAUSE frame
Security features: port-based MAC binding, IEEE802.1x port authentication
QoS: high and low priority, 802.1P, DSCP
Network management: WEB (http and https protocol), Telnet, SSH, compatible with SNMP V1 / V2C / V3
Static IP routing
Power supply: 100V ~ 240V AC, 0.8A
Operating temperature: -20 ° C ~ + 55 ° C
10% ~ 90% operating humidity
Lightning-proof 4KV common mode, 2KV differential mode
Dimensions: 440 (W) x 44 (H) x 300 mm
Weight: 3.15 kg
