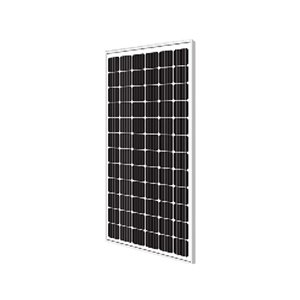

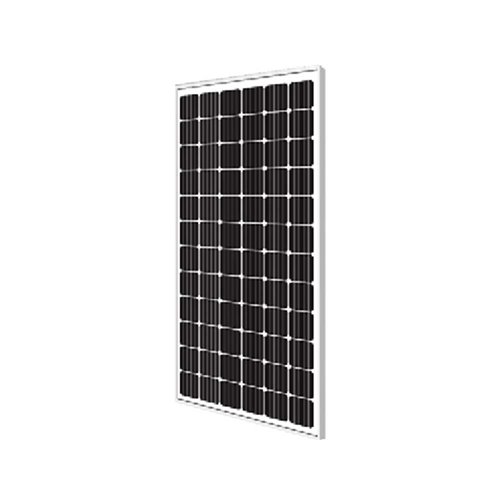

Specifications
Maximum power of 330Wp
Maximum power point voltage of 37.7VDC
Maximum power point current of 8.76A
45.8V open circuit voltage
Short circuit current of 9.26A
Solar cell efficiency of 19.20%.
Maximum energy temperature coefficient of -0.45%/°C
Open-circuit voltage temperature coefficient of -0.35%/°C
Short-circuit current temperature coefficient of 0.053%/°C
3.2 mm high transparency tempered glass
Waterproof white back sheet
Sealing material Ethylene-vinyl acetate (EVA) with high transparency
Anodised aluminium alloy frame
IP67 junction box with diode
MC4 compatible connector
72 monocrystalline silicon solar cells
Solar cell dimensions: 156.8 x 156.8 mm
Cable length 900 mm
Cable cross-sectional area of 4 mm2
Maximum mechanical load 2400Pa (wind pressure), 5400Pa (snow pressure)
Storage temperature from 0°C ~ +40°C
Operating temperature from -40°C ~ +85°C
Relative humidity of <95%.
Dimensions: 992 (W) x 1956 (H) x 40 mm
Net weight: 21 kg
Gross weight: 67.4 kg
Certifications: CE (EN61000-6-1, EN61000-6-3, EN61730-1, EN61730-2)
