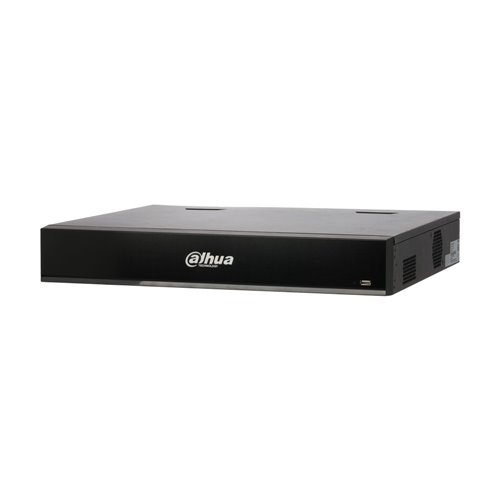

NVR5432-16P-I - Dahua 32 Channel 16MP IP NVR. Smart…

Specifications

    32 IP channels up to 16MP
    Video compression: Smart H.265 +, H.265, Smart H.264 +, H.264, MJPEG
    2 HDMI video outputs (HDMI2 4K) and 1 VGA output (1080P)
    Primary display output division: 1, 4, 8, 9, 16, 25, 36
    Secondary display output division: 1, 4, 8, 9, 16
    1 RCA input / 1 RCA audio output
    Two-way audio via RCA input / output
    Recording resolution: 16MP, 12MP, 4K / 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 1.3MP, 720P, D1
    Bandwidth: 320 Mbps (160 Mbps with AI mode enabled)
    Decoding capacity: 4 channels at 8MP (25 ips), 16 channels at 1080P (25 ips)
    Manual, calendar, alarm, motion detection, and IVS recording modes
    Alarm by video sensor, by privacy mask, by video loss, IP camera
    Playback of up to 16 channels
    16 alarm inputs / 6 outputs
    Internal capacity for 4 SATA III HDDs up to 10TB (sold separately)
    ESATA port
    New user interface with a simpler user experience
    Perimeter protection of up to 16 channels with 10 IVS rules per channel
    Face recognition of up to 4 channels of video stream
    Processing of up to 22 facial images per second
    Up to 20 facial databases with up to 10,000 images in total
    Supports smart search by metadata
    Supports ANR (automatic network replenishment technology): In case of network failure, images are recorded on the IP camera's SD card, which are transferred to the NVR once the network is restored
    Software and hardware watchdog
    Watermark to preserve the integrity of the videos
    RJ45 Fast Ethernet network port (10/100 / 1000Mbps)
    16 PoE ports (IEEE802.3af / at, ports 1 to 8 support ePoE and EoC) with an output power of 25.5W per port and a total of 150W
    Network protocols: HTTP, HTTPS, TCP / IP, IPv4 / IPv6, UPnP, SNMP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, IP Search (supports IP cameras DAHUA IP, DVR, NVS, etc.), P2P
    ONVIF 2.4, CGI and SDK compliant
    Remote access from web browser (IE9, Chrome, Firefox) and iPhone, iPad (iDMSS) and Android (gDMSS) devices
    Server Access local network and Internet
    Possibility of limiting user access to cameras in local and / or remote mode
    Can be remotely controlled by Joystick keyboard connected by TCP / IP
    Sending emails with attached photograph in alarm
    Send to FTP scheduled or in alarm
    Possibility of sending alarm, and being connected to video surveillance receiver software
    Possibility of fixed or dynamic IP through Dyndns service, NoIP, DDNS Evolution, etc.
    Communication ports: 2 USB 3.0 ports, 1 USB 2.0 port, 1 RS485 port, 1 RS232 port
    Power supply: 100V ~ 240V AC, 50 / 60Hz
    Consumption: ≤21.1W (not counting discs)
    Storage temperature 0 ° C ~ + 40 ° C
    -10 ° C ~ + 55 ° C operating temperature
    Dimensions: 440 (W) x 76 (H) x 411.1 mm
    Weight: 5 kg
    1.5U desktop or rack installation
