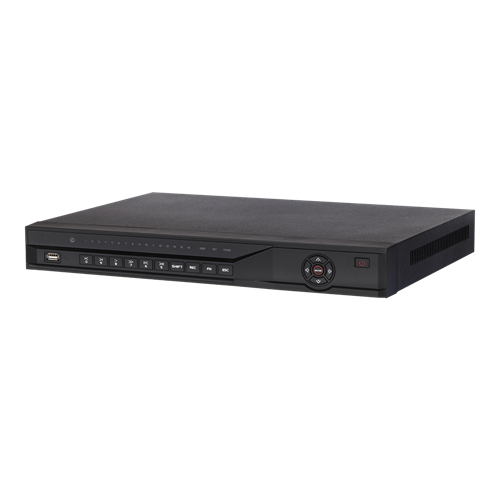

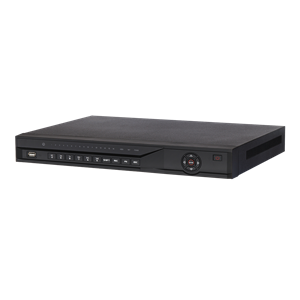

NVR508-8M-H2-P8 - 8 channel IP NVR. 4K/8MP. H.265/H.2…

SKU: NVR508-8M-H2-P8

incl. VAT€499,97

Price incl. VAT: €499,97

Ex. VAT: €399,97

Total discount:

VAT: €99,99

8 channel IP NVR. 4K/8MP. H.265/H.264. 2 way audio. 8 channel simultaneously display. 4K/8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 720P, etc. 200 Mbps. 1x HDMI (4K) and VGA (1080P) output. Alarm (4in/2out). 2 HDD SATA III. 1xRJ45 Gigabit. 1x USB2.0 + 1x USB 3.0. 220V AC. 8PoE+. Compatible with By Demes P2P, DDNS Demes, EVO VMS and EVO DSS.

Few left on stock

Back to: Dahua New

Product description: NVR508-8M-H2-P8

Description

- 8 channel IP NVR 4K/8MP H.265/ H.264 / MJPEG format with Poe switch incorporated
- Embedded 4-core processor
- Embedded LINUX OS
- Video encoding H.265/H.264
- 8 IP camera inputs
- VGA (1920x1080) and HDMI (up to 4K) video output
- Bidirectional Audio: 1 RCA input / 1 RCA output
- Output Division: 1, 4, 8, 9 (max 2ch @ 8 MP)
- Display resolution: 4K (3840x2160), 1080P (1920x1080), SXGA (1280x1024), 720P (1280x720), XGA (1024x768)
- Recording Resolution: 4K (3840x2160), 6MP (3072x2048), 5MP (2560x1920), 3MP (2048x1536), 1080P (1920x1080), 1.3MP (1280x960), 720P (1280x720), etc.
- Bit rate: 200 Mbps
- Bitrate: 16 kbps ~ 20 Mbps
- Motion detection: Grid 22x18 selectable, adjustable sensitivity on multiple levels, video loss detection and masking
- Alarm Channels: 4 inputs / 2 outputs
- Simultaneous diplay: 8 channels @ 1080p (max 2 ch @ 8MP)
- Storage: 2 SATA III ports up to 6TB per port (not included)
- Interface: 1x RJ45 (10/100 / 1000M)
- Network protocols: HTTP, TCP / IP, IPv4 / IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP Server, Alarm, IP Search
- Works with ONVIF Version 2.4
- Remote access up to 128 users
- Connections: 2 USB (1 USB 3.0 on the rear panel, 1 USB 2.0 front panel)
- Server LAN and Internet Access
- Independently configurable motion detection by camera
- Supports 3D positioning function (PTZ supported)
- Watchdog software and hardware
- Watermark to preserve the integrity of the videos
- Ability to limit user access to cameras in local mode and / or remote
- Masking areas, video loss alarm and camera masking
- Multilingual menu screen
- Display, configuration and remote control via TCP / IP with client software and Internet Explorer (also compatible with Firefox and Chrome browsers)
- email sended with attached photography when alarm is activated
- Scheduled FTP or alarmed
- Ability to send alarm, and be connected to receiving video surveillance software
- Display Simbian mobile phones, Blackberry, Windows Mobile, iPhone and Android
- Compatible with By Demes P2P, DDNS Demes, EVO VMS and EVO DSS
- Possibility of fixed or dynamic IP using Dyndns service, noip, DDNS Evolution, etc.
- Power supply: 100V ~ 240V CA, 50/60 Hz
- 8 PoE+ ports
- PoE consumption: 25.5W max per port, 80W total
- Consumption: <9.6 W
- Operating temperature: -10º C ~ + 55º C
- Relative humidity: 10 ~ 90%
- Dimensions: 375 x 327.5 x 53 mm
- Weight: 2.6 kg (without HDD)
