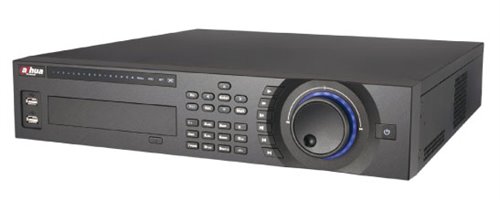

NVR4832 - NVR IP 32 channel. H.264/MJPEG. Pla…

- NVR IP 32 channel format H.264/MJPEG
- Dual Core Processor
- Embedded LINUX Operating System
- Video Encoding H.264 and MJPEG
- High speed Internet transmission
- 32 IP camera inputs
- Video out BNC, VGA and HDMI
- Two-way audio: 1 input RCA / RCA 1 output
- Output Division: 1, 4, 8, 9, 16
- Display resolution: 1080P (1920x1080), SXGA (1280x1024), 720P (1280x720), XGA (1024x768)
- Recording Resolution: 5MP (2560x1920), 3MP (2048x1536) 1080P (1920x1080), 720P (1280x720), D1 (704x576)
- Bit rate: 200 Mbps
- Bitrate: ~ 8192 Kbps 48
- Simultaneous playback of 4, 8, 16 channels
- Motion Detect: Grid 22x18 selectable, adjustable sensitivity at various levels, video loss detection and masking
- Alarm Channels: 16 in / 4 out
- Storage: 8 SATA ports (8 or 6 HDD HDD + 1 DVD-RW, not included) to 32TB supports mirroring / redundant
- Network interface: 2 RJ45 ports (10/100/1000M)
- Network protocols: HTTP, TCP / IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search
- Works as ONVIF Version 2.3
- Remote access for up to 128 users
- Connections: 3 USB, 1 RS485, 1 RS232, 1 eSATA
- Server local network and Internet access
- Includes IR remote control and USB mouse, plus the ability to control them via remote keyboard (Joystick) connected by TCP / IP or RS-485
- The computer is scalable, can work in various resolution settings and speed
- Independent configurable motion detection by camera
- Control of multiprotocol RS485 domes
- Supports 3D positioning function (compatible PTZ domes)
- USB ports for external devices
- Watchdog software and hardware
- Watermark to preserve the integrity of the videos
- Ability to limit user access to cameras in local mode and / or remote
- Masking areas, video loss alarm and camera concealment
- Multilanguage Menu Display
- Vision, configuration and remote control via TCP / IP with client software and Internet Explorer (also compatible with Firefox and Chrome browsers)
- eMails sended with attached photography when alarm is activated
- FTP delivery scheduled or alarm
- Ability to send alarm, and be connected to video surveillance software receiver
- Display phones: Simbian, Blackberry, Windows Mobile, iPhone and Android
- Possibility of using fixed or dynamic IP Dyndns service noip, DDNS Evolution, etc.
- Power supply: 100 ~ 240V AC / 40W (Diskless)
- Operating temperature: -10°C ~ +55°C
- Relative humidity: 10 ~ 90%
- Dimensions: 440 x 460 x 89 mm (2U rackmount)
- Weight: 6.5 kg (without HDD)
